Control Valve Body Cleaning and Inspection
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

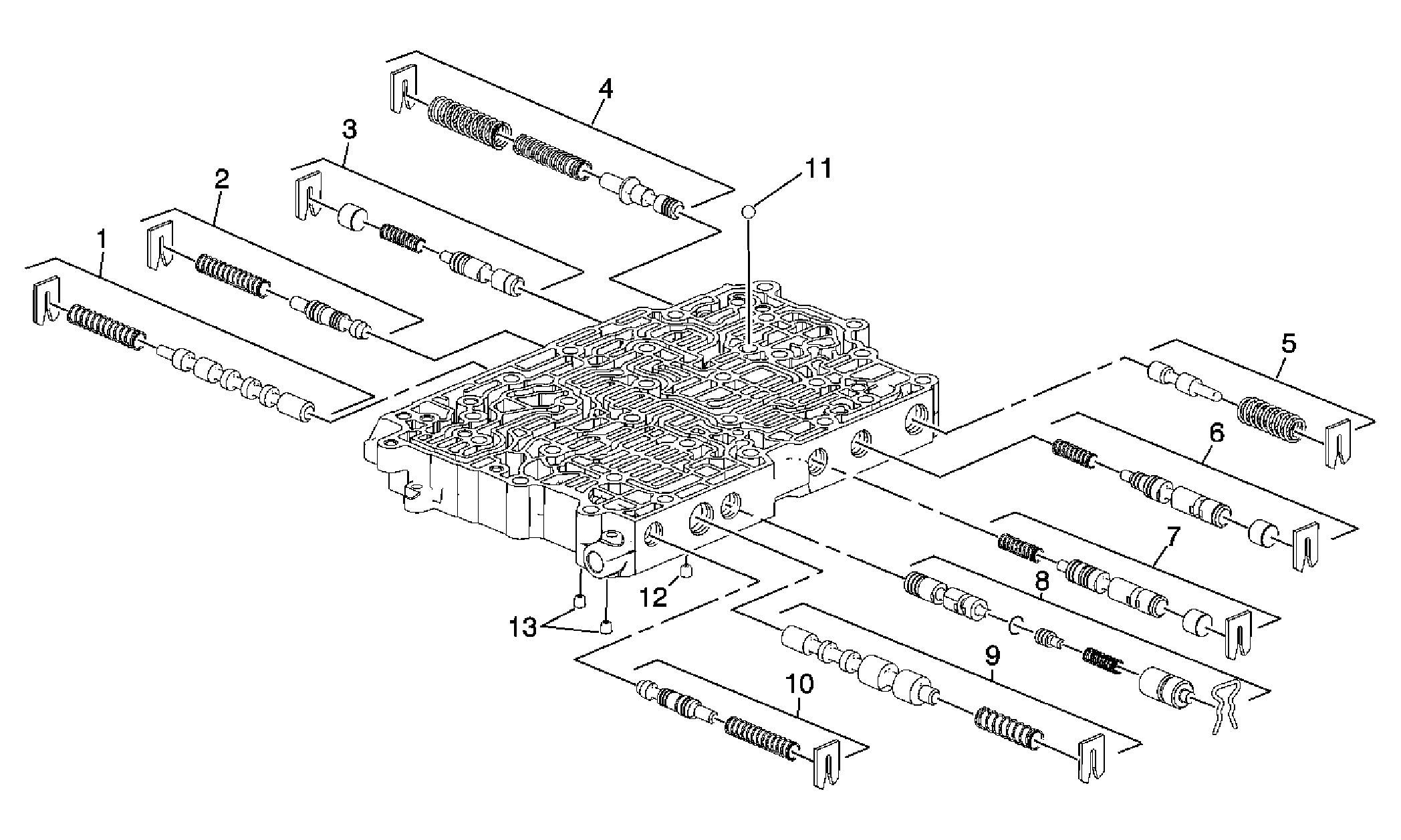

| Callout | Component Name |
|---|---|
| 1 | Shift Solenoid Valve Train |
| 2 | Variable Hi and 2-3-4 Clutch and Drive Motor/Generator Stator Cooling Regulator Boost Valve Train |
| 3 | A/Trans Torque Dampener Bypass Clutch Valve Train |
| 4 | Actuator Feed Limit Valve Train |
| 5 | Cooler Feed Limit Valve Train |
| 6 | 1-3 Reverse Clutch and Generator/Drive Motor Stator Cooling Regulator Valve Train |
| 7 | Variable Hi and 2-3-4 Clutch and Drive Motor/Generator Stator Cooling Regulator Valve Train |
| 8 | Variable Low and 1-2 Reverse and 4th Clutch and Drive Motor/Generator Stator Cooling Regulator Valve Train |
| 9 | Shift Solenoid Valve Train |
| 10 | 1-2 Reverse and 4th Clutch Regulator Boost Valve Train |
| 11 | Control Valve Body Ball Check Valve Train |
| 12 | Modulated Fluid Pressure Orifice |
| 13 | Modulated Fluid Pressure Orifice |
