Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

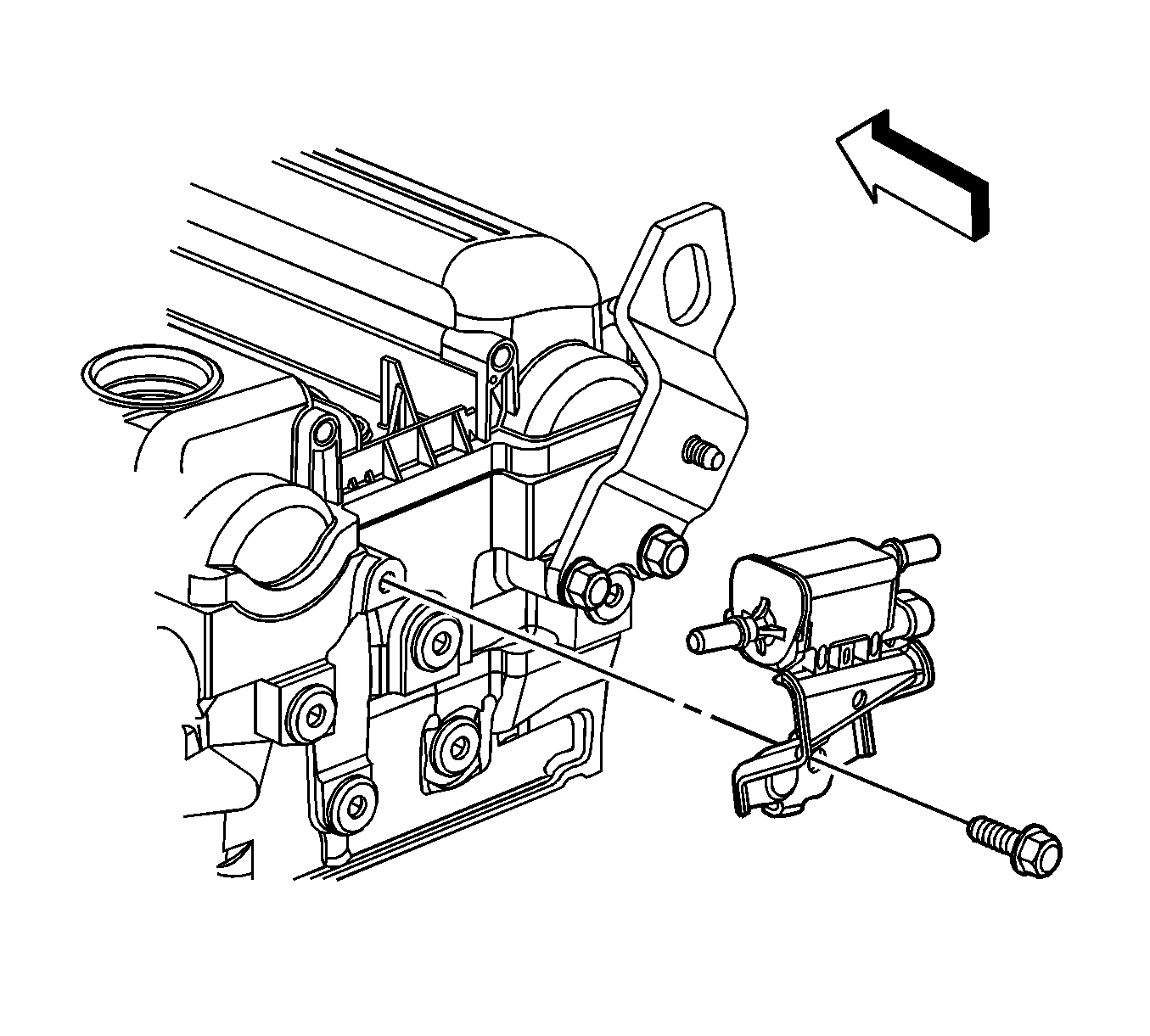

    Fig 1: EVAP Canister Purge Valve
    GM1578478Courtesy of GENERAL MOTORS CORP.
  1. Install the EVAP canister purge valve to the bracket.
  2. Position the EVAP canister purge valve with bracket to the cylinder head.
    3. CAUTION: Refer to Fastener Caution .
  3. Install the EVAP canister purge valve bracket bolt.

    Tighten:  Tighten the bolt to 25 N.m (18 lb ft).

    4. Fig 2: EVAP Canister Purge Valve Tube
    GM1571757Courtesy of GENERAL MOTORS CORP.
  4. Connect the EVAP canister purge valve tube. Refer to Plastic Collar Quick Connect Fitting Service .
  5. Connect the chassis EVAP vapor line to the EVAP canister purge valve. Refer to Plastic Collar Quick Connect Fitting Service .

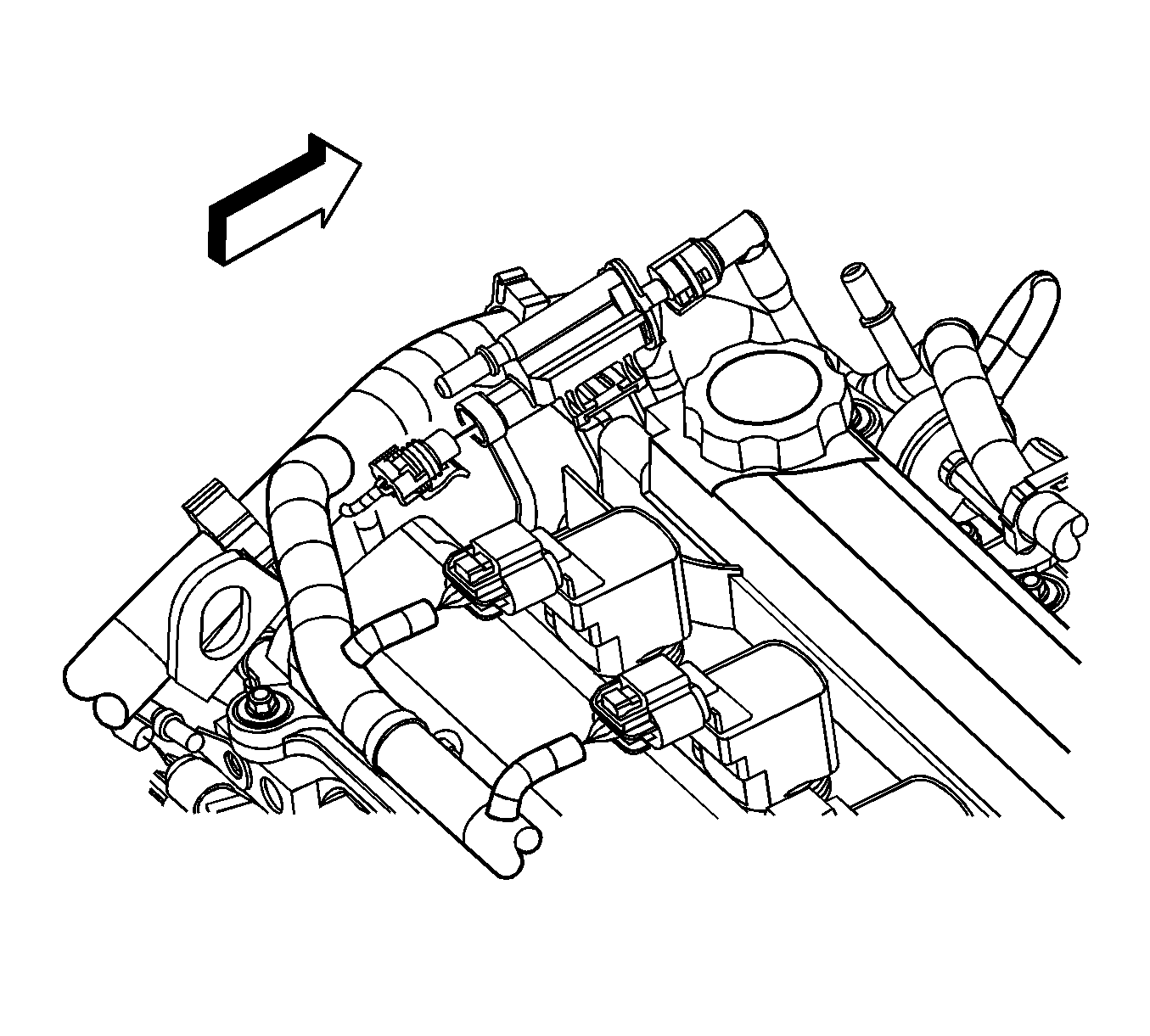

    6. Fig 3: Locating EVAP Canister Purge Valve Electrical Connector
    GM1578477Courtesy of GENERAL MOTORS CORP.
  6. Connect the engine wiring harness electrical connector to the EVAP canister purge valve.
  7. Install the intake manifold cover. Refer to Intake Manifold Cover Replacement .
