Removal Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: The high pressure accumulator (HPA) and the chambers of the brake modulator assembly to which it attaches, store brake fluid at extremely high pressures. Fluid pressure must be relieved before attempting to service the HPA. Ensure that the recommended procedures are followed to relieve system pressure, including using the manual pressure release steps. Failure to properly follow procedures to depressurize the system may result in personal injury.
WARNING: Refer to Brake Fluid Irritant Warning .
CAUTION: Always connect or disconnect the wiring harness connector from the EBCM/EBTCM with the ignition switch in the OFF position. Failure to observe this precaution could result in damage to the EBCM/EBTCM.
NOTE: The ignition must be in the OFF position, without pausing at ACCESSORY, and without applying the brake pedal to ensure the brake modulator and high pressure accumulator (HPA) pressure relief occurs. This process will take approximately 1-3 minutes.
  1. Turn the ignition to OFF, without pausing at ACCESSORY, and without applying the brake pedal.

    Remove the ignition key.

  2. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  3. Clean all dirt and debris from the brake pressure modulator valve (BPMV) assembly and the brake pipe fittings.
  4. Fig 1: Brake Modulator Manual Pressure Relief Valve
    GM2192976Courtesy of GENERAL MOTORS CORP.
    NOTE: To ensure brake modulator and HPA pressure relief has occurred, the manual pressure relief valve must be opened momentarily.
  5. Loosen the brake modulator manual pressure relief valve (1) 1/4 turn counterclockwise.
  6. Seat, but do not tighten, the manual pressure relief valve.

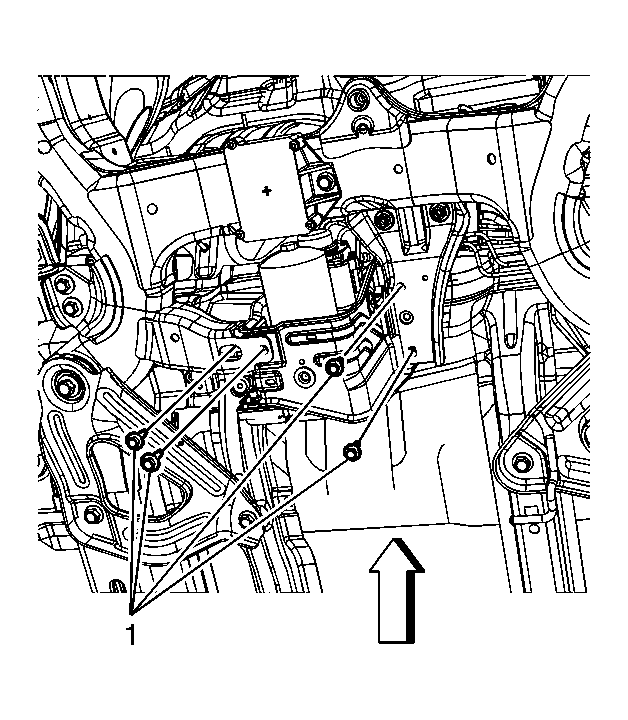

  7. Fig 2: BPMV Bracket Bolts
    GM2193332Courtesy of GENERAL MOTORS CORP.
  8. Remove the BPMV bracket bolts (1).
  9. Carefully slide the electronic hydraulic control unit rearward.
  10. Lower the assembly slightly and support with heavy mechanics wire or equivalent.
  11. Disconnect the electronic brake control module (EBCM) electrical connector.

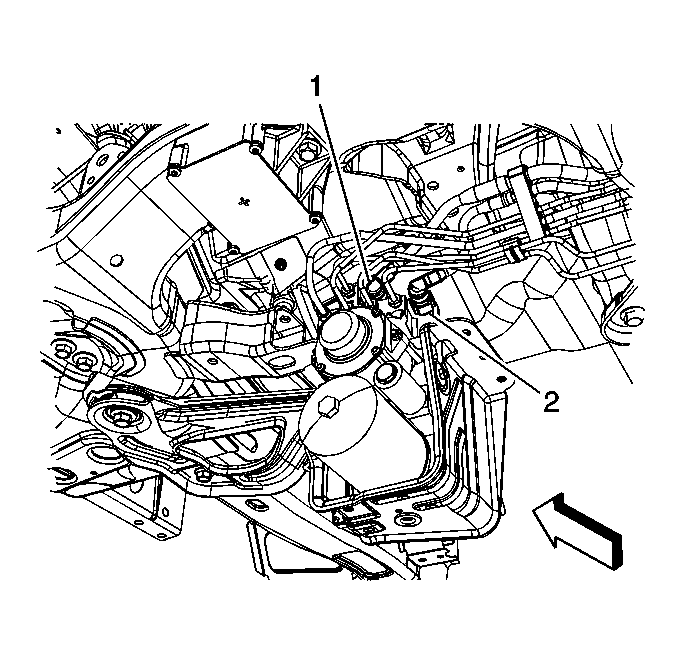

  12. Fig 3: BPMV Supply Hose Quick Connect And BPMV Return Hose Quick Connect
    GM2192967Courtesy of GENERAL MOTORS CORP.
  13. Disconnect the BPMV supply hose quick connect (1).

    Cap the BPMV inlet port and plug the supply hose to prevent brake fluid loss and contamination.

  14. Disconnect the BPMV return hose quick connect (2).

    Cap the BPMV outlet port and plug the return hose to prevent brake fluid loss and contamination.

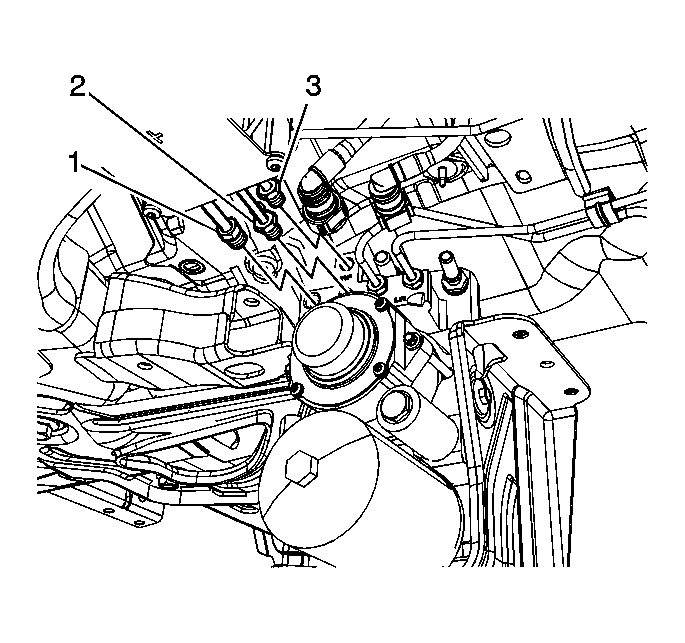

  15. Fig 4: Primary Brake Pipe Fitting, Left Front Brake Pipe Fitting And Right Front Brake Pipe Fitting
    GM2192968Courtesy of GENERAL MOTORS CORP.
  16. Disconnect the primary brake pipe fitting (1).

    Cap the brake pipe fitting and plug the BPMV inlet port to prevent brake fluid loss and contamination.

  17. Disconnect the left front brake pipe fitting (2).

    Cap the brake pipe fitting and plug the BPMV outlet port to prevent brake fluid loss and contamination.

  18. Disconnect the right front brake pipe fitting (3).

    Cap the brake pipe fitting and plug the BPMV outlet port to prevent brake fluid loss and contamination.

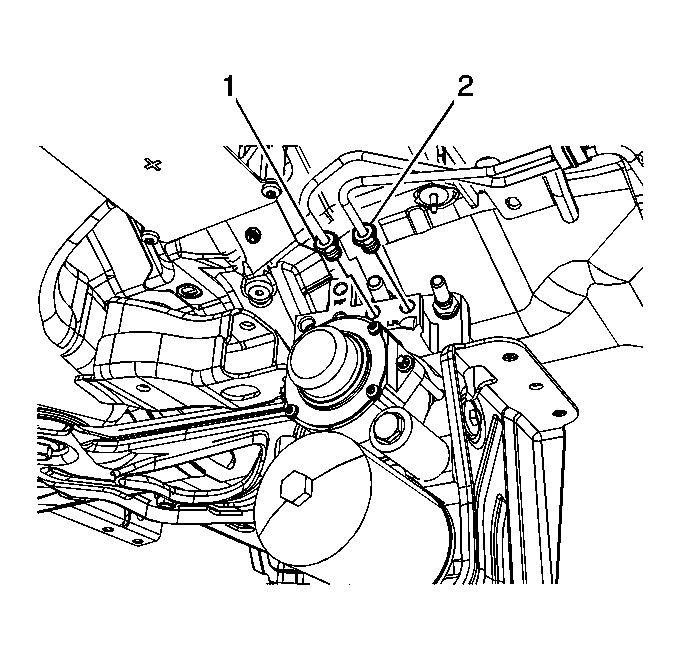

  19. Fig 5: Right Rear Brake Pipe Fitting And Left Rear Brake Pipe Fitting
    GM2192969Courtesy of GENERAL MOTORS CORP.
  20. Disconnect the right rear brake pipe fitting (1).

    Cap the brake pipe fitting and plug the BPMV outlet port to prevent brake fluid loss and contamination.

  21. Disconnect the left rear brake pipe fitting (2).

    Cap the brake pipe fitting and plug the BPMV outlet port to prevent brake fluid loss and contamination.

  22. Remove the BPMV module and bracket assembly from the vehicle.
  23. Place the BPMV module and bracket assembly on a clean work surface.
  24. Fig 6: BPMV Bolts
    GM2192970Courtesy of GENERAL MOTORS CORP.
  25. Remove the 2 BPMV bolts (1).
  26. Fig 7: BPMV Module Assembly And Bracket
    GM2192971Courtesy of GENERAL MOTORS CORP.
  27. Remove the BPMV module assembly from the bracket (1).
  28. Remove the sleeves and insulators from the BPMV module, if necessary.
  29. Fig 8: EBCM Bolts
    GM2192972Courtesy of GENERAL MOTORS CORP.
  30. If replacing the BPMV, loosen but do not remove the EBCM bolts (1).
  31. Fig 9: EBCM
    GM2192973Courtesy of GENERAL MOTORS CORP.
    NOTE: Do not pry the EBCM from the BPMV. The EBCM must be pulled back evenly.
  32. Using the loosened bolts as a guide, carefully pull the EBCM (1) evenly from the BPMV to release the electrical connectors.
  33. Fig 10: EBCM Bolts
    GM2192977Courtesy of GENERAL MOTORS CORP.
  34. Remove the EBCM bolts (1).
  35. Fig 11: EBCM
    GM2192978Courtesy of GENERAL MOTORS CORP.
  36. Remove the EBCM (1).
