Removal Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place the park brake lever in the released position.
  2. Disable the supplemental inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling .
  3. Remove the front floor console. Refer to Front Floor Console Replacement .
    4. Fig 1: Park Brake Warning Lamp Switch Electrical Connector
    GM1876516Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the park brake warning lamp switch electrical connector (1).

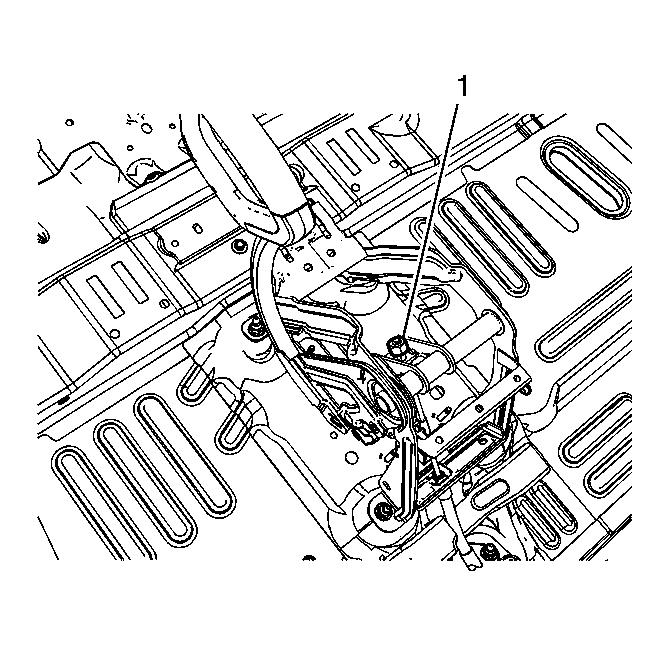

    5. Fig 2: Park Brake Cable Adjustment Nut
    GM1876517Courtesy of GENERAL MOTORS CORP.
  5. Using ONLY hand tools, loosen the park brake cable adjustment nut (1).
    6. Fig 3: Rear Park Brake Cables
    GM1876518Courtesy of GENERAL MOTORS CORP.
  6. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  7. Release the left rear park brake cable (1) and the right rear park brake cable (2) from the equalizer.
  8. Lower the vehicle.
    9. Fig 4: Front Park Brake Cable Guide Nuts
    GM1876519Courtesy of GENERAL MOTORS CORP.
  9. Remove the 2 front park brake cable guide nuts (1).
    10. Fig 5: Park Brake Lever Assembly Nuts
    GM1876520Courtesy of GENERAL MOTORS CORP.
  10. Remove the 4 park brake lever assembly nuts (1).
  11. Remove the park brake lever assembly from the vehicle while guiding the front park brake cable and equalizer through the floor panel.
