Parking Brake Actuator Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

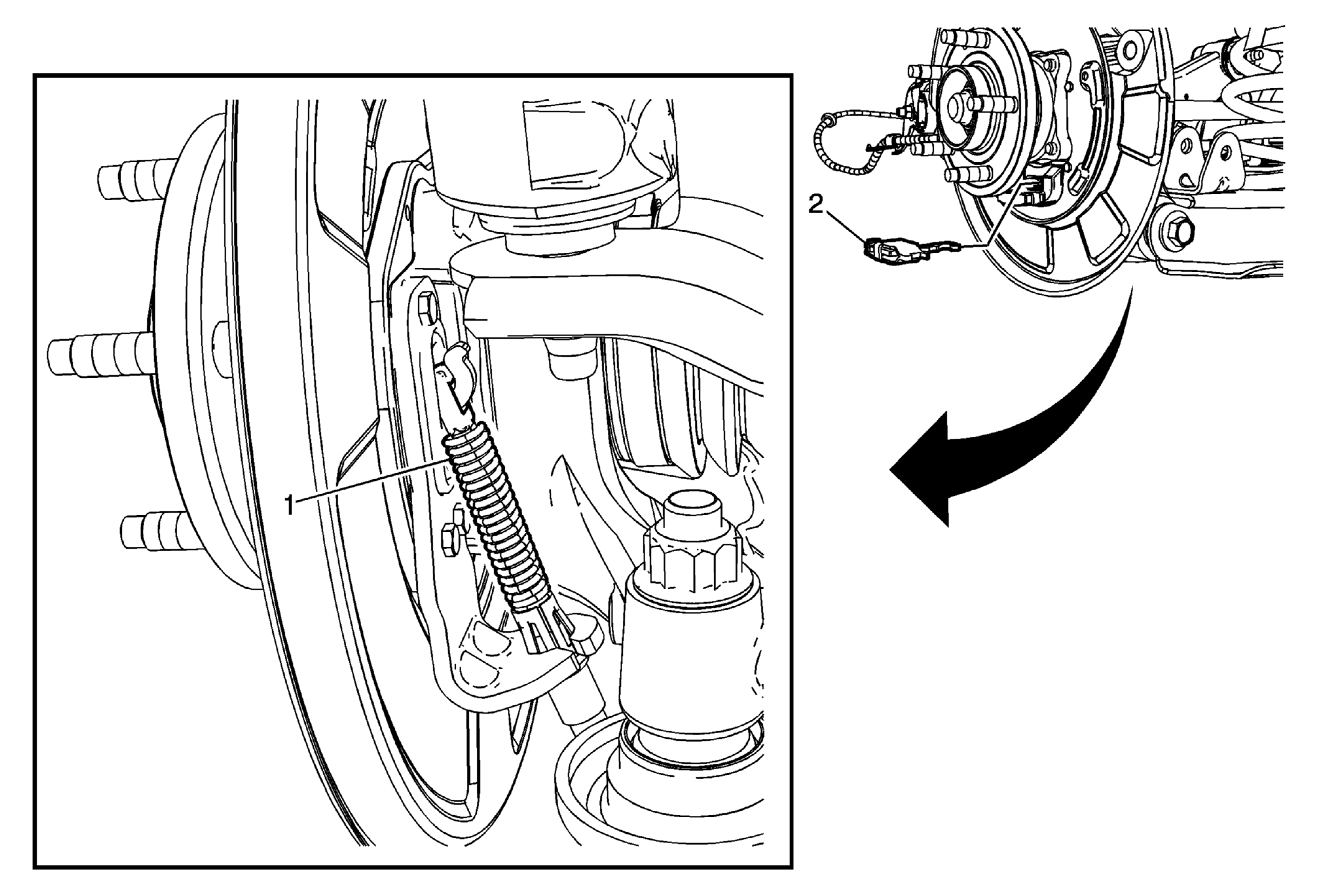

Fig 1: View Of Parking Brake Actuator

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
WARNING: Refer to Brake Dust Warning . Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation . Remove the park brake shoes. Refer to Parking Brake Shoe Replacement .
1	Park Brake Cable Eye Procedure: Disconnect the park brake cable eye from the actuator lever.
2	Parking Brake Actuator Procedure: Adjust the park brake. Refer to Parking Brake Adjustment .

Callout

Component Name

WARNING: Refer to Brake Dust Warning .

Preliminary Procedures

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation .
Remove the park brake shoes. Refer to Parking Brake Shoe Replacement .

Park Brake Cable Eye
Procedure:
Disconnect the park brake cable eye from the actuator lever.

Parking Brake Actuator
Procedure:
Adjust the park brake. Refer to Parking Brake Adjustment .
