Cooling Fan and Shroud Replacement (HP5)

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

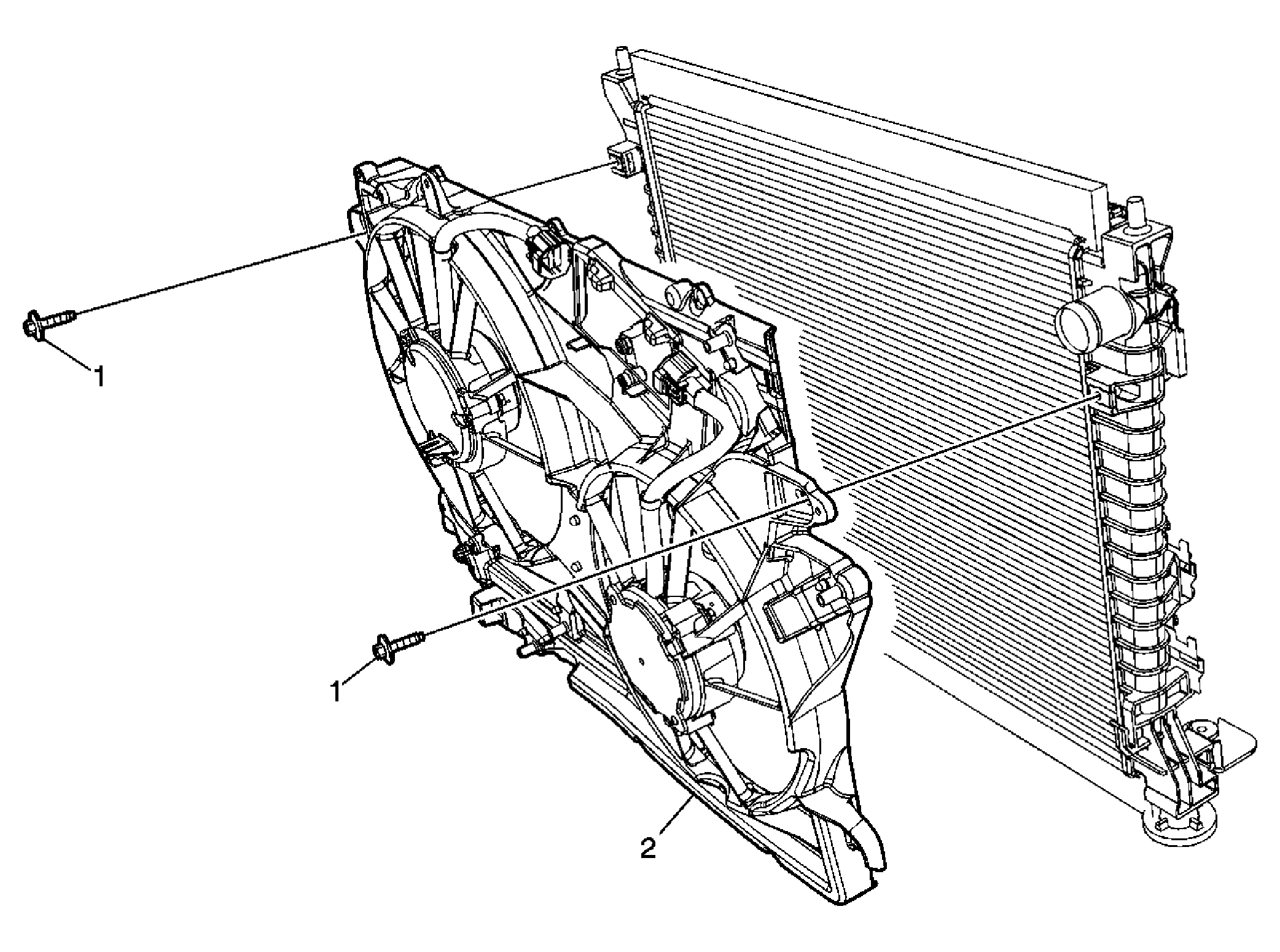

Fig 1: Cooling Fan and Shroud

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Drain the cooling system. Refer to Fuel Injector Sight Shield Replacement (LCS) Remove underhood electrical block. Refer to Underhood Electrical Center or Junction Block Replacement (HP5) Disconnect electrical connectors from cooling fan control module. Reposition radiator. Refer to Radiator Replacement (With HP5)
1	Cooling Fan and Shroud Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 8 N.m (71 lb in)
2	Cooling Fan and Shroud

Callout

Component Name

Preliminary Procedures

Drain the cooling system. Refer to Fuel Injector Sight Shield Replacement (LCS)
Remove underhood electrical block. Refer to Underhood Electrical Center or Junction Block Replacement (HP5)
Disconnect electrical connectors from cooling fan control module.
Reposition radiator. Refer to Radiator Replacement (With HP5)

Cooling Fan and Shroud Bolt (Qty: 2)

CAUTION: Refer to Fastener Caution .

Tighten: 8 N.m (71 lb in)

Cooling Fan and Shroud
