Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

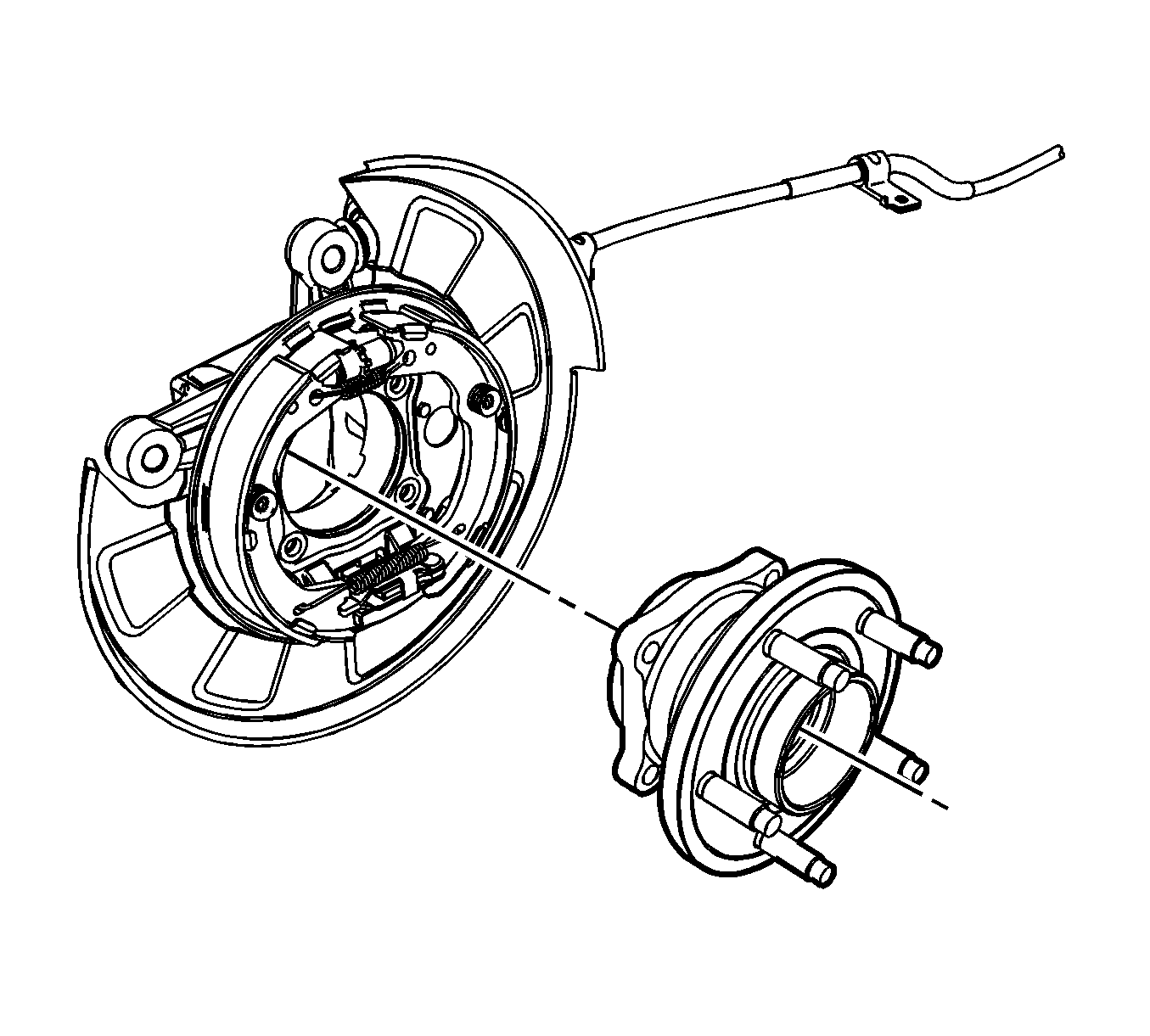

    Fig 1: Wheel Bearing
    GM1827475Courtesy of GENERAL MOTORS CORP.
  1. Position the wheel bearing to the knuckle.

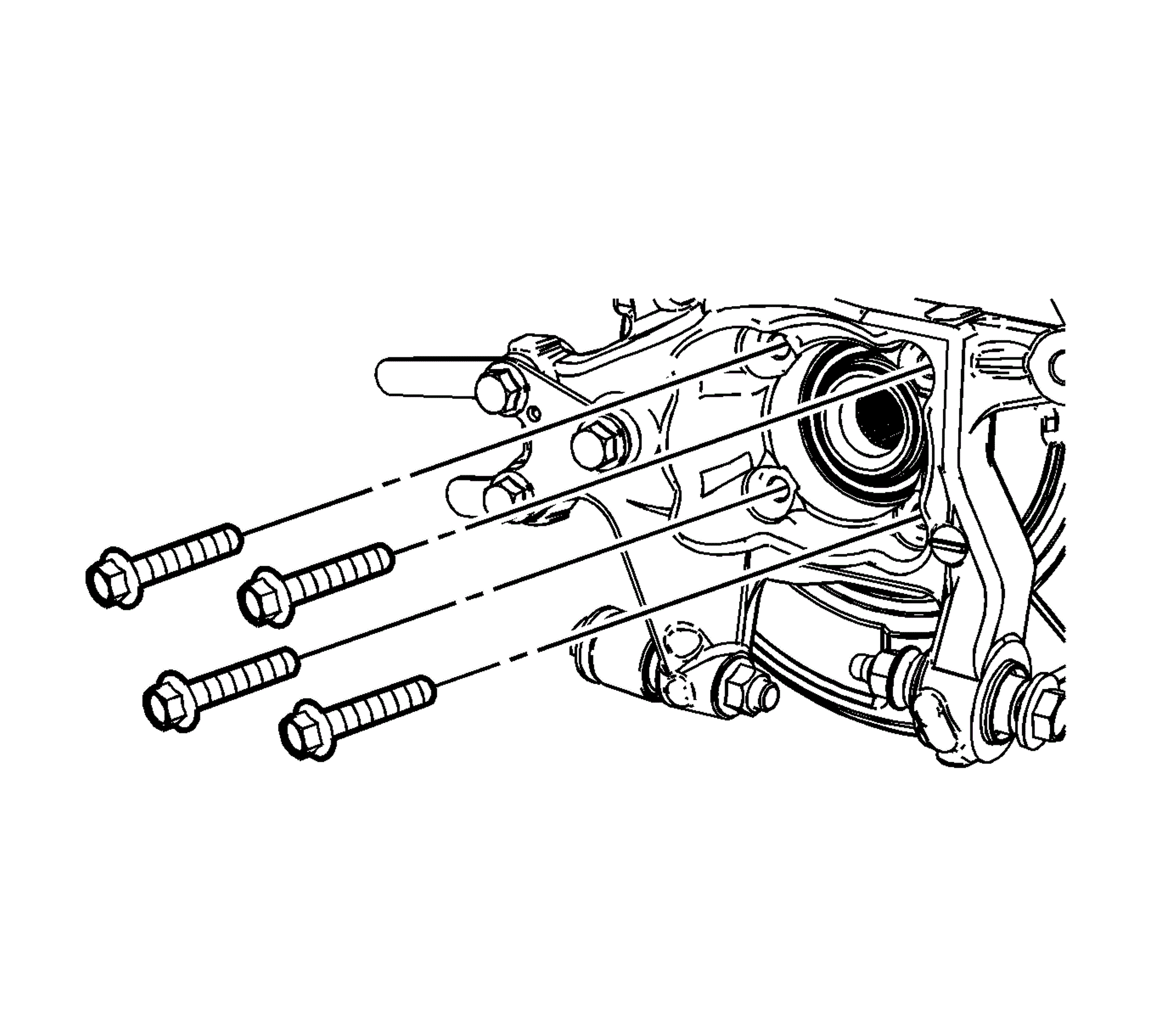

    2. Fig 2: Wheel Bearing Bolts
    GM1827448Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  2. Install the 4 wheel bearing bolts and tighten to 75 N.m (55 lb ft).

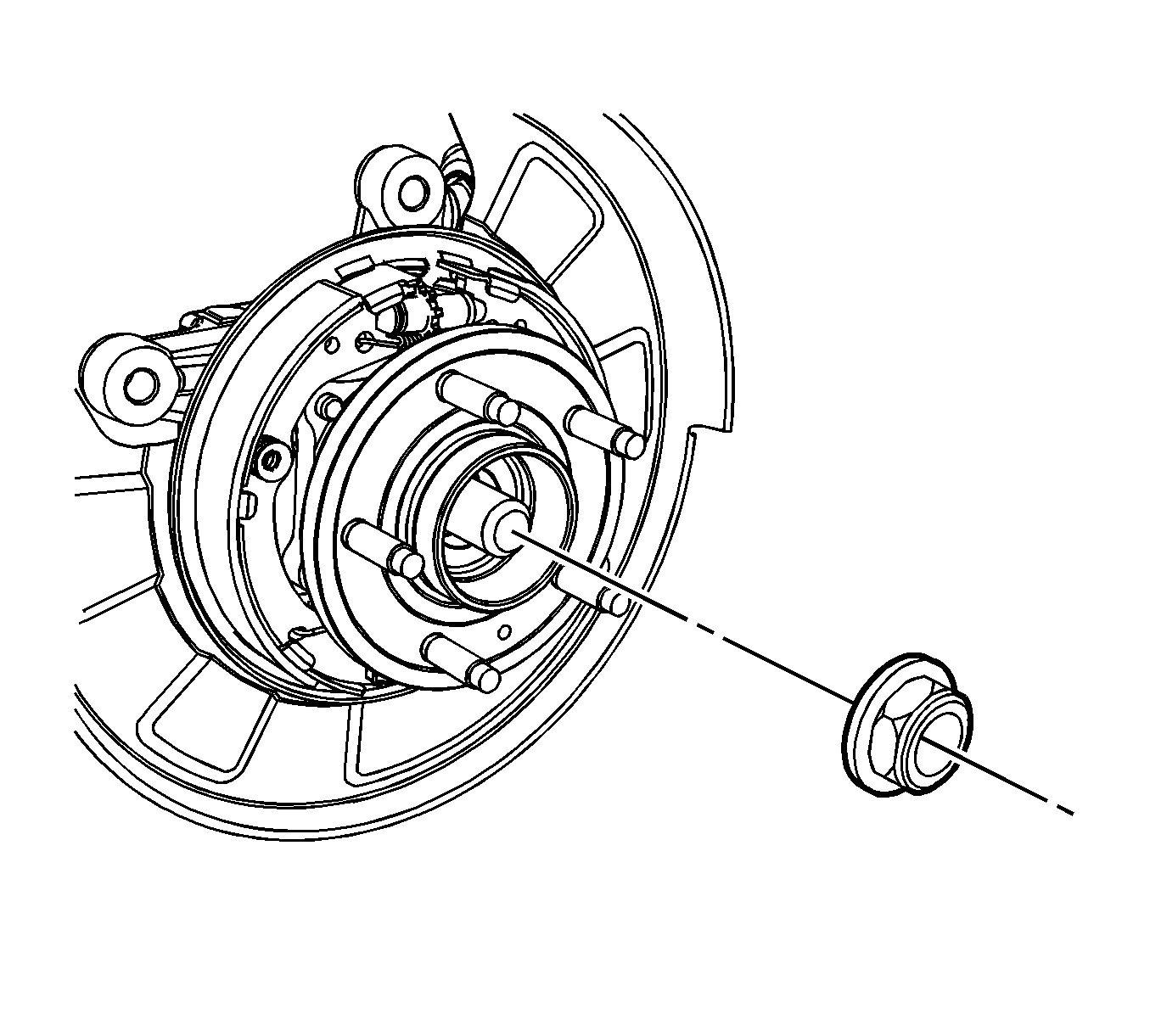

    3. Fig 3: Rear Wheel Driveshaft Nut
    GM1827444Courtesy of GENERAL MOTORS CORP.
  3. If equipped with AWD, install the rear wheel driveshaft nut and tighten to 205 N.m (151 lb ft).
  4. Install the wheel speed sensor. Refer to Rear Wheel Speed Sensor Replacement .
  5. Install the brake rotor. Refer to Rear Brake Rotor Replacement .
  6. Install the rear tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  7. Lower the vehicle.
