Removal Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Locate the connector position assurance (CPA) on the connector body and pull the CPA out. The CPA is on the wire harness side of connector.
  2. Disconnect the connector from the component.

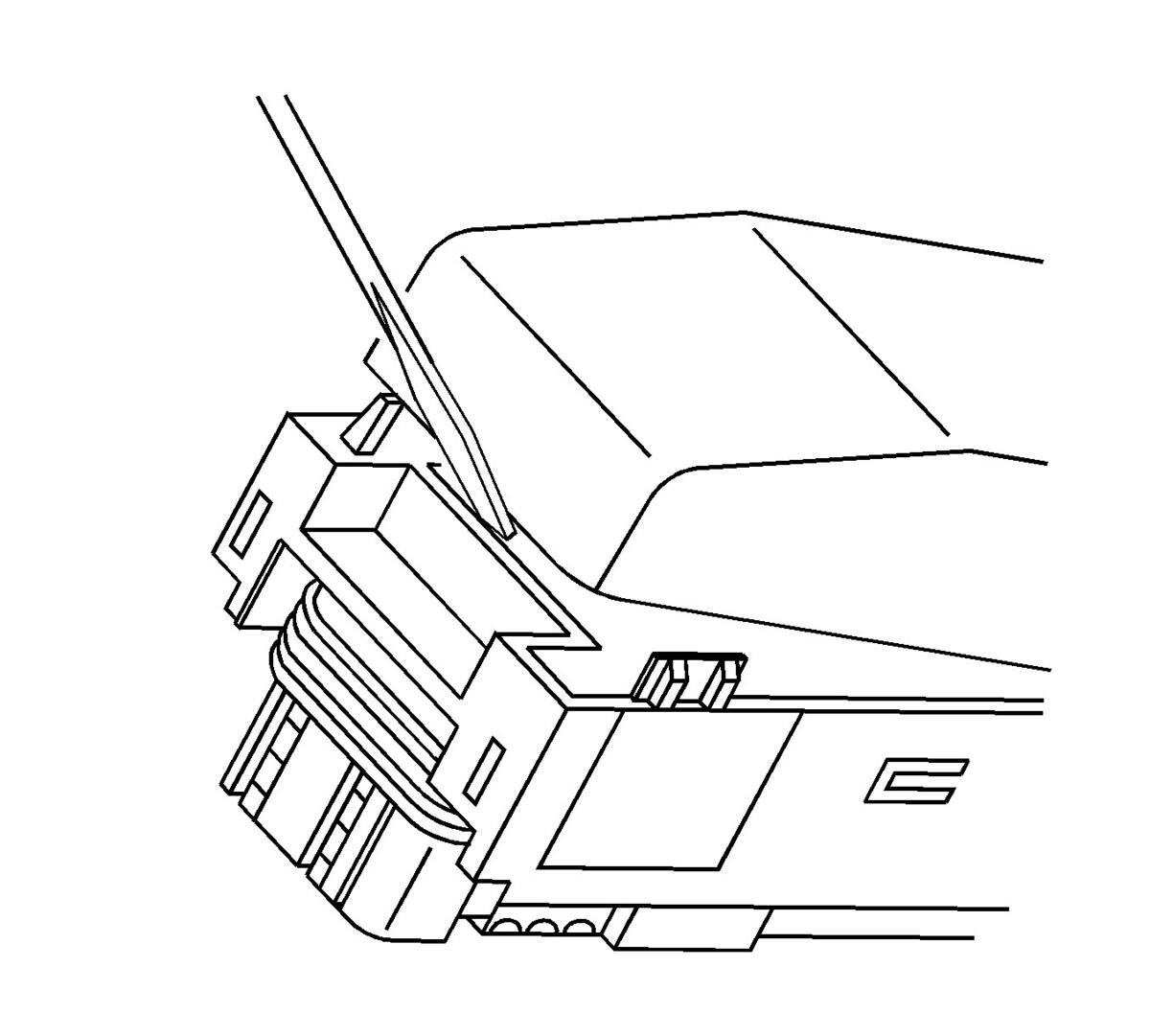

    3. Fig 1: Prying Off Dress Cover
    GM1263409Courtesy of GENERAL MOTORS CORP.
  3. Use a small flat-bladed tool to gently pry off the dress cover by inserting the tool under the cover opposite the harness side and prying up.
  4. Remove the cover.

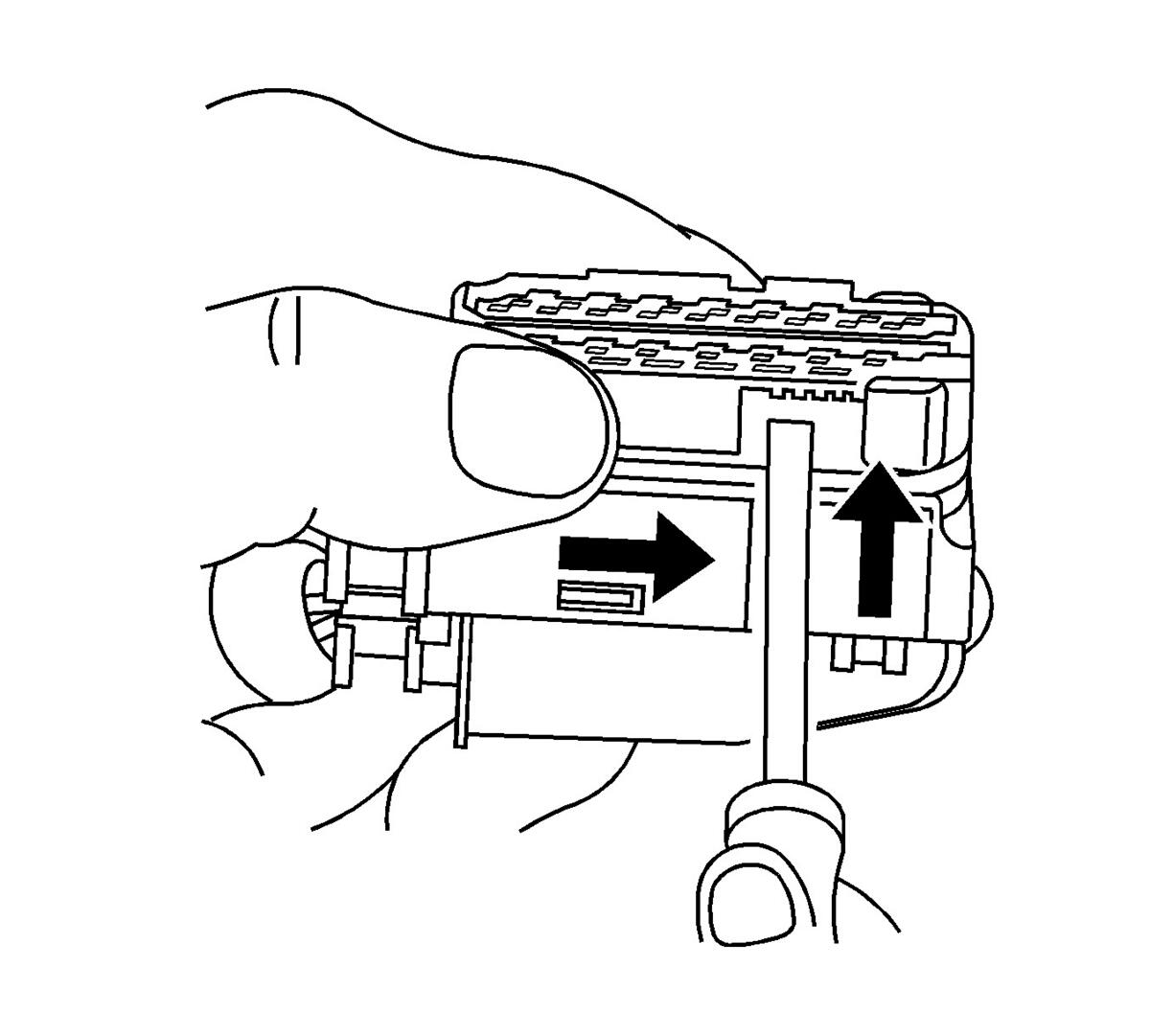

    5. Fig 2: View Of Terminal Position Assurance (TPA)
    GM1263511Courtesy of GENERAL MOTORS CORP.
  5. Using a small flat-bladed tool, push on the side of the nose piece retainer while pushing the nose piece forward with your thumb. This will release the terminal position assurance (TPA).

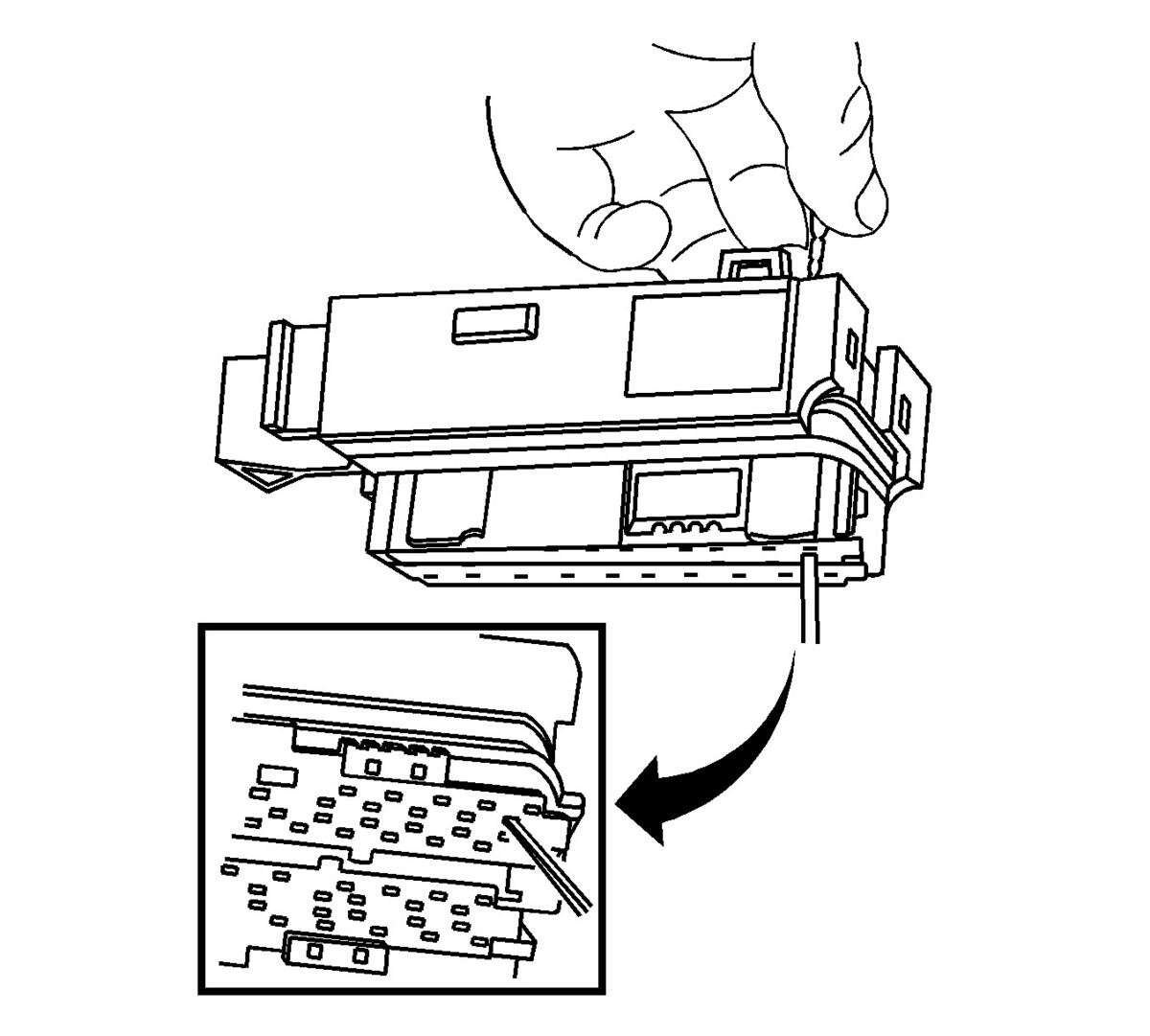

    6. Fig 3: Inserting J 38125-12A Into Terminal Release Cavity
    GM1263568Courtesy of GENERAL MOTORS CORP.
  6. Insert the J 38125-12A into the corresponding terminal release cavity. The release cavities are the 2 center rows of cavities on one half of the connector.
    7. Fig 4: Pulling Wire Out Of Back Of Connector
    GM1263581Courtesy of GENERAL MOTORS CORP.
  7. Pressing the J 38125-12A tool in the release cavity of the terminal you are removing, gently pull the wire out of the back of the connector. Always remember never use force when pulling a terminal out of a connector. See the release tool cross reference in the Reference Guide of the J-38125  to ensure that the correct release tool is used.
