Drive Motor Battery Coolant Cooler Cover Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

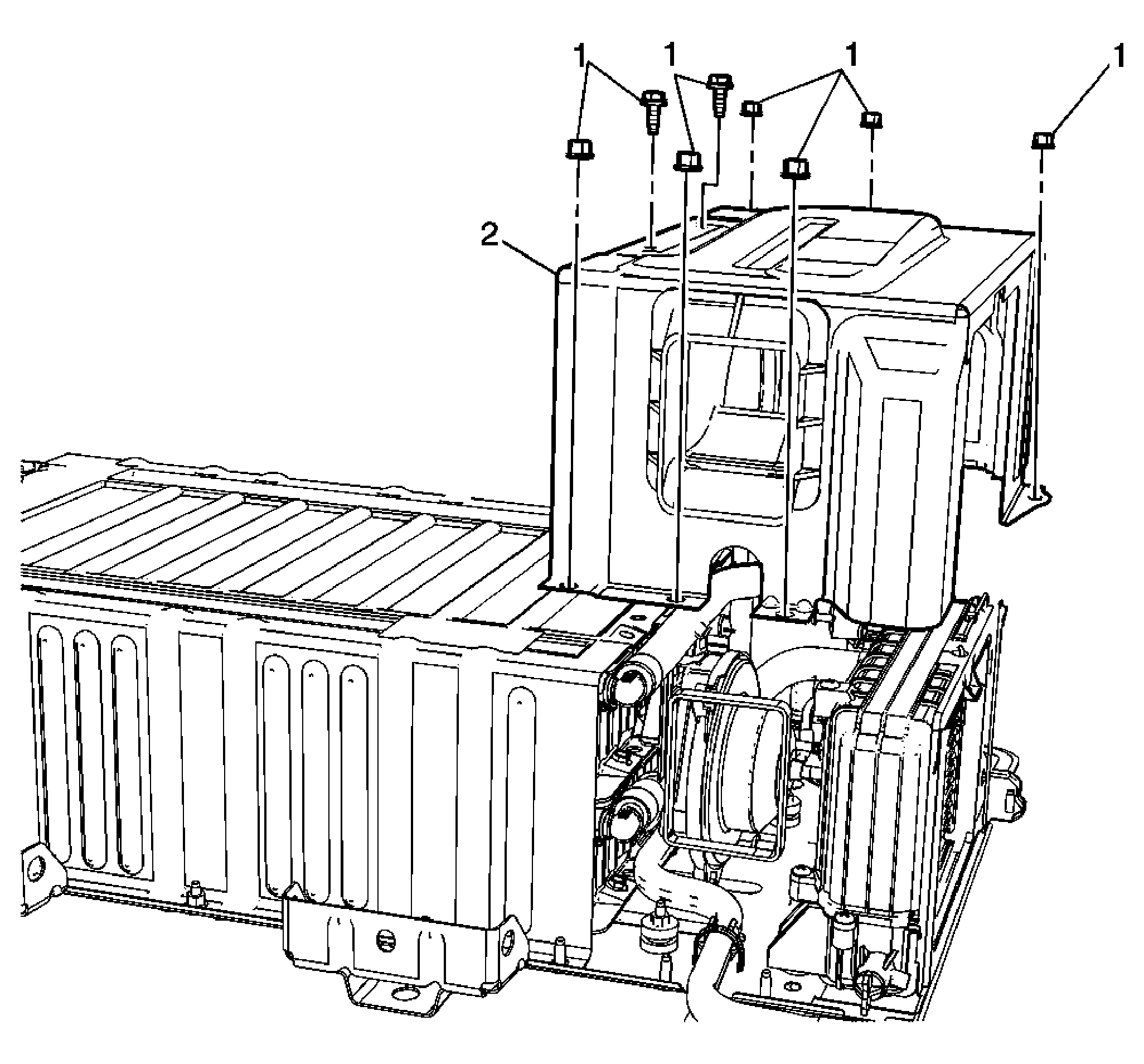

Fig 1: Drive Motor Battery Coolant Cooler Cover

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Review the high voltage safety information prior to performing the High Voltage Disabling procedure. Refer to High Voltage Safety . Disable the high voltage system. Refer to High Voltage Disabling . Remove the rear outlet duct. Refer to Drive Motor Battery Cooling Rear Air Outlet Duct Replacement .
1	Drive Motor Battery Coolant Cooler Cover Fasteners (Qty: 8) CAUTION: Refer to Fastener Caution . Tighten: 9 N.m (80 lb in)
2	Drive Motor Battery Coolant Cooler Cover Procedure: Enable the high voltage system. Refer to High Voltage Enabling .

Callout

Component Name

Preliminary Procedure

Review the high voltage safety information prior to performing the High Voltage Disabling procedure. Refer to High Voltage Safety .
Disable the high voltage system. Refer to High Voltage Disabling .
Remove the rear outlet duct. Refer to Drive Motor Battery Cooling Rear Air Outlet Duct Replacement .

Drive Motor Battery Coolant Cooler Cover Fasteners (Qty: 8)

CAUTION: Refer to Fastener Caution .

Tighten: 9 N.m (80 lb in)

Drive Motor Battery Coolant Cooler Cover
Procedure:
Enable the high voltage system. Refer to High Voltage Enabling .
