Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

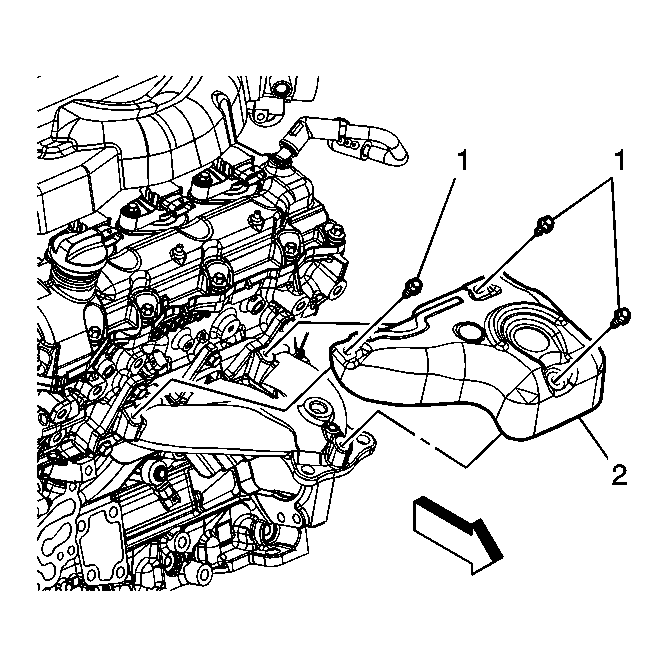

    Fig 1: Exhaust Manifold heat shield
    GM1888020Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  1. Install the exhaust manifold heat shield (2).
  2. Install the exhaust manifold heat shield bolts (1) and tighten to 22 N.m (16 lb ft).

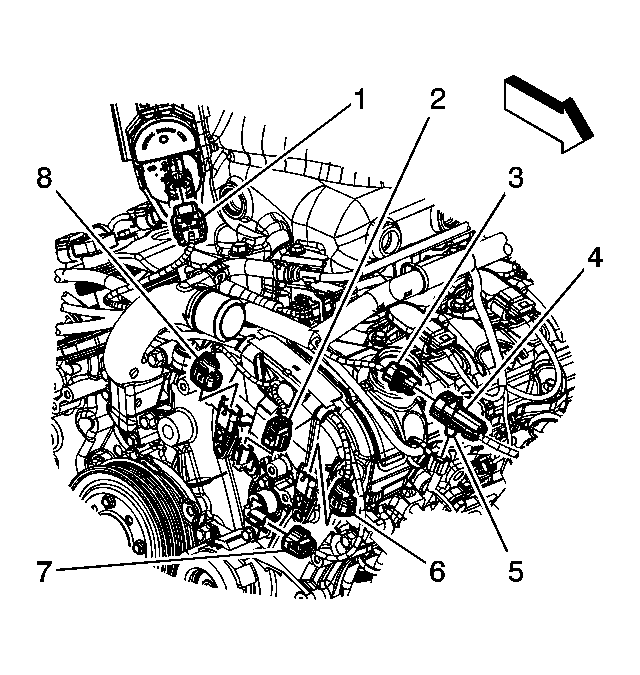

    3. Fig 2: Identifying Engine Wiring Harness Electrical Connector, HO2S Electrical Connector & Retainer
    GM1836024Courtesy of GENERAL MOTORS CORP.
  3. Connect the engine harness electrical connector (3) to the HO2S electrical connector (4).
  4. Install the HO2S electrical connector retainer (5) to the retainer clip.
  5. Install the fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement (LY7) or Fuel Injector Sight Shield Replacement (LCS) .
