Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

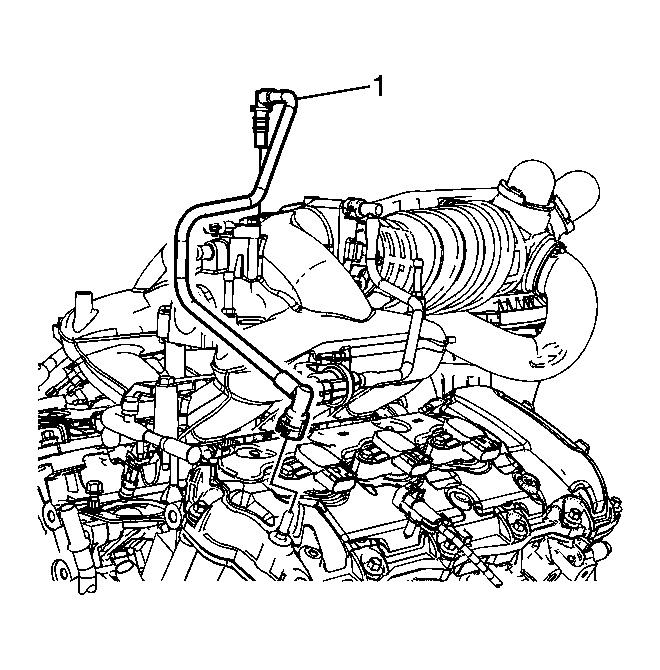

    Fig 1: Positive Crankcase Ventilation Fresh Air Pipe
    GM1897768Courtesy of GENERAL MOTORS CORP.
  1. Connect the PVC foul air pipe to the PVC valve.
  2. Connect the PVC fresh air pipe (1) to the upper intake manifold.
  3. Install the engine cover. Refer to Fuel Injector Sight Shield Replacement (LY7)  or Fuel Injector Sight Shield Replacement (LCS) .
