Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

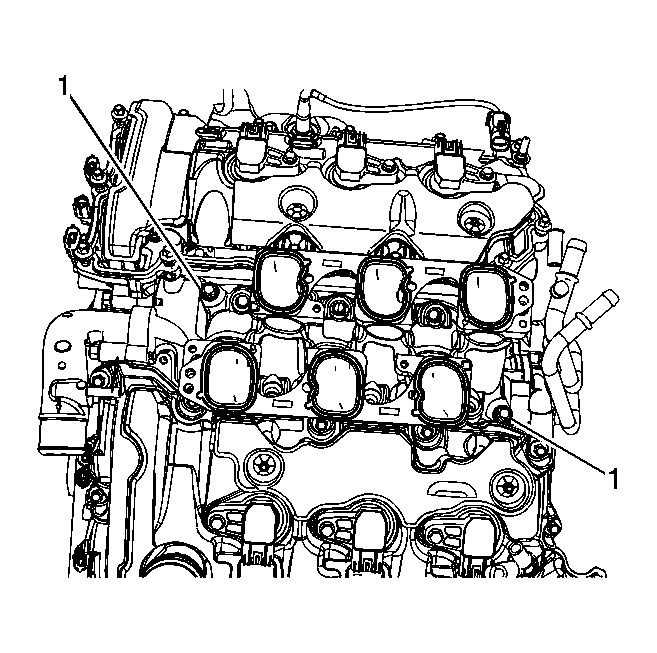

    Fig 1: View Of Lower Intake Manifold Bolts
    GM1829422Courtesy of GENERAL MOTORS CORP.
  1. Install the lower intake manifold gasket.
  2. Install the lower intake manifold bolts (1).
    3. CAUTION: Refer to Fastener Caution .
  3. Install the fuel injectors and fuel rail. Refer to Fuel Injector and Fuel Rail Replacement .

    Tighten the bolts to 23 N.m (17 lb ft).
