Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

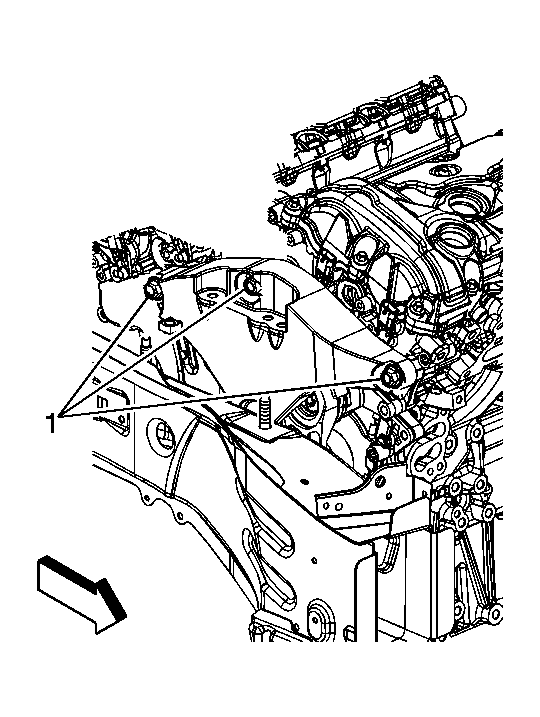

    Fig 1: Engine Mount Adapter Bracket Bolts
    GM1897475Courtesy of GENERAL MOTORS CORP.
  1. Install the engine mount bracket to the vehicle.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the upper engine mount bracket bolts (1) and tighten to 110 N.m (81 lb ft).
  3. Lower the engine.
  4. Lower the vehicle.
  5. Install the right side engine mount. Refer to Engine Mount Replacement - Right Side .
