Drive Belt Tensioner Replacement (LCS)

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

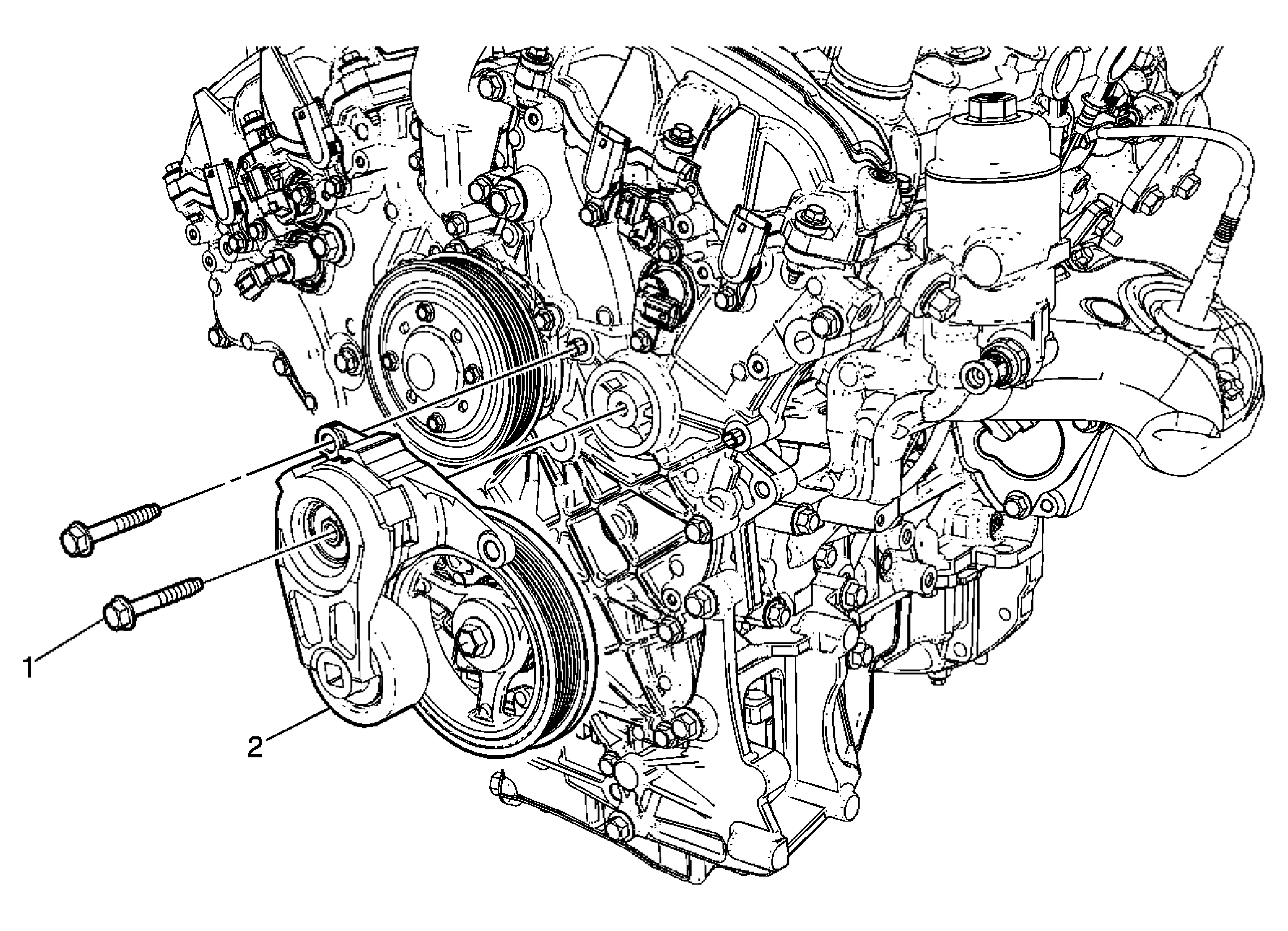

Fig 1: Drive Belt Tensioner Replacement (LCS)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove drive belt idler pulley. Refer to Drive Belt Idler Pulley Replacement (LCS) . Remove The right engine mount bracket. Refer to Engine Mount Bracket Replacement - Right Side .
1	Drive Belt Tensioner Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 25 N.m (19 lb ft)
2	Drive Belt Tensioner Procedure: Transfer parts as needed.

Callout

Component Name

Preliminary Procedure

Remove drive belt idler pulley. Refer to Drive Belt Idler Pulley Replacement (LCS) .
Remove The right engine mount bracket. Refer to Engine Mount Bracket Replacement - Right Side .

Drive Belt Tensioner Fastener (Qty: 2)

CAUTION: Refer to Fastener Caution .

Tighten: 25 N.m (19 lb ft)

Drive Belt Tensioner
Procedure:
Transfer parts as needed.
