Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

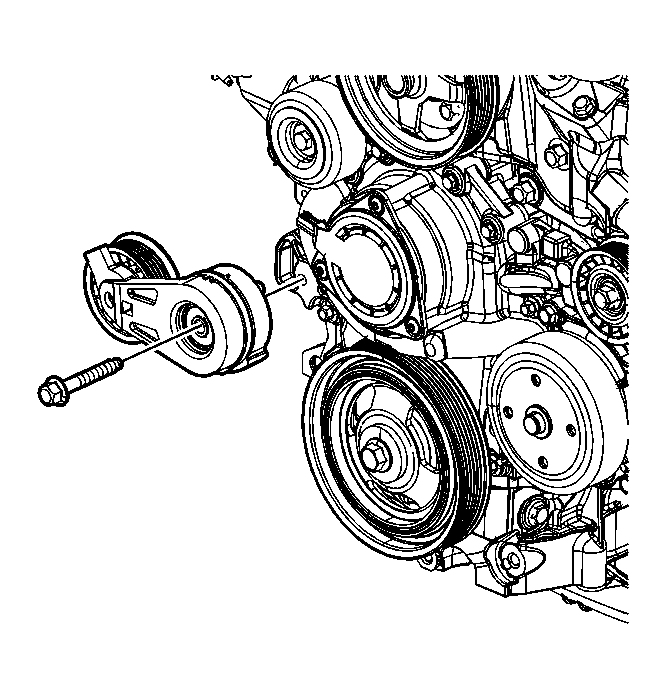

    Fig 1: Identifying Drive Belt Tensioner & Bolt
    GM1556794Courtesy of GENERAL MOTORS CORP.
  1. Install the drive belt tensioner.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the drive belt tensioner bolt and tighten to 50 N.m (37 lb ft).
  3. Install the drive belt. Refer to Drive Belt Replacement .
