Oil Pan Installation: Installation

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

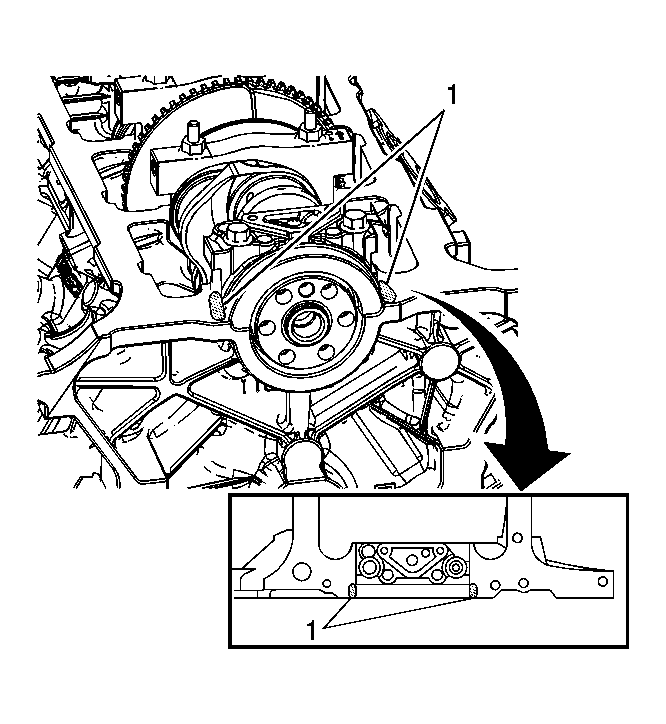

    Fig 1: Identifying Crankshaft Rear Main Bearing Cap
    GM1713977Courtesy of GENERAL MOTORS CORP.
  1. Apply sealer GM P/N 12378521, (Canadian P/N 88901148) or the equivalent to both sides of the crankshaft rear main bearing cap (1). Press sealer into gap using a putty knife.

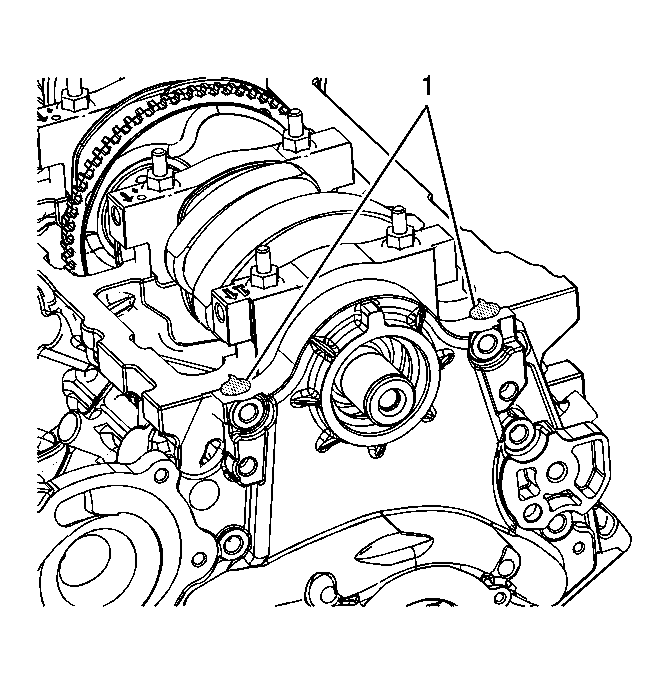

    2. Fig 2: View Of Oil Pan Sealing Points
    GM1713979Courtesy of GENERAL MOTORS CORP.
  2. Apply sealer GM P/N 12378521 (Canadian P/N 88901148) or equivalent to both sides of the front cover/block mating area (1).
    3. Fig 3: View Of Oil Pan & Bolts
    GM187041Courtesy of GENERAL MOTORS CORP.
  3. Install the oil pan gasket.
  4. Install the oil pan.
    5. CAUTION: Refer to Fastener Caution .
  5. Install the oil pan bolts and tighten to 25 N.m (18 lb ft).
  6. Apply sealer GM P/N 12346004 (Canadian P/N 10953480), or equivalent to the oil pan side bolt threads.
  7. Install the oil pan side bolts.
  8. Tighten the oil pan side bolts a first pass to 50 N.m (37 lb ft).
  9. Tighten the oil pan side bolts a second pass to 50 degrees using the J 45059:  meter.
    10. Fig 4: View Of Oil Pan Drain Plug
    GM909511Courtesy of GENERAL MOTORS CORP.
  10. Install the oil pan drain plug and tighten to 25 N.m (18 lb ft).
