Exhaust Manifold Installation - Right Side

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

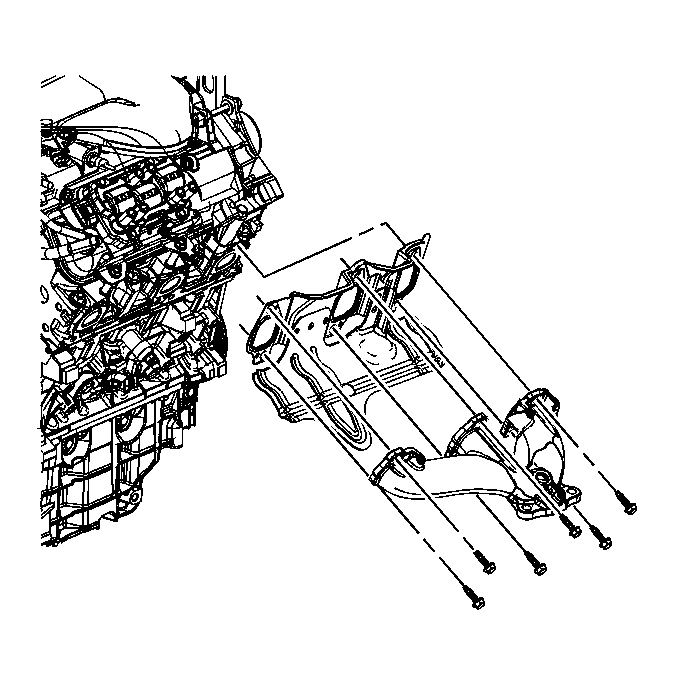

    Fig 1: View Of Right Exhaust manifold, bolts & Gasket
    GM1556815Courtesy of GENERAL MOTORS CORP.
  1. Install the exhaust manifold gasket.
  2. Install the exhaust manifold.
    3. CAUTION: Refer to Fastener Caution .
  3. Install the exhaust manifold bolts and tighten to 20 N.m (15 lb ft).

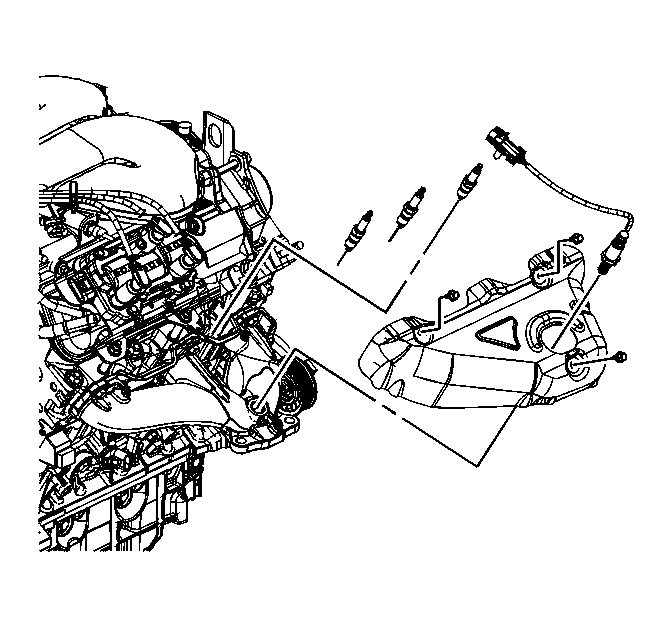

    4. Fig 2: Identifying Right Side Spark Plugs, HO2S & Heat Shield
    GM1556808Courtesy of GENERAL MOTORS CORP.
  4. Install the exhaust manifold heat shield.
  5. Install the exhaust manifold heat shield bolts and tighten to 10 N.m (89 lb in).
  6. Install the spark plugs and tighten to 15 N.m (11 lb ft).
  7. Install the spark plug wires.
  8. Install the heated oxygen sensor and tighen to 42 N.m (31 lb ft).
