Engine Lift Rear Bracket Installation

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

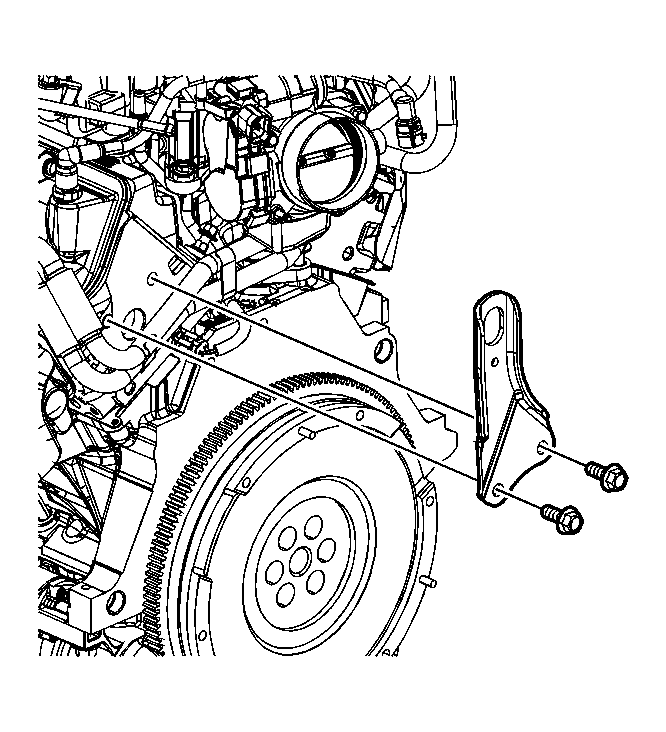

    Fig 1: Identifying Rear Engine Lift Bracket & Bolts
    GM1556797Courtesy of GENERAL MOTORS CORP.
  1. Install the rear engine lift bracket.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the rear engine lift bracket bolts and tighten to 50 N.m (37 lb ft).
