Engine Front Cover Cleaning and Inspection

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

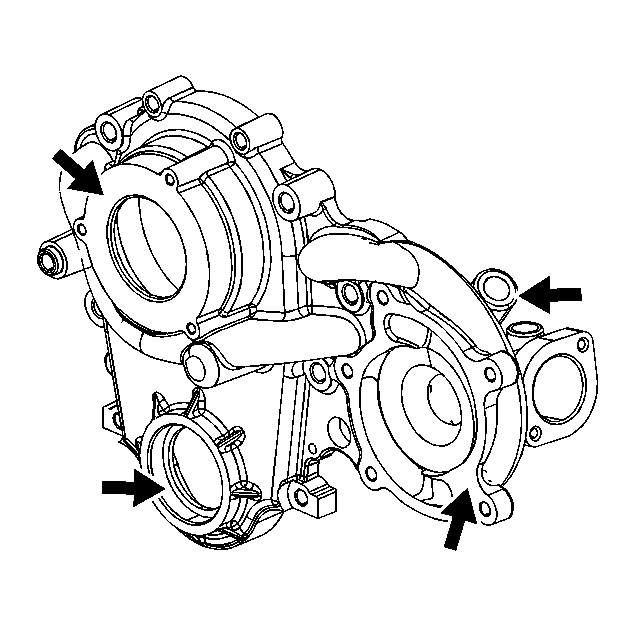

    Fig 1: View Of Engine Front Cover
    GM1557828Courtesy of GENERAL MOTORS CORP.
    WARNING: Bodily injury may occur if the cleaning solvent is inhaled or exposed to the skin.
  1. Clean the engine front cover with solvent.
  2. Dry the engine front cover with compressed air.
  3. Inspect the engine front cover sealing surfaces for damage.
  4. Inspect the engine front cover threaded holes.
  5. Repair or replace the engine front cover as needed.
