Engine Flywheel Installation (Manual Transmission): Installation

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

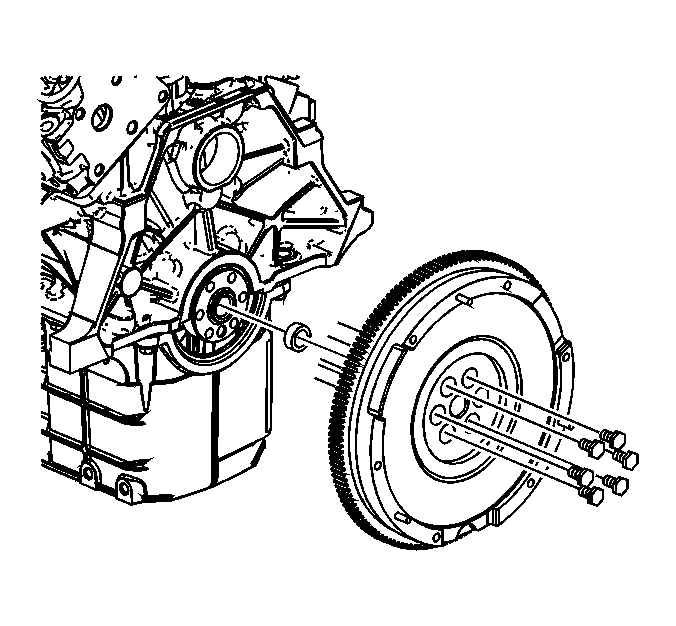

    Fig 1: Identifying Flywheel & Bolts (M/T)
    GM1608905Courtesy of GENERAL MOTORS CORP.
  1. Install the clutch pilot bearing.
  2. Install the flywheel/pressure plate.
    3. CAUTION: Refer to Fastener Caution .
  3. Install the flywheel/pressure plate bolts and tighten to 50 N.m (37 lb ft) plus an additional 70 degrees using the J 45059:  meter.
