Engine Flywheel Installation (Automatic Transmission)

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

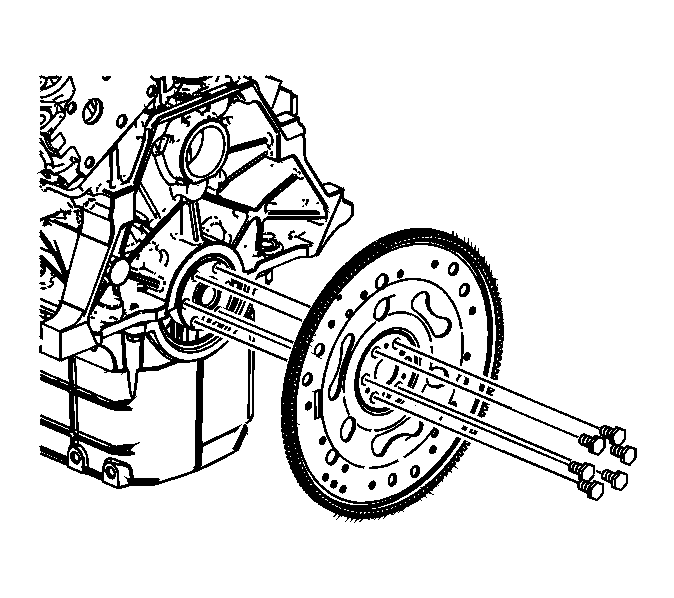

    Fig 1: Identifying Flywheel & Bolts (A/T)
    GM1956507Courtesy of GENERAL MOTORS CORP.
  1. Install the flywheel.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the flywheel bolts and tighten to 70 N.m (52 lb ft).
