Fill the Injury

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

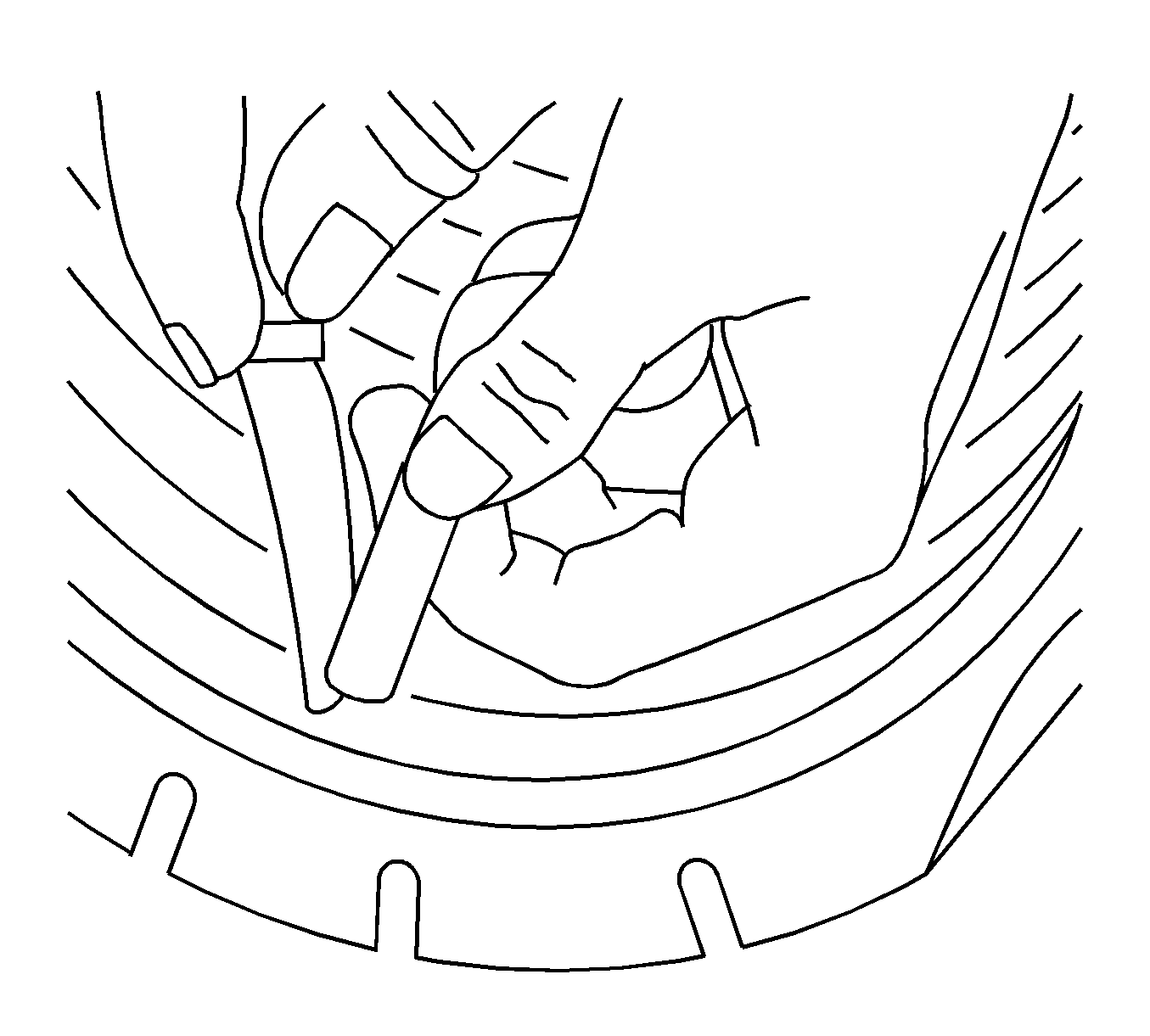

    Fig 1: Filling Injury Location
    GM1407456Courtesy of GENERAL MOTORS CORP.
  1. It is necessary to fill the injury channel to provide back up for the repair unit and to prevent moisture from entering the tire fabric and steel wires.
  2. For combination repair/plug units skip this step. Cement the injured channel and fill the injury from the inside of the tire with the repair plug per repair material manufacturer's recommendations. Without stretching the plug, cut the plug off just above the inside tire surface.
  3. Consult your repair material supplier for proper repair material selection.
