Clean the Injury Channel

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

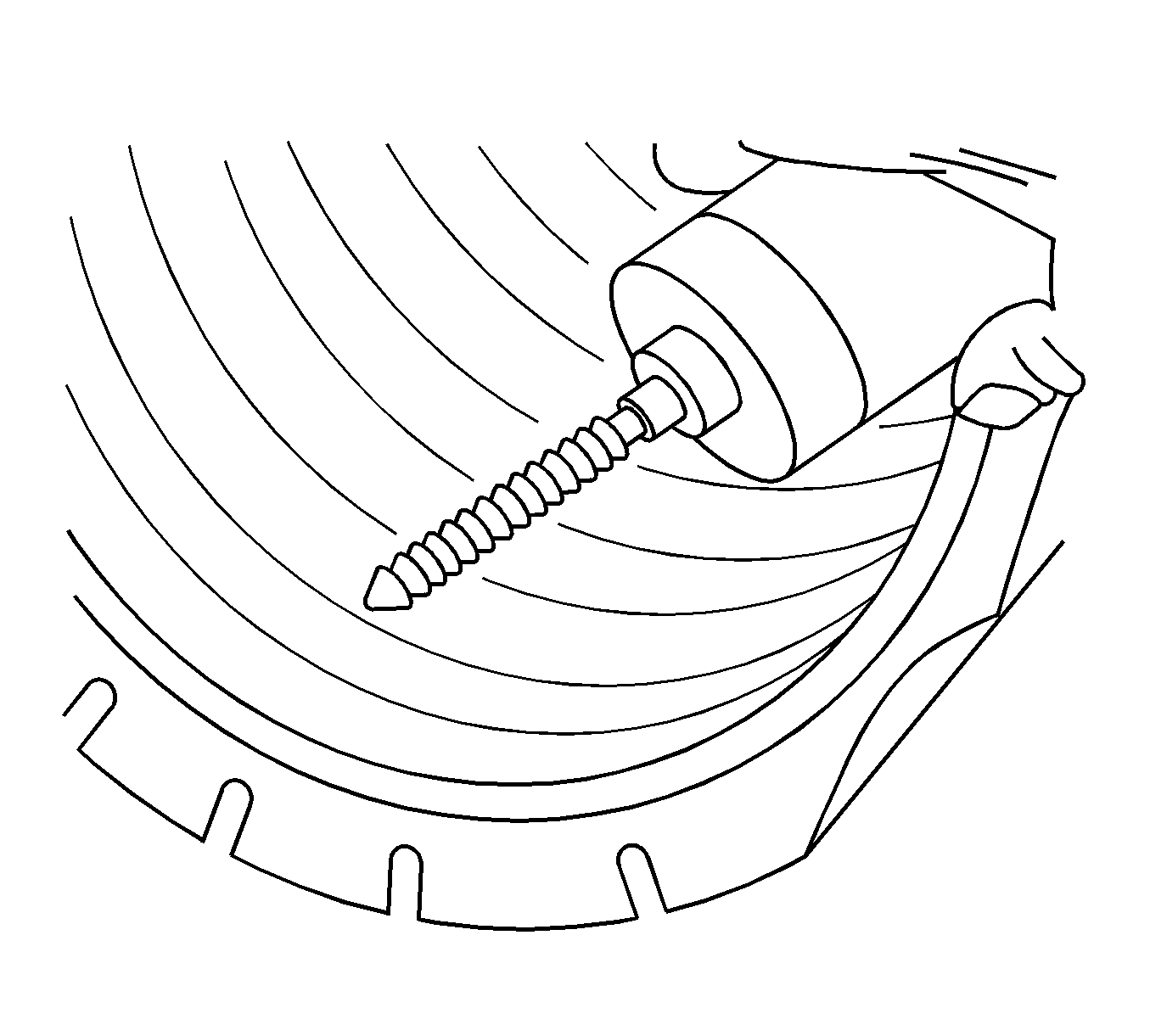

    Fig 1: Reaming Puncture Channel
    GM1407455Courtesy of GENERAL MOTORS CORP.
  1. Use a proper hand reamer, carbide cutter or drill bit to ream the puncture channel from the inside of the tire in order to clean the injury.
  2. Remove steel wires protruding above the liner surface to prevent damage to the repair unit.
  3. Consult your repair material supplier for recommended reaming tool(s).
