Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: View Of Hydraulic Element Lash Adjusters

Courtesy of GENERAL MOTORS CORP.

Install the hydraulic element lash adjusters into their bores in the cylinder head.
Lubricate the hydraulic lash adjusters with GM P/N 12345501 (Canadian P/N 992704) or equivalent.

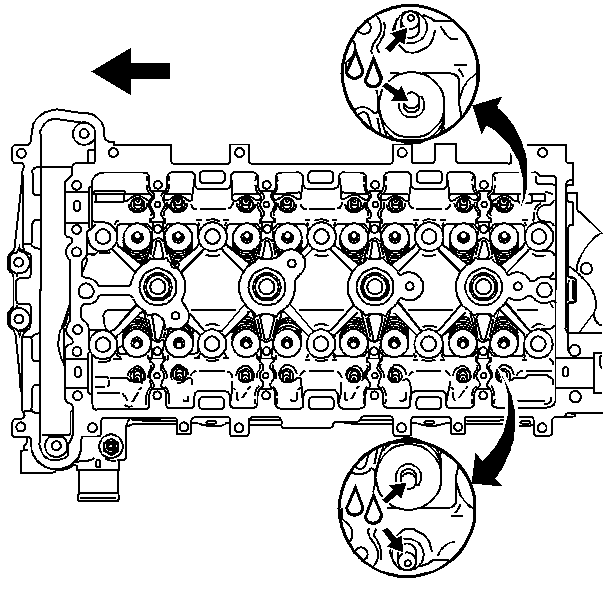

Fig 2: Lubricating Valve Tips

Courtesy of GENERAL MOTORS CORP.

Lubricate the valve tips with GM P/N 12345501 (Canadian P/N 992704) or equivalent.

Fig 3: View Of Camshaft Roller Followers

Courtesy of GENERAL MOTORS CORP.

NOTE: Used roller followers MUST be returned to their original position on the camshaft. If the camshaft is being replaced, the roller followers actuated by the camshaft must also be replaced.

Position the camshaft roller followers on the tip of the valve stem and on the lash adjuster. Lubricate the roller followers with GM P/N 12345501 (Canadian P/N 992704) or equivalent.

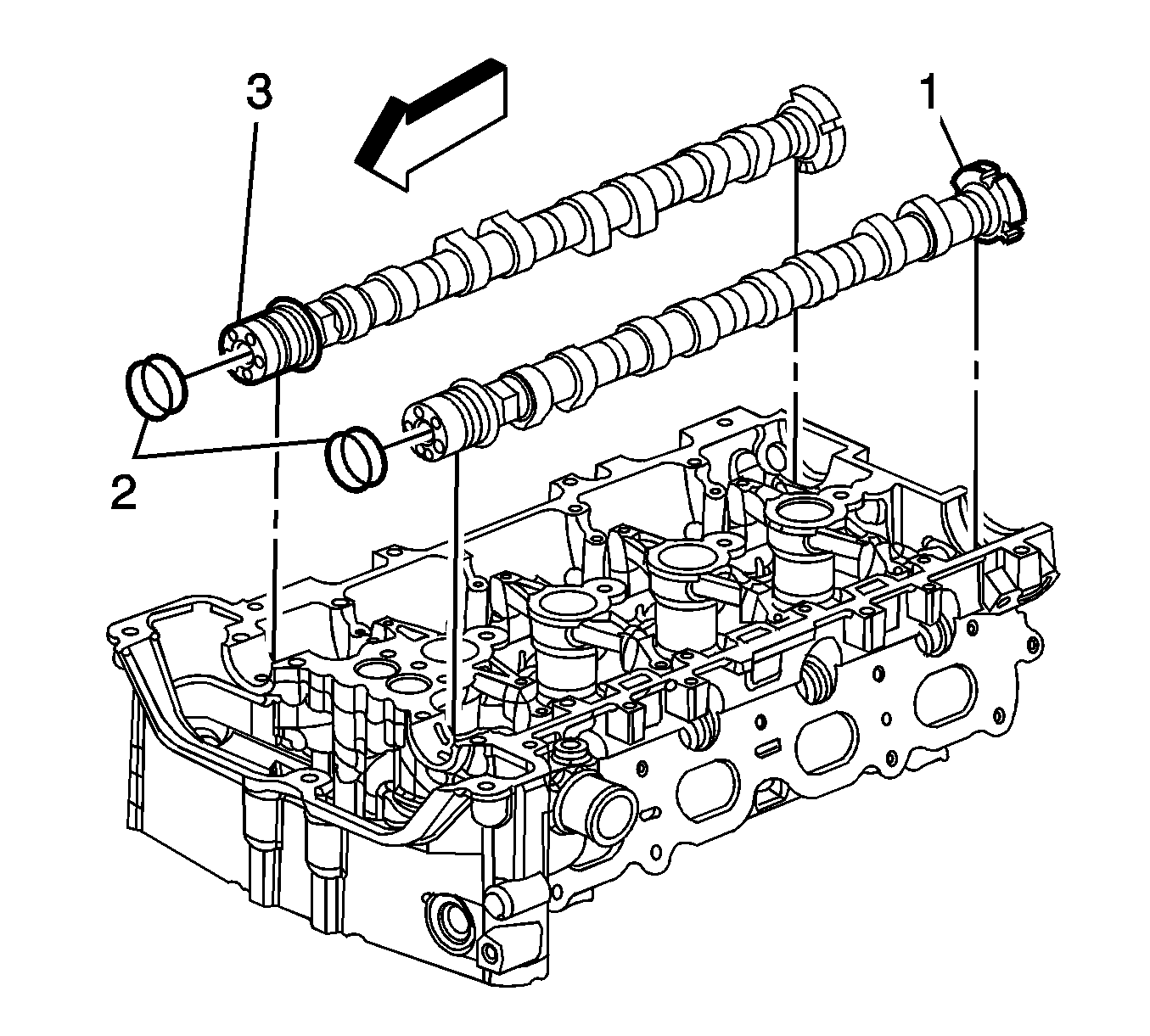

Fig 4: Intake/Exhaust Camshaft

Courtesy of GENERAL MOTORS CORP.

Install the intake camshaft (1). Lubricate with GM P/N 12345501 (Canadian P/N 992704) or equivalent.

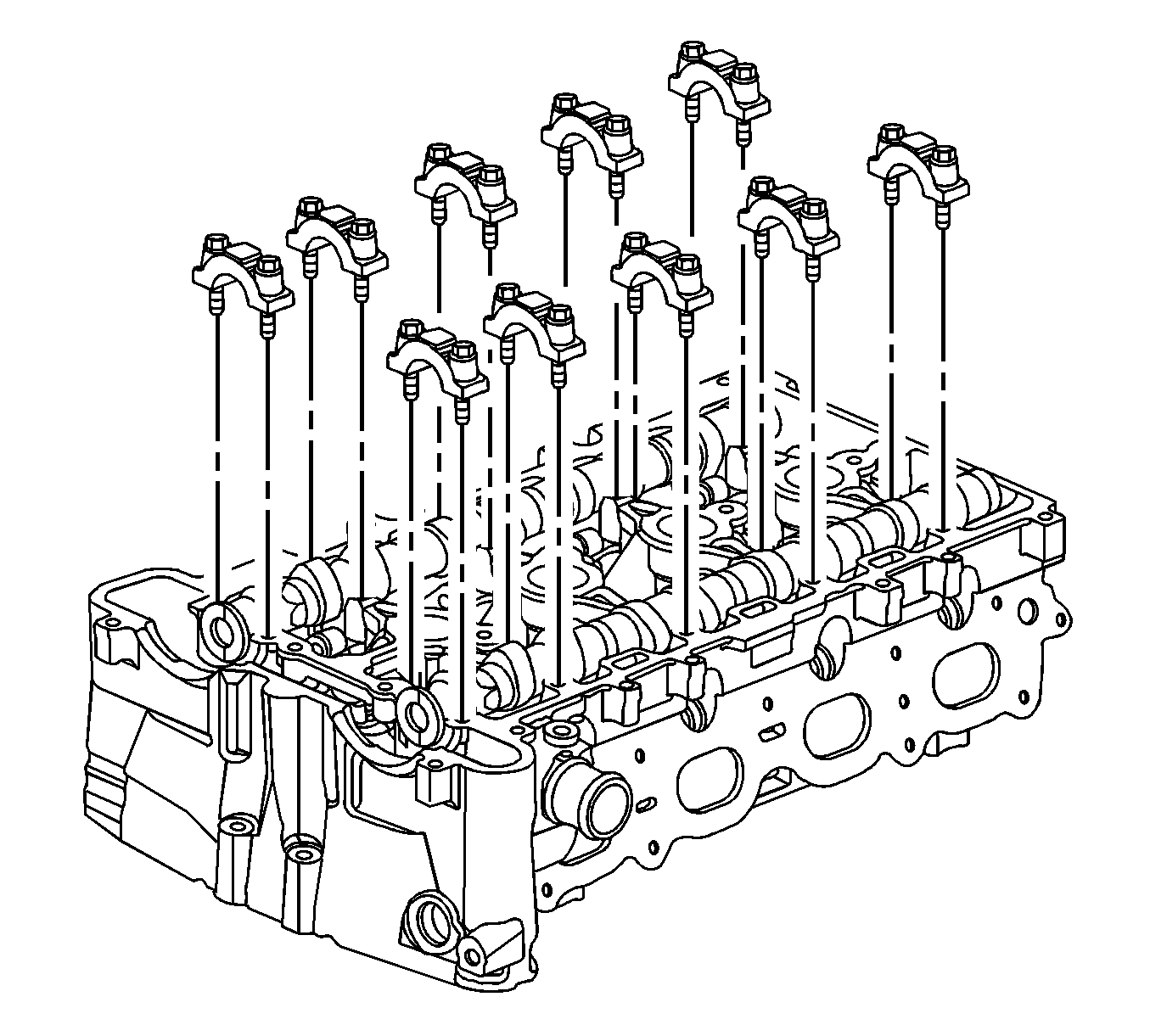

Fig 5: Camshaft Bearing Caps

Courtesy of GENERAL MOTORS CORP.

Install the camshaft bearing caps. Hand tighten the cap bolts.

CAUTION: Refer to Fastener Caution .

Tighten the bearing cap bolts in increments of 3 turns until they are seated. Tighten the bolts to 10 N.m (89 lb in).
Install the intake camshaft position actuator. Refer to Camshaft Position Intake Actuator Replacement .
