Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

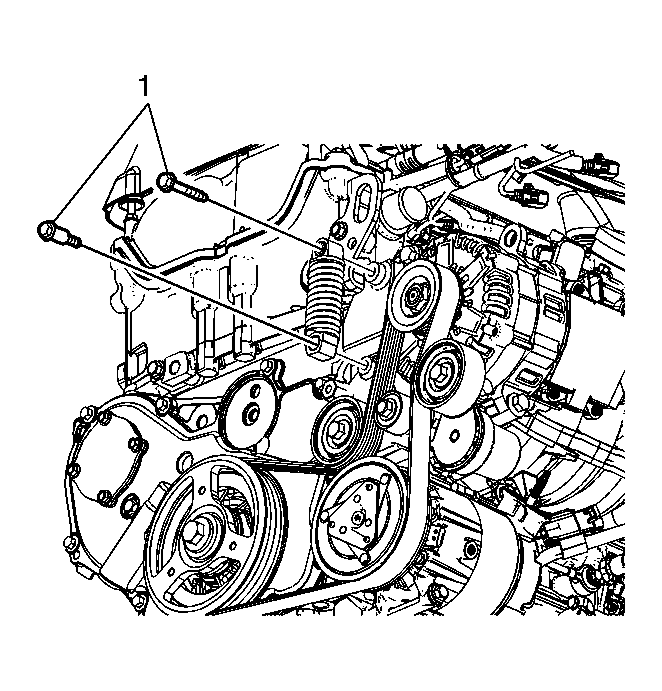

    Fig 1: Identifying Drive Belt Tensioner Spring Bolts
    GM2032672Courtesy of GENERAL MOTORS CORP.
  1. Install and position the drive belt around all of the pulleys except for the middle idler pulley.
  2. Install the tensioner spring on the tensioner.
    3. CAUTION: Refer to Fastener Caution .
  3. Install the tensioner spring bolts (1) to the tensioner and tighten to 22 N.m (16 lb ft).
    4. Fig 2: Drive Belt
    GM1809412Courtesy of GENERAL MOTORS CORP.
  4. Install the drive belt under the middle idler pulley.
  5. Loosen the forcing bolt on the EN-48932  (1) and remove from the drive belt tensioner spring.
  6. Install and position the drive belt around all of the pulleys except for the middle idler pulley.
  7. Ensure that the drive belt tensioner idler is fully seated against the drive belt.
  8. Install the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
