Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

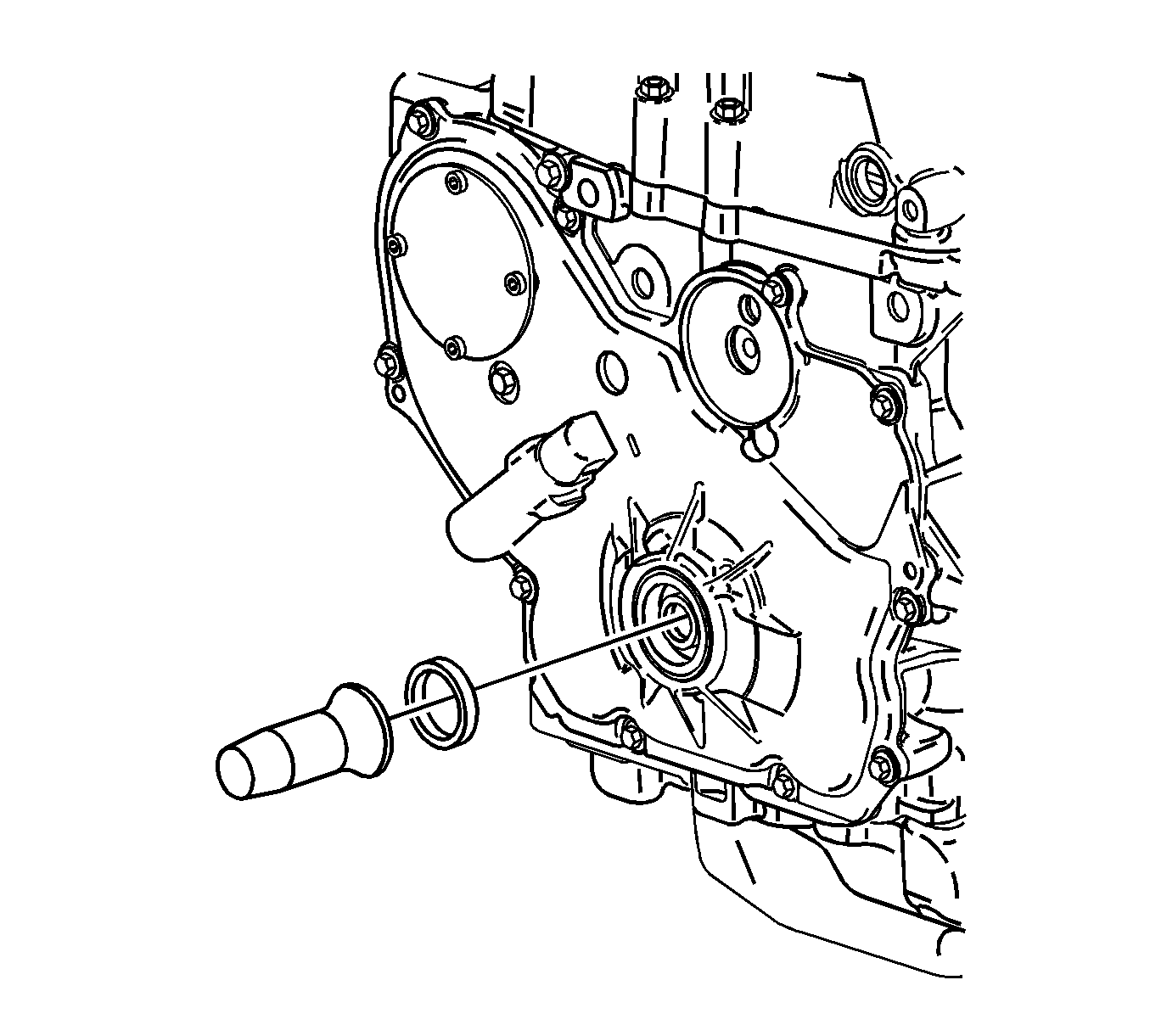

    Fig 1: Installing Crankshaft Front Oil Seal
    GM983269Courtesy of GENERAL MOTORS CORP.
  1. Use the J 35268-A  in order to install the crankshaft front oil seal to the engine front cover.
  2. Install the crankshaft balancer. Refer to Crankshaft Balancer Replacement (LE5)  or Crankshaft Balancer Replacement (LAT) .
