Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Camshaft Cover
    GM1578306Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  1. Install the camshaft cover and bolts and tighten to 10 N.m (89 lb in).

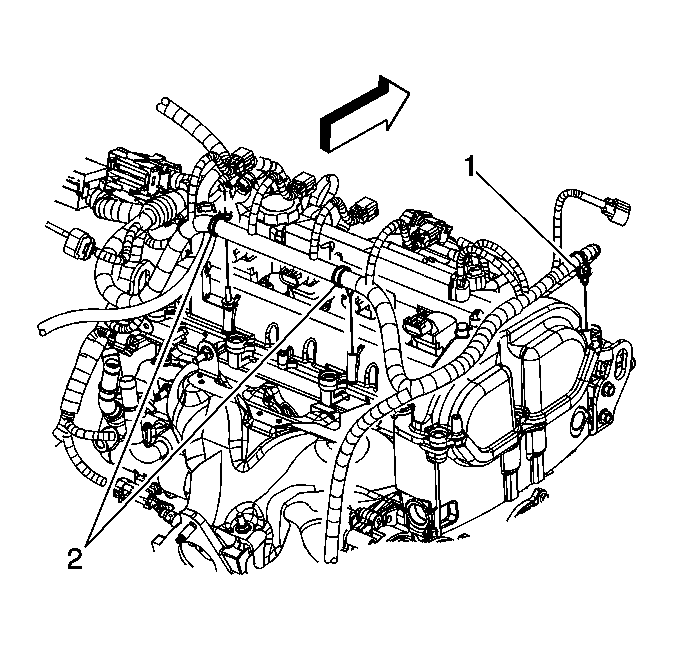

    2. Fig 2: View Of Engine Harness Clips
    GM1656114Courtesy of GENERAL MOTORS CORP.
  2. Install the ignition coils. Refer to Ignition Coil Replacement .
  3. Install the engine harness clips (1, 2) to the cover.
    4. Fig 3: Identifying Fuel Line
    GM1647977Courtesy of GENERAL MOTORS CORP.
  4. Install the feed line retainers (1, 2) to the engine brackets.

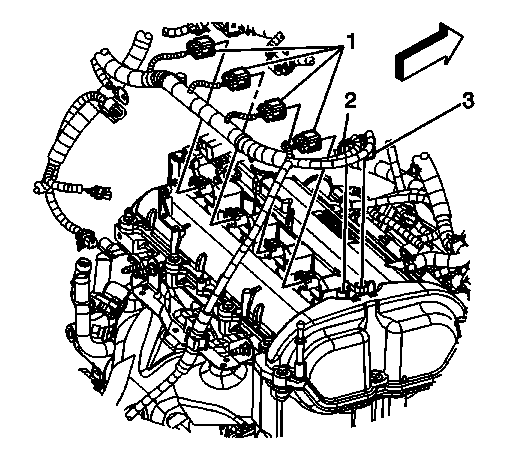

    5. Fig 4: Camshaft Position Actuator Solenoid Valve Electrical Connectors
    GM1647538Courtesy of GENERAL MOTORS CORP.
  5. Connect the intake (2) and exhaust (2) camshaft position actuator solenoid valve electrical connectors.
  6. Install the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
  7. Install the intake manifold cover. Refer to Intake Manifold Cover Replacement .
