Oil Level Indicator and Tube Installation
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
- Lubricate the oil level indicator tube O-ring with GM P/N 12345501 (Canadian P/N 992704) or equivalent.

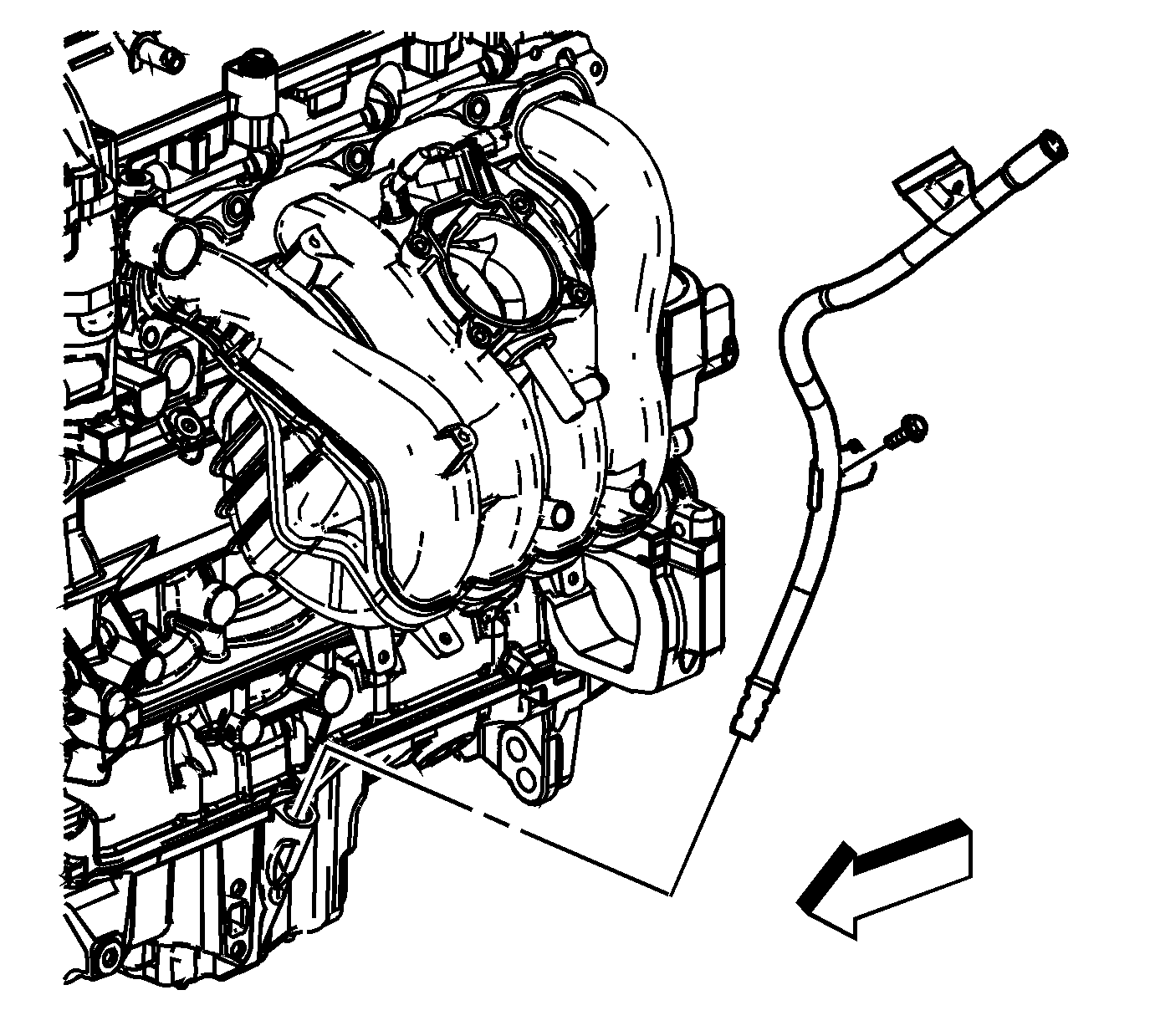

- Install the oil level indicator and the oil level indicator tube into the oil pan.
- Install the oil level indicator tube bracket to the intake manifold bolt and tighten to 10 N.m (89 lb in).
- Install the electrical wiring harness to the oil level indicator tube.
- Install the knock sensor wiring clip into the oil level indicator tube.
CAUTION:
Refer to Fastener Caution
.
