Engine Front Cover and Oil Pump Installation

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View Of Engine Front Cover
    GM412537Courtesy of GENERAL MOTORS CORP.
  1. Install the engine front cover with a new gasket.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the long water pump bolt and tighten to 25 N.m (18 lb ft).
    3. Fig 2: View Of Engine Front Cover Bolts
    GM412538Courtesy of GENERAL MOTORS CORP.
  3. Install the engine front cover bolts and tighten to 25 N.m (18 lb ft).

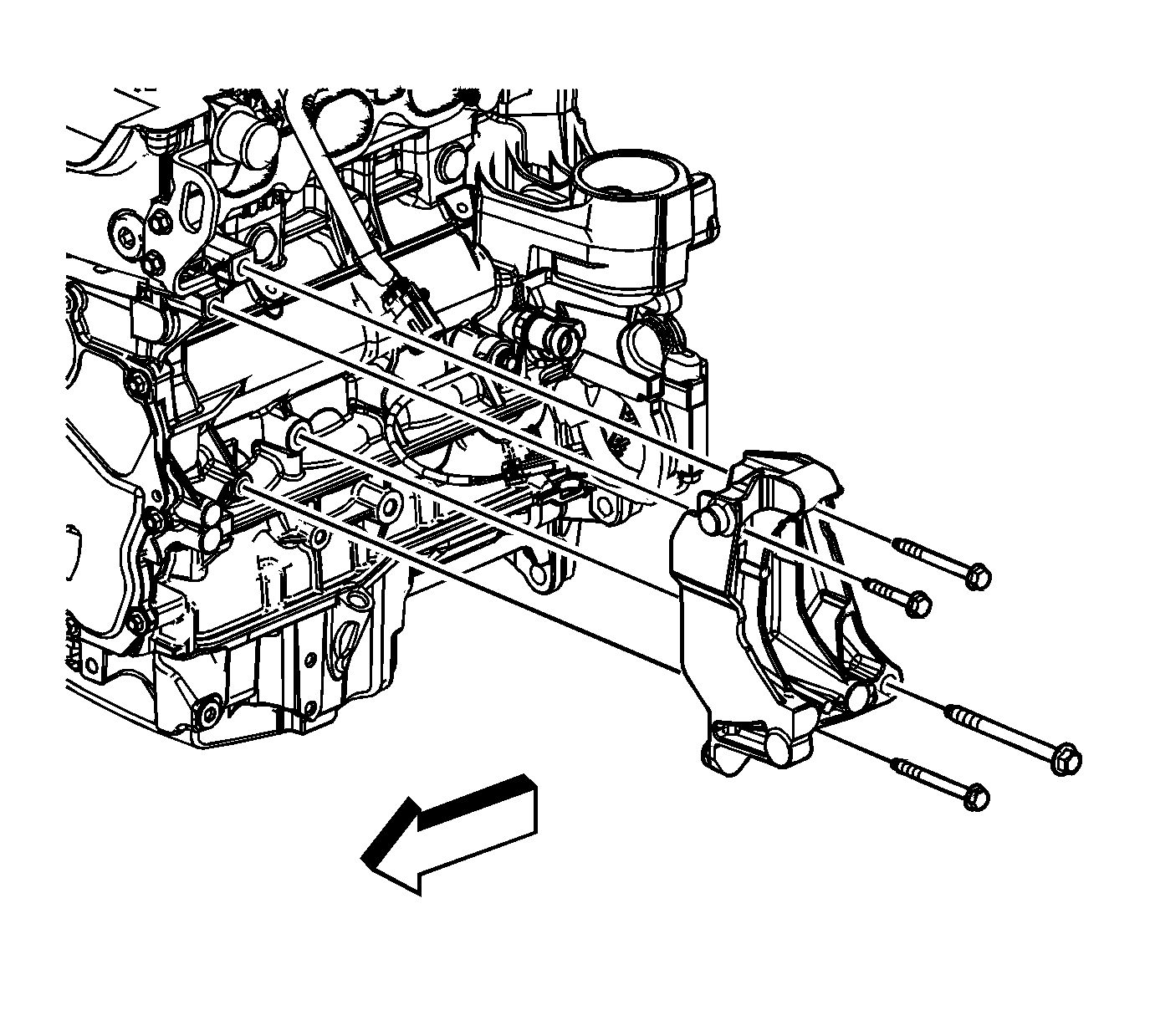

    4. Fig 3: Drive Belt Tensioner Bracket And Bolts
    GM1828043Courtesy of GENERAL MOTORS CORP.
  4. Install the drive belt tensioner bracket.
  5. Install the drive belt tensioner bracket bolts and tighten to 45 N.m (33 lb ft).

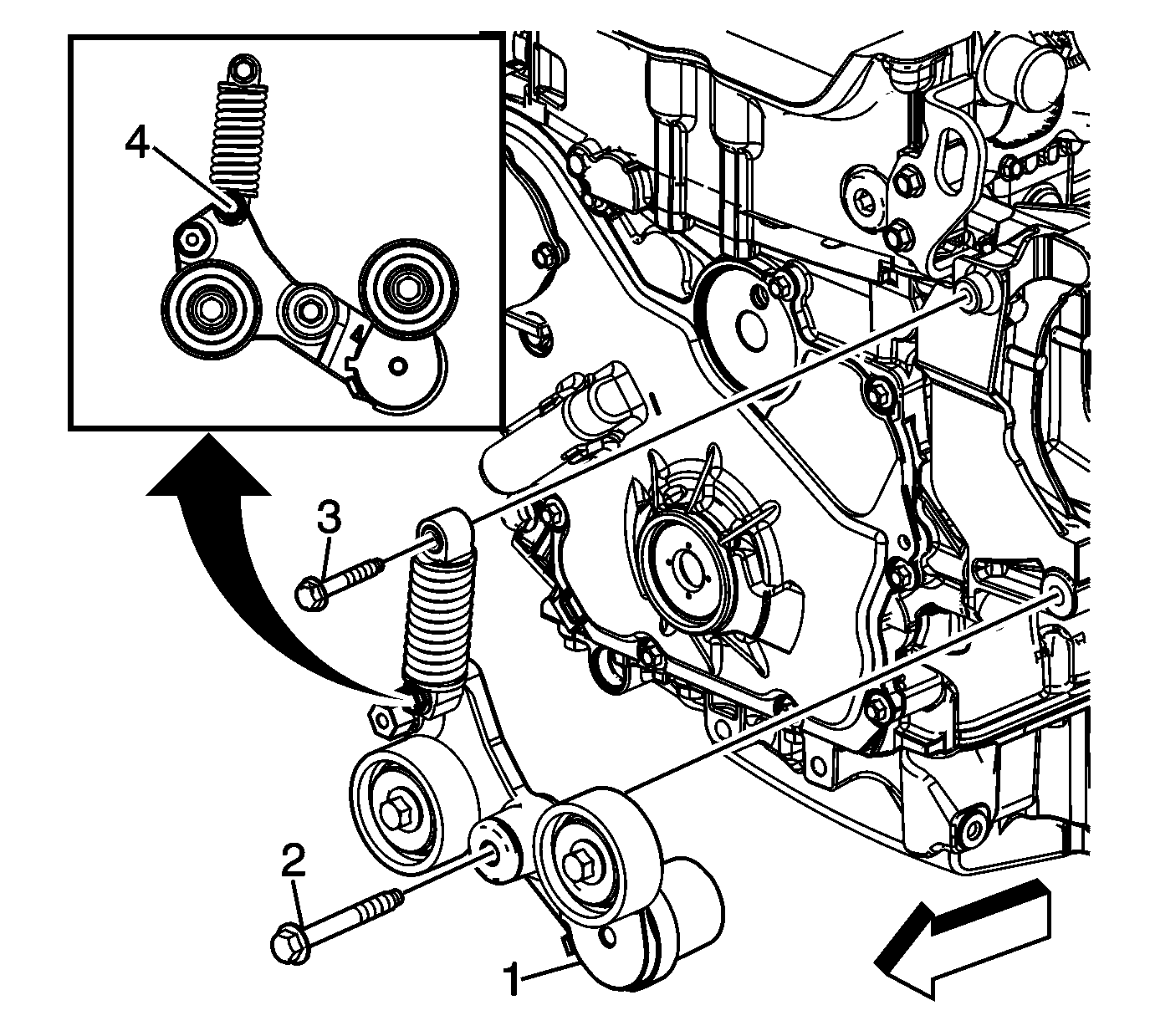

    6. Fig 4: Accessory Drive Belt Tensioner And Bolts
    GM1828040Courtesy of GENERAL MOTORS CORP.
  6. Install the accessory drive belt tensioner.
  7. Install the accessory drive belt tensioner bolt and tighten to 45 N.m (33 lb ft).
