Engine Flywheel Removal: Removal

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

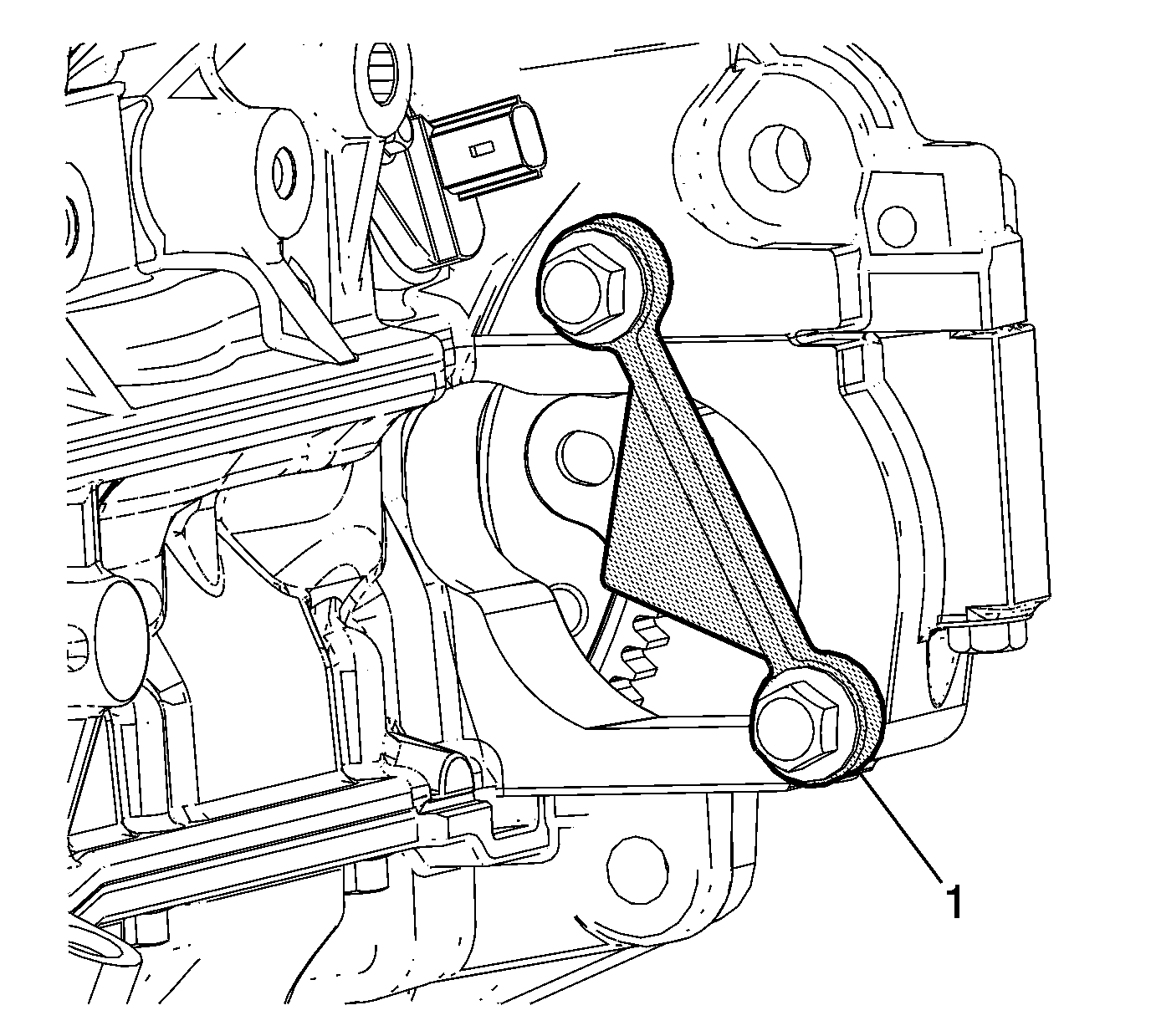

    Fig 1: Identifying Flywheel Holding Tool
    GM2148522Courtesy of GENERAL MOTORS CORP.
  1. Install J 43653  (1) to prevent crankshaft rotation. See Special Tools .
    2. Fig 2: Identifying Flywheel & Retaining Bolts
    GM412117Courtesy of GENERAL MOTORS CORP.
  2. Remove the flywheel attaching bolts.
  3. Remove the flywheel, if the vehicle has a manual transmission.
    4. Fig 3: View Of Flywheel
    GM412119Courtesy of GENERAL MOTORS CORP.
  4. Remove the flywheel retainer for vehicles with automatic transmission.
  5. Remove the flywheel, if the vehicle has an automatic transmission.
  6. Clean the thread adhesive from the flywheel bolt holes. Use a nylon bristle brush to clean the holes in the crankshaft.
  7. Remove J 43653  . See Special Tools .
