Cylinder Head Installation: Installation

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

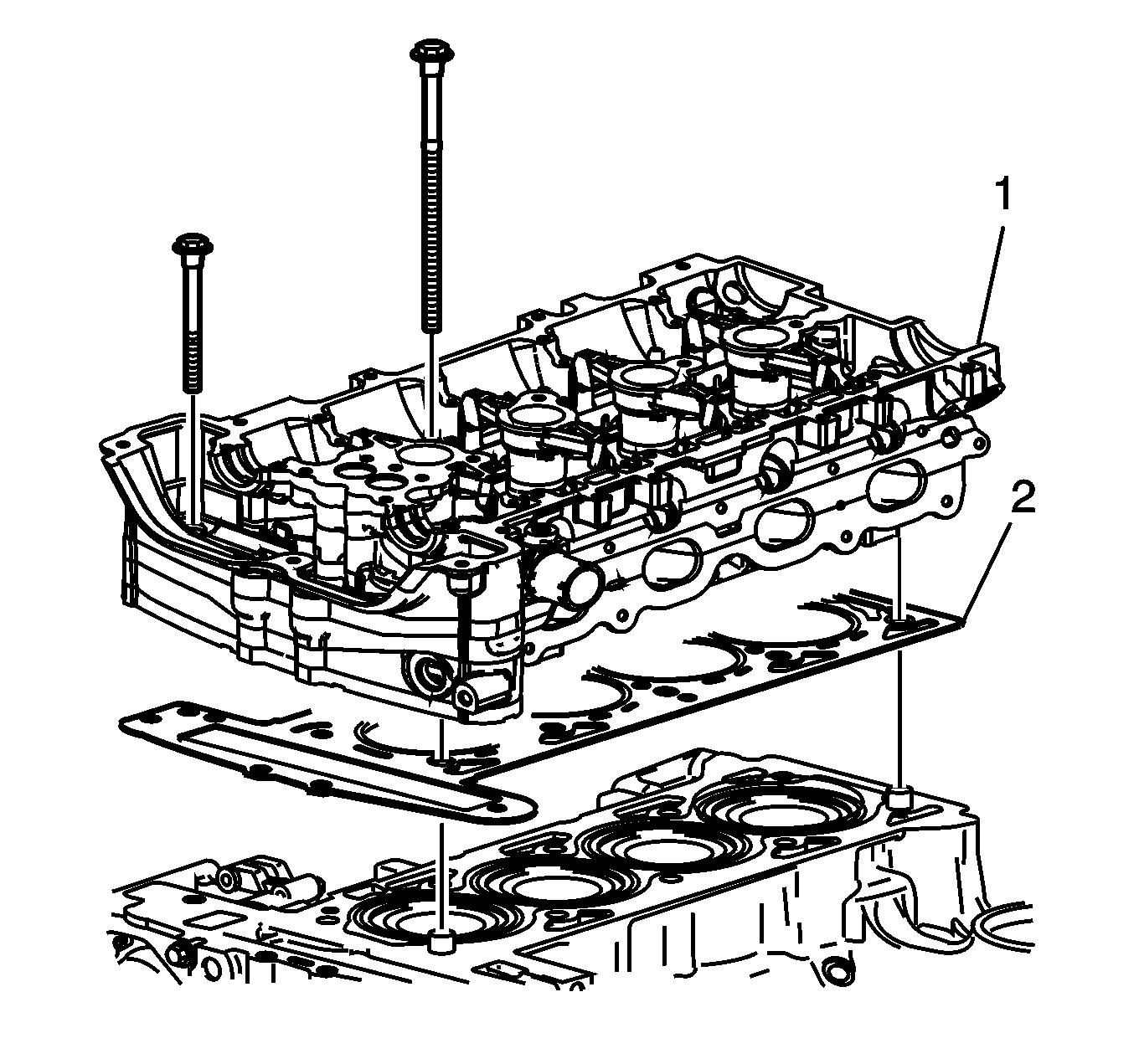

Fig 1: View of Cylinder Head Gasket and Cylinder Head

Courtesy of GENERAL MOTORS CORP.

NOTE: Do not use any sealing material.

Install the cylinder head gasket (2) to the block.
Install the cylinder head (1).

Fig 2: Identifying Cylinder Head Bolt Tightening Sequence

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Fastener Caution .

NOTE: Always use new cylinder head bolts.

Install and tighten the cylinder head bolts in sequence.
- Tighten the bolts to 30 N.m (22 lb ft) .
- Using the J 45059: meter , tighten the bolts an additional 155 degrees in sequence.

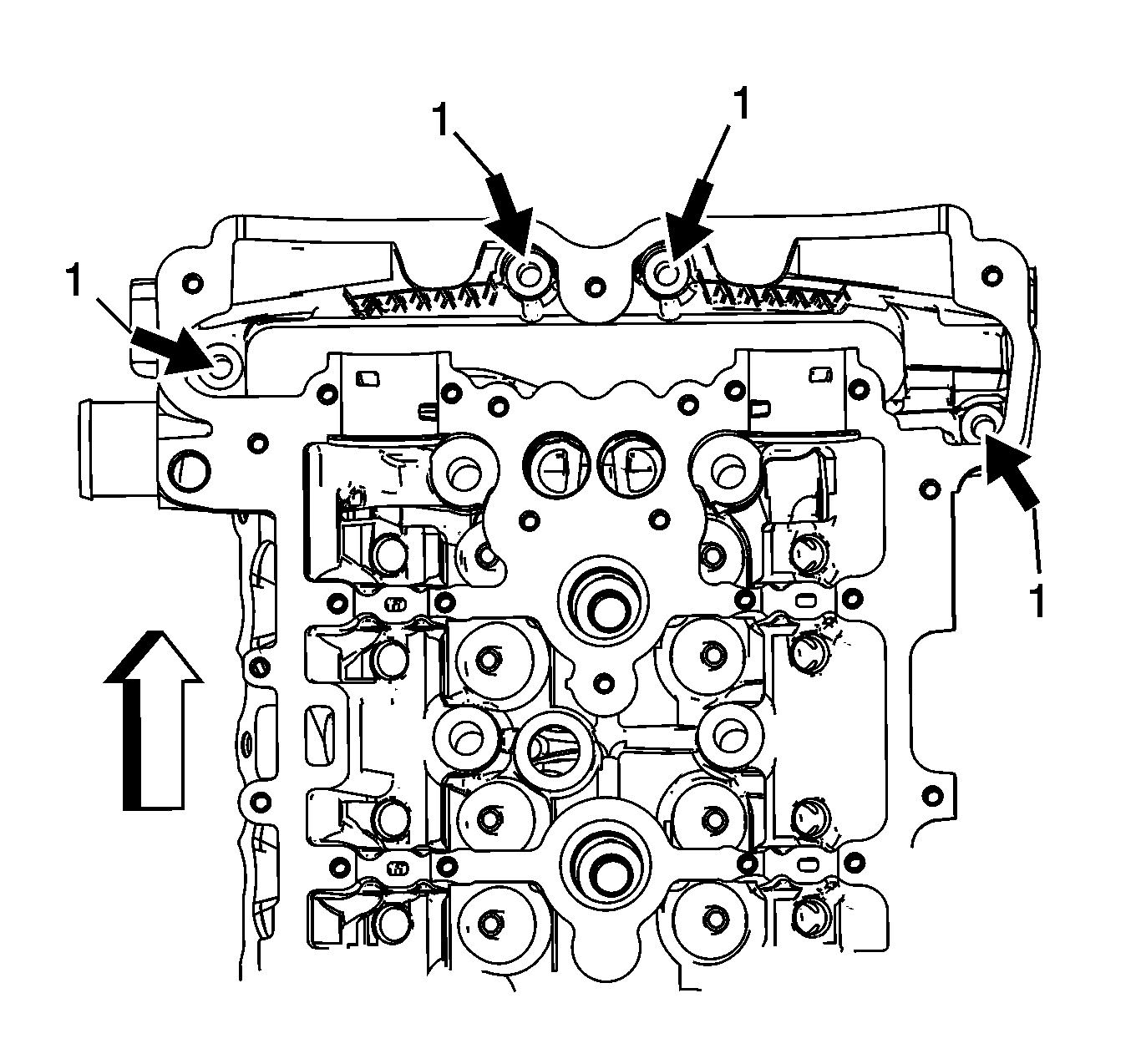

Fig 3: Identifying Front Cylinder Head Bolts

Courtesy of GENERAL MOTORS CORP.

Install the front cylinder head bolts (1) and tighten to 35 N.m (26 lb ft).
