Camshaft Cover Removal

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Camshaft Cover Ground Strap

Courtesy of GENERAL MOTORS CORP.

Remove the camshaft cover ground strap (1).

Fig 2: View Of Front Lift Bracket

Courtesy of GENERAL MOTORS CORP.

Remove the front lift bracket.

Fig 3: View of Rear Lift Bracket

Courtesy of GENERAL MOTORS CORP.

Remove the rear lift bracket (1).

Fig 4: View Of Ignition Coil And Camshaft Position Actuator Solenoid Valves

Courtesy of GENERAL MOTORS CORP.

Remove the bolt and coil (1).
Remove the camshaft position actuator solenoid valve bolts.
Remove the camshaft position actuator solenoid valves (2).

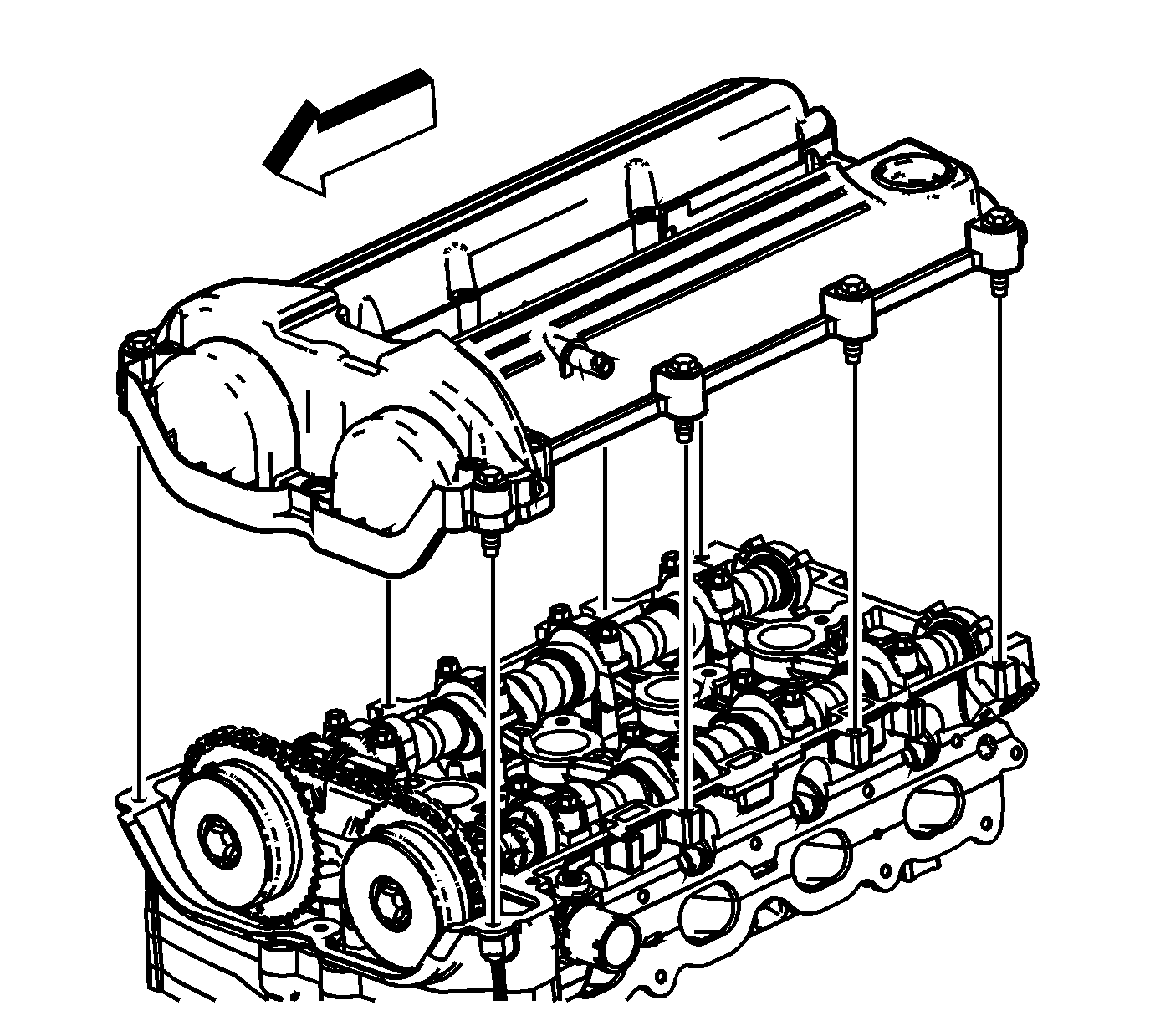

Fig 5: Camshaft Cover

Courtesy of GENERAL MOTORS CORP.

Remove the camshaft cover assembly.
Remove and discard the camshaft cover gasket, camshaft cover grommets, and camshaft cover bolts if they are serviced with the grommet.
