Door Lock/Indicator Schematics

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Driver Door Locks
GM2079484Courtesy of GENERAL MOTORS CORP.

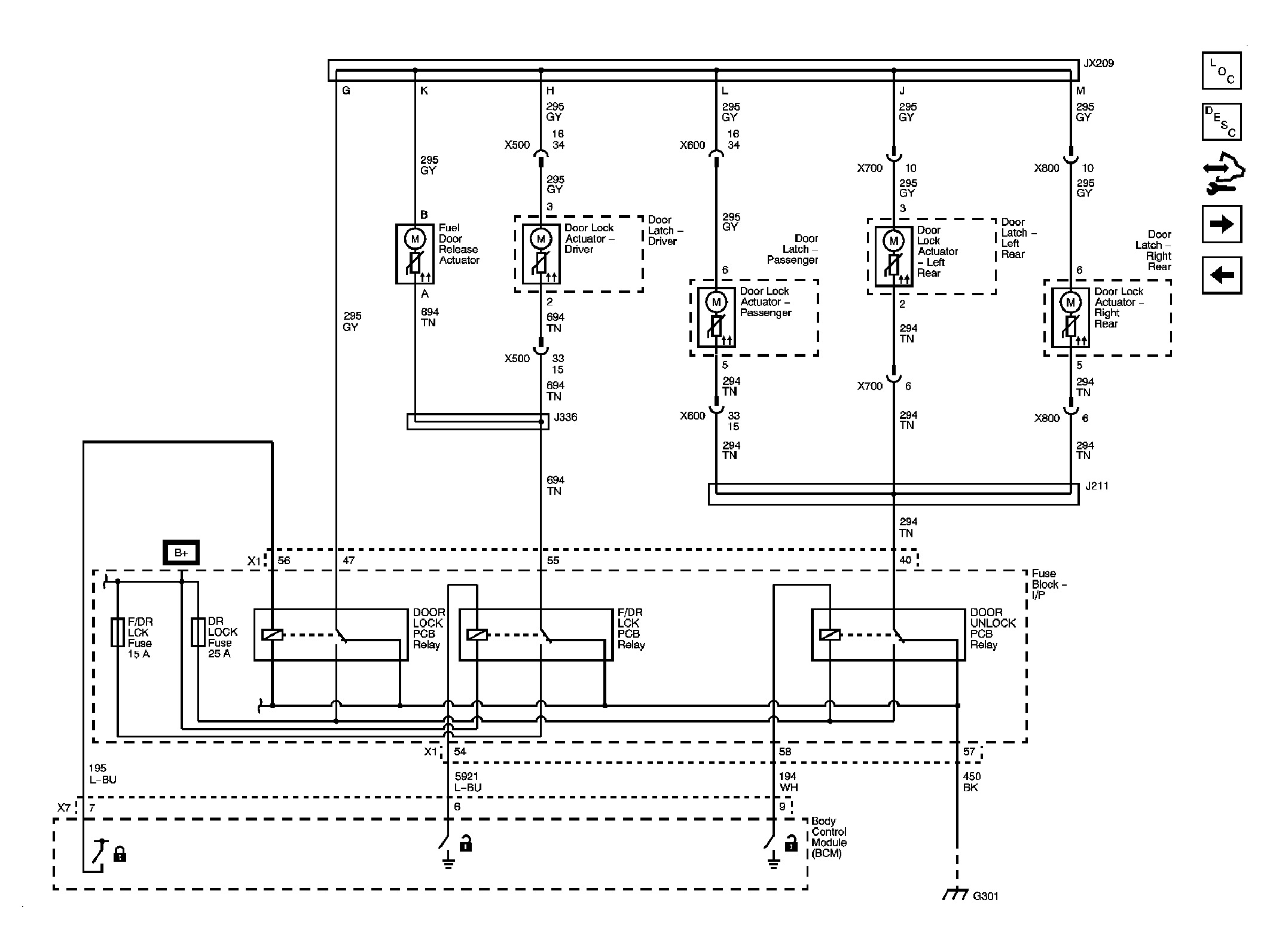

Fig 2: Door Lock Actuators
GM2079488Courtesy of GENERAL MOTORS CORP.

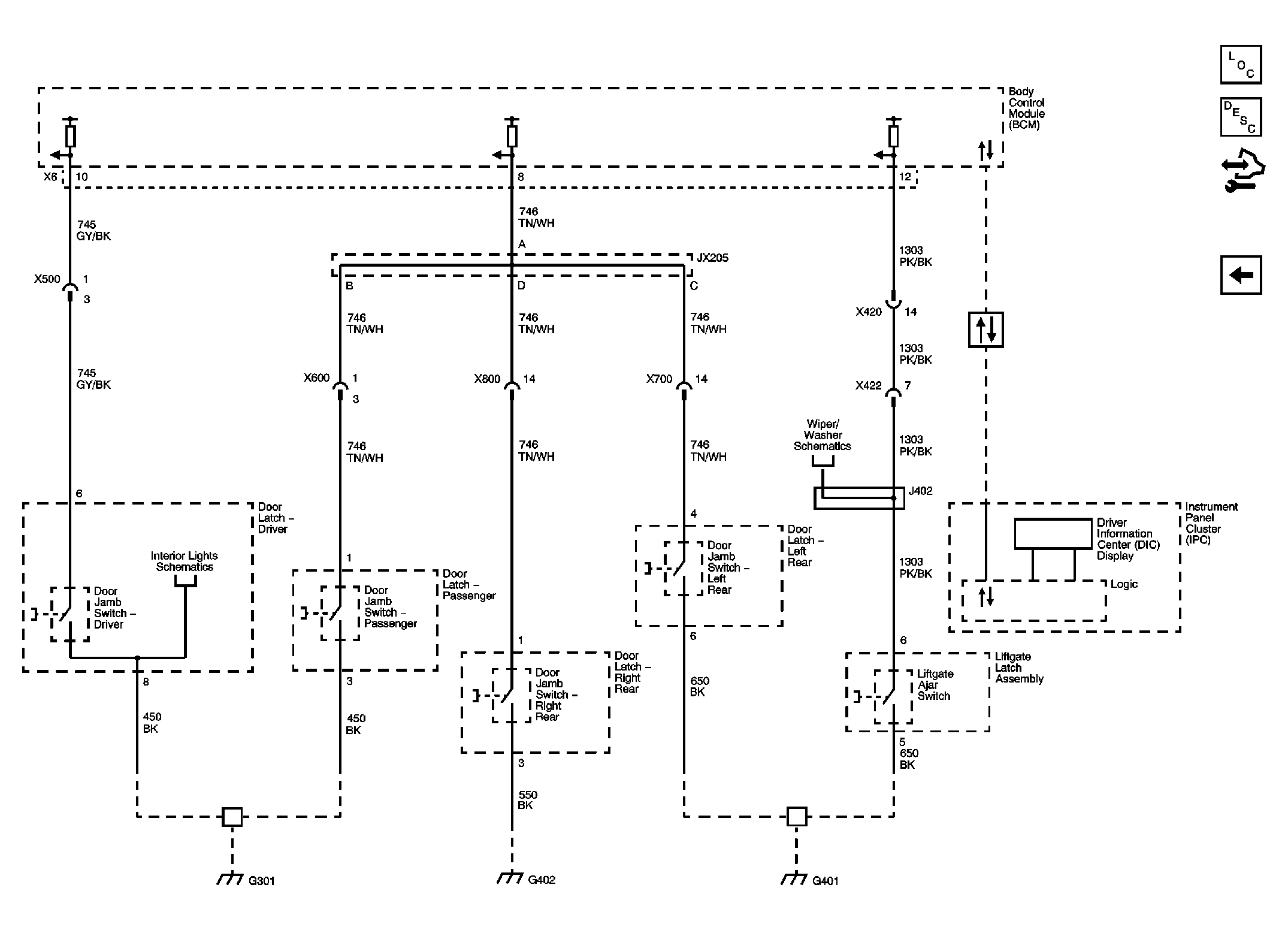

Fig 3: Door Lock Indicators
GM2079493Courtesy of GENERAL MOTORS CORP.
