Rear Seat Center Belt Buckle Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

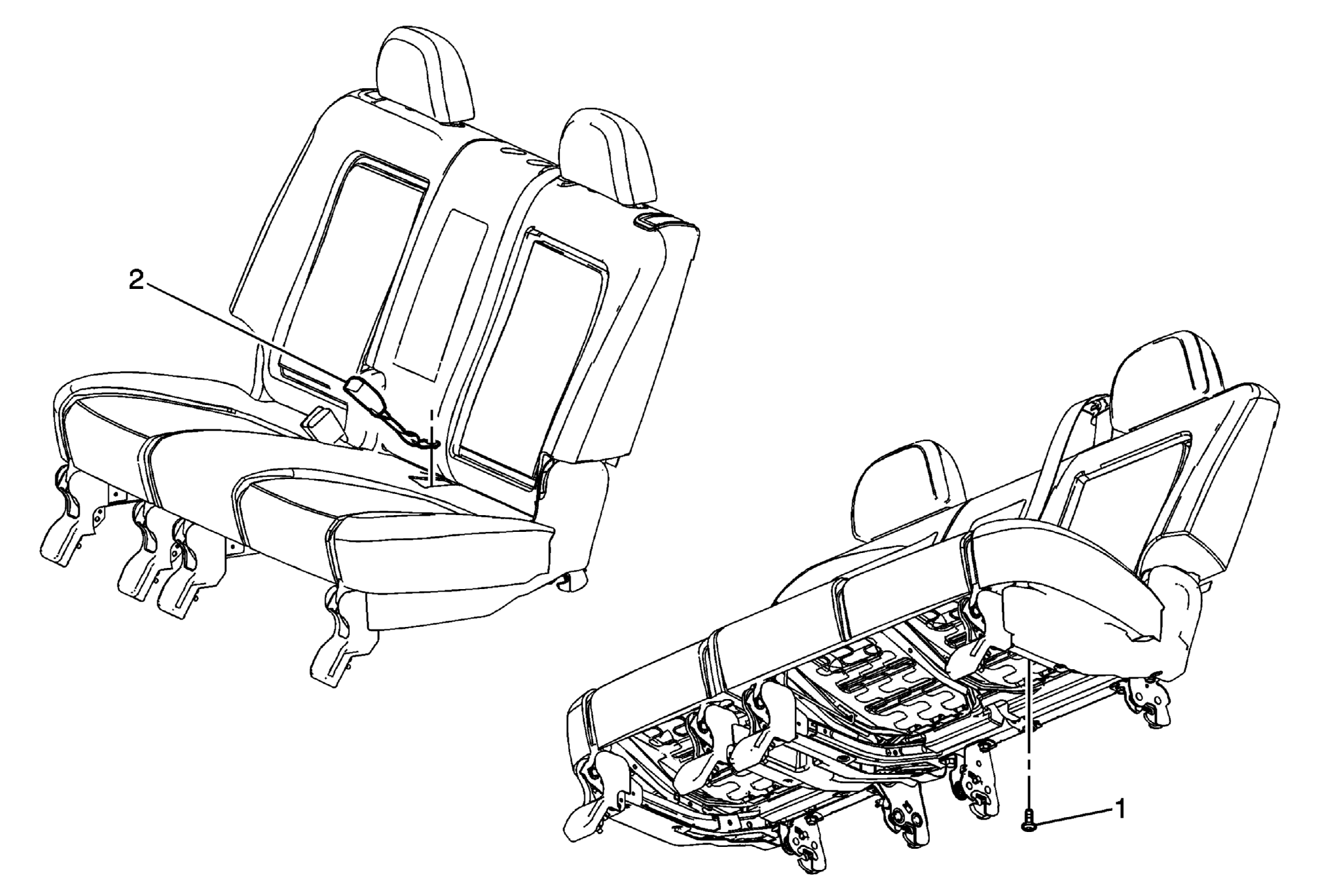

Fig 1: Rear Seat Belt Buckle

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Fold the 60 percent seat back down. Unlatch the rear seat by pushing on the seat latch buttons on the inboard side of the lower rear seat latches.
1	Rear Seat Center Belt Buckle Bolt CAUTION: Refer to Fastener Caution . Tighten: 45 N.m (33 lb ft)
2	Rear Seat Center Belt Buckle

Callout

Component Name

Preliminary Procedure

Fold the 60 percent seat back down.
Unlatch the rear seat by pushing on the seat latch buttons on the inboard side of the lower rear seat latches.

Rear Seat Center Belt Buckle Bolt

CAUTION: Refer to Fastener Caution .

Tighten: 45 N.m (33 lb ft)

Rear Seat Center Belt Buckle
