Rear Seat Belt Buckle Replacement (w/40 percent Seat)

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

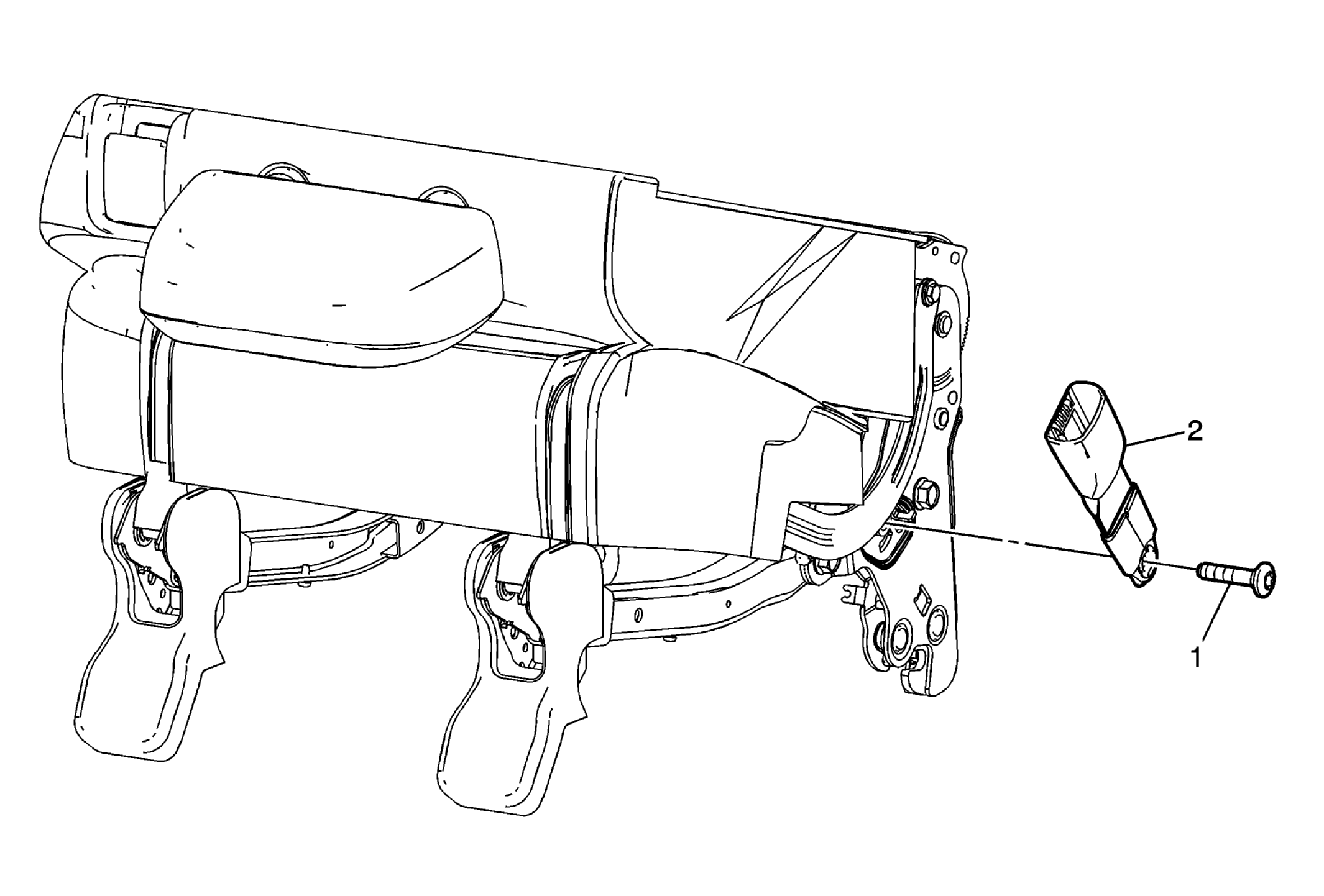

Fig 1: Rear Seat Belt Buckle

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the rear seat recliner outer finish cover inboard. Refer to Rear Seat Recliner Outer Finish Cover Replacement - Inboard (with 40 Percent Seat) or Rear Seat Recliner Outer Finish Cover Replacement - Inboard (with 60 Percent Seat) . Fold the seat assembly.
1	Rear Seat Belt Buckle Bolt CAUTION: Refer to Fastener Caution . Tighten: 45 N.m (33 lb ft)
2	Rear Seat Belt Buckle

Callout

Component Name

Preliminary Procedures

Remove the rear seat recliner outer finish cover inboard. Refer to Rear Seat Recliner Outer Finish Cover Replacement - Inboard (with 40 Percent Seat) or Rear Seat Recliner Outer Finish Cover Replacement - Inboard (with 60 Percent Seat) .
Fold the seat assembly.

Rear Seat Belt Buckle Bolt

CAUTION: Refer to Fastener Caution .

Tighten: 45 N.m (33 lb ft)

Rear Seat Belt Buckle
