Underhood Electrical Center or Junction Block Replacement (HP7)

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

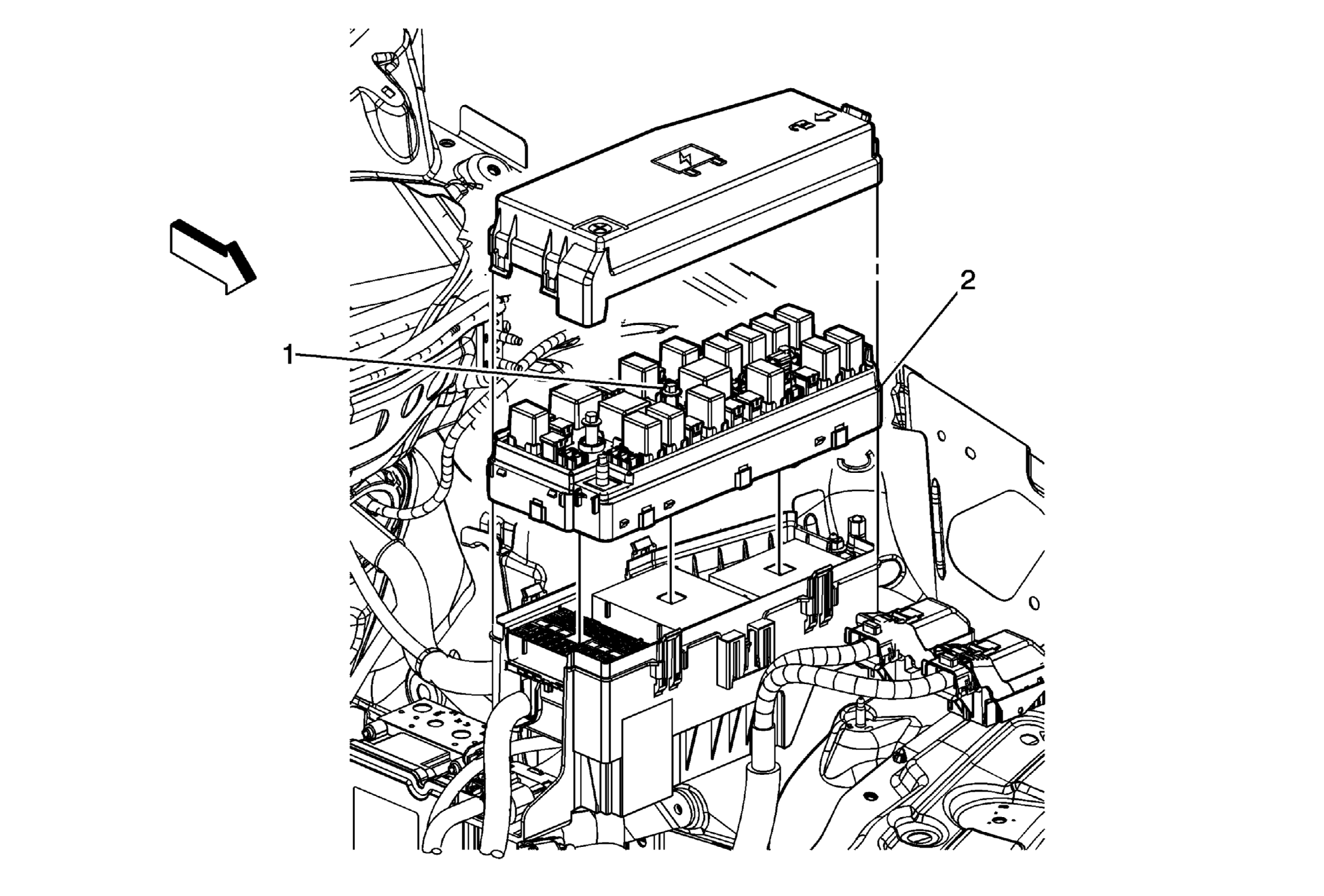

Fig 1: Underhood Electrical Center or Junction Block Replacement (HP7)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Disconnect the battery. Refer to Battery Negative Cable Disconnection and Connection . Remove the junction block cover.
1	Battery Positive Cable to Junction Block Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Procedure Remove battery cable nut on junction block and remove batter cable. Remove the junction by releasing the tabs. Tighten: 10 N.m (89 lb in)
2	Underhood Electrical Center or Junction Block

Callout

Component Name

Preliminary Procedures

Disconnect the battery. Refer to Battery Negative Cable Disconnection and Connection .
Remove the junction block cover.

Battery Positive Cable to Junction Block Bolt (Qty: 3)

CAUTION: Refer to Fastener Caution .

Procedure

Remove battery cable nut on junction block and remove batter cable.
Remove the junction by releasing the tabs.

Tighten: 10 N.m (89 lb in)

Underhood Electrical Center or Junction Block
