Transmission Brace Replacement
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

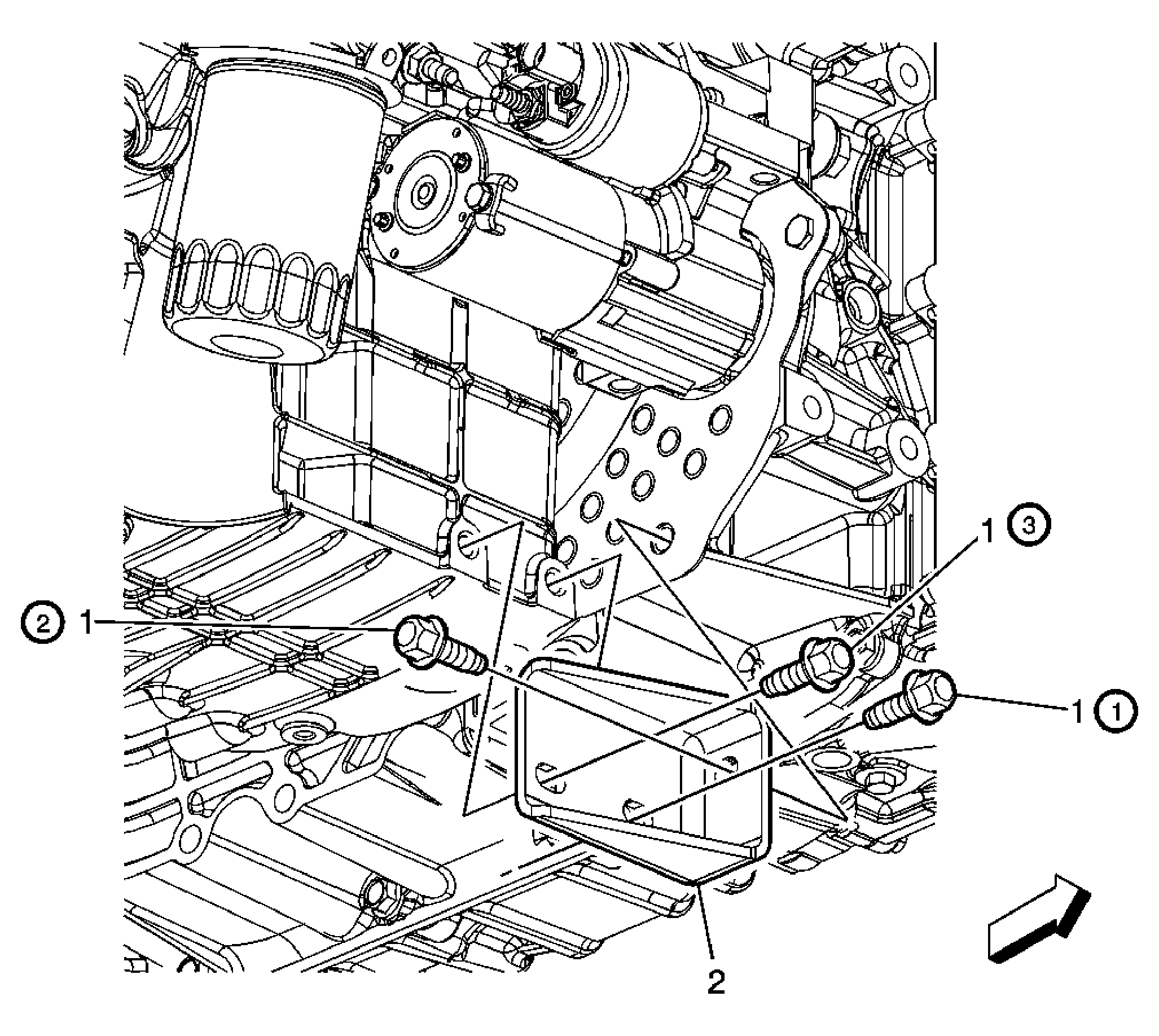

| Callout | Component Name |
|---|---|
| Preliminary Procedures: Raise the vehicle. Refer to Lifting and Jacking the Vehicle . |
|
| 1 | Transmission Brace Bolt (Qty: 3)
CAUTION:
Refer to Fastener Caution
. Tip: Tighten all bolts in specified sequence. Tighten: 50 N.m (37 lb ft) |
| 2 | Transmission Brace |
