Seal Installation

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

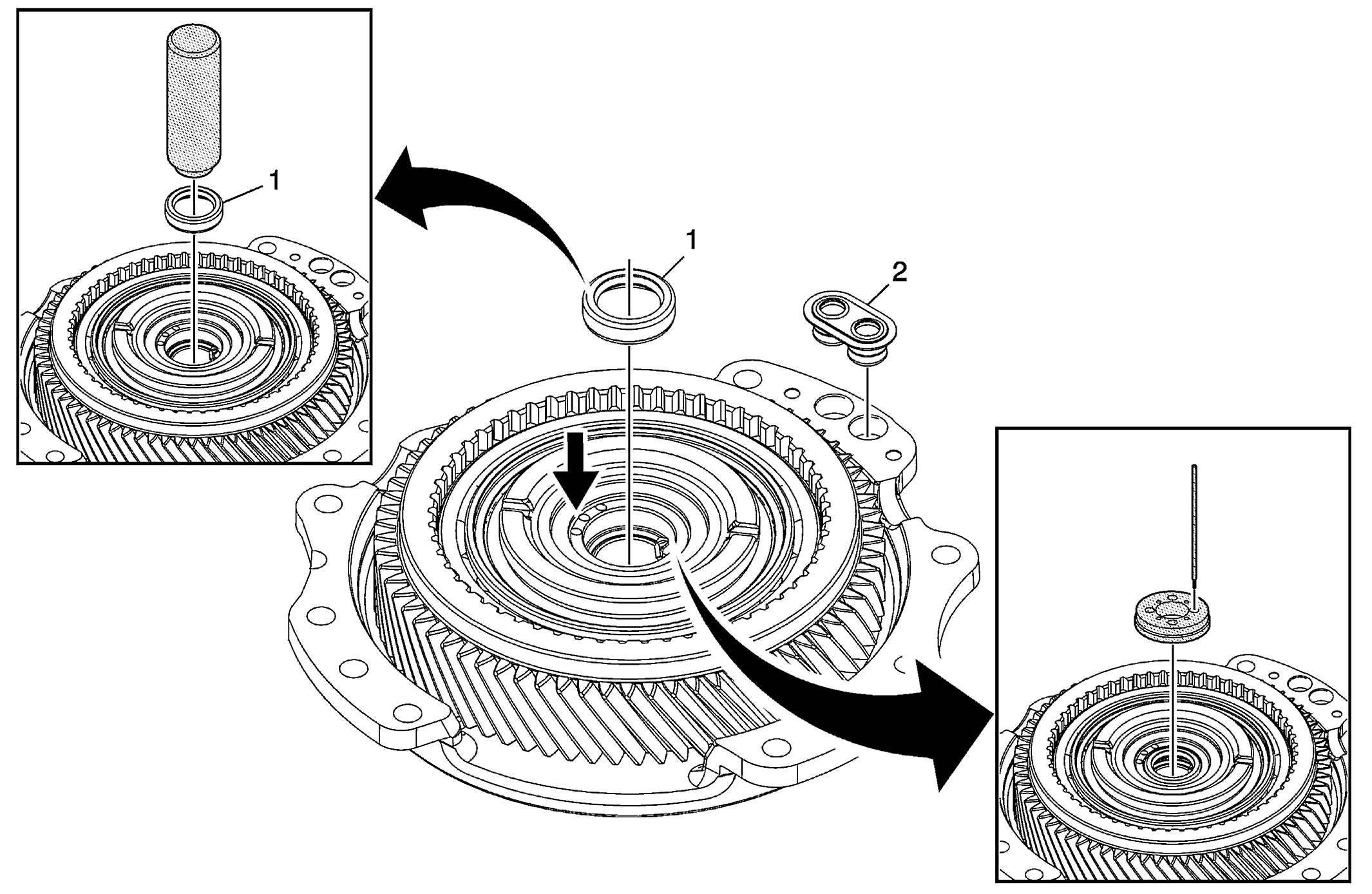

Fig 1: Installing Front Differential Transfer Drive Gear Support Seal

Courtesy of GENERAL MOTORS CORP.

Seal Installation

Callout	Component Name
1	Front Differential Transfer Drive Gear Support Seal CAUTION: Ensure staking does not line up with lubrication holes or the holes may be damaged. Stop driving the seal once it bottoms out to avoid seal damage. Tip: The fluid seal assembly must be staked in place using DT-49131: seal staking tool to ensure proper seal retention. Special Tools J-46627-A: Seal Installer DT-49131: Seal Staking Tool For equivalent regional tools, refer to Special Tools .
2	Front Differential Transfer Drive Gear Support Torque Converter Fluid Seal Assembly

Callout

Component Name

Front Differential Transfer Drive Gear Support Seal

CAUTION:

Ensure staking does not line up with lubrication holes or the holes may be damaged.
Stop driving the seal once it bottoms out to avoid seal damage.

Tip: The fluid seal assembly must be staked in place using DT-49131: seal staking tool to ensure proper seal retention.

Special Tools

J-46627-A: Seal Installer
DT-49131: Seal Staking Tool

For equivalent regional tools, refer to Special Tools .

Front Differential Transfer Drive Gear Support Torque Converter Fluid Seal Assembly
