Fluid Trough Removal
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

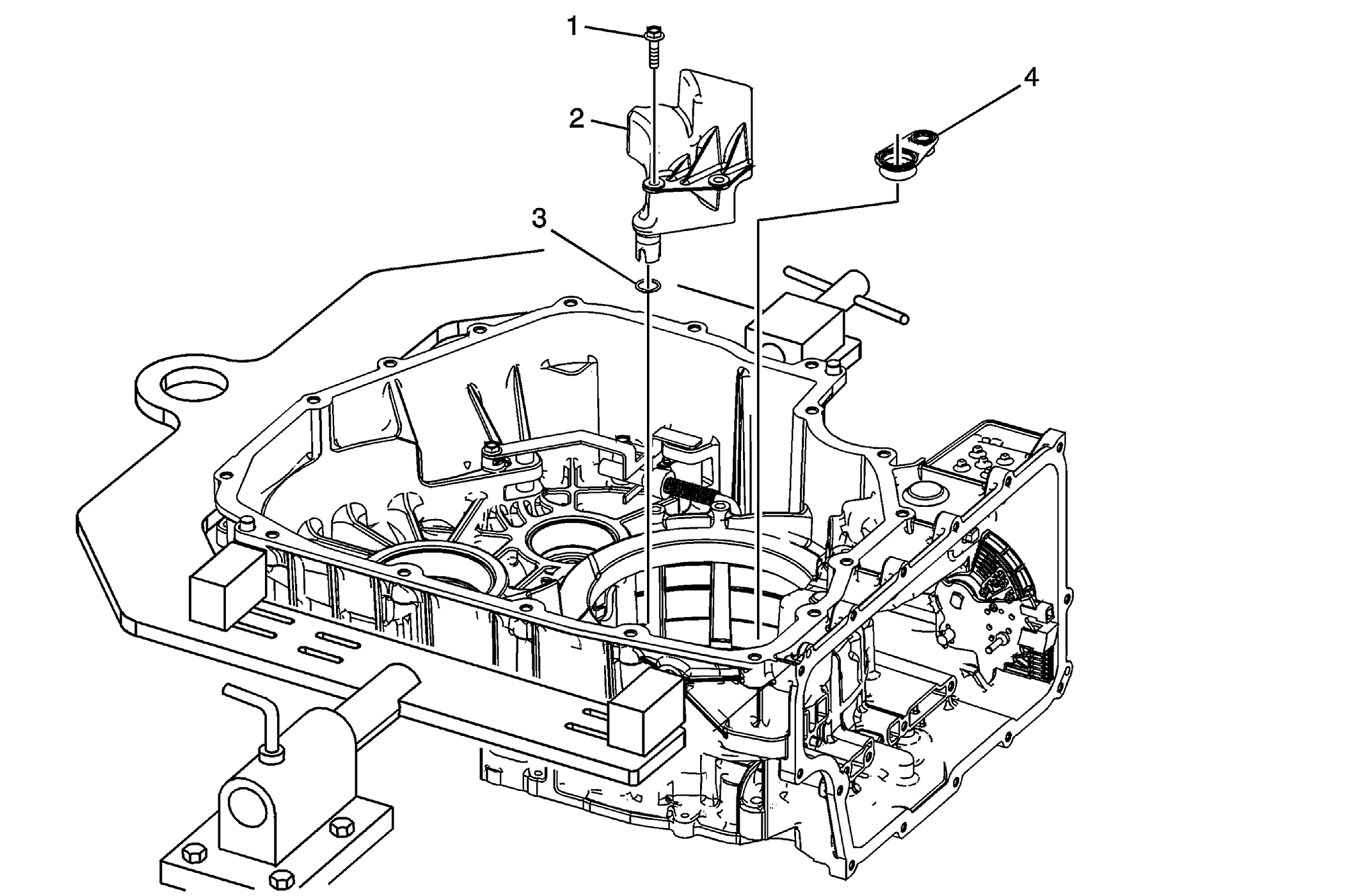

| Callout |
Component Name |
| 1 |
A/Trans Fluid Trough Bolt M6 x 25 (Qty: 1) |
| 2 |
A/Trans Fluid Trough |
| 3 |
A/Trans Fluid Trough (O-Ring) Seal |
| 4 |
A/Trans Fluid Pump Outlet Seal Assembly
Tip:
The seal assembly is not reusable. |
