Lower and Upper Body Assemble
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
Lower and Upper Body Assemble

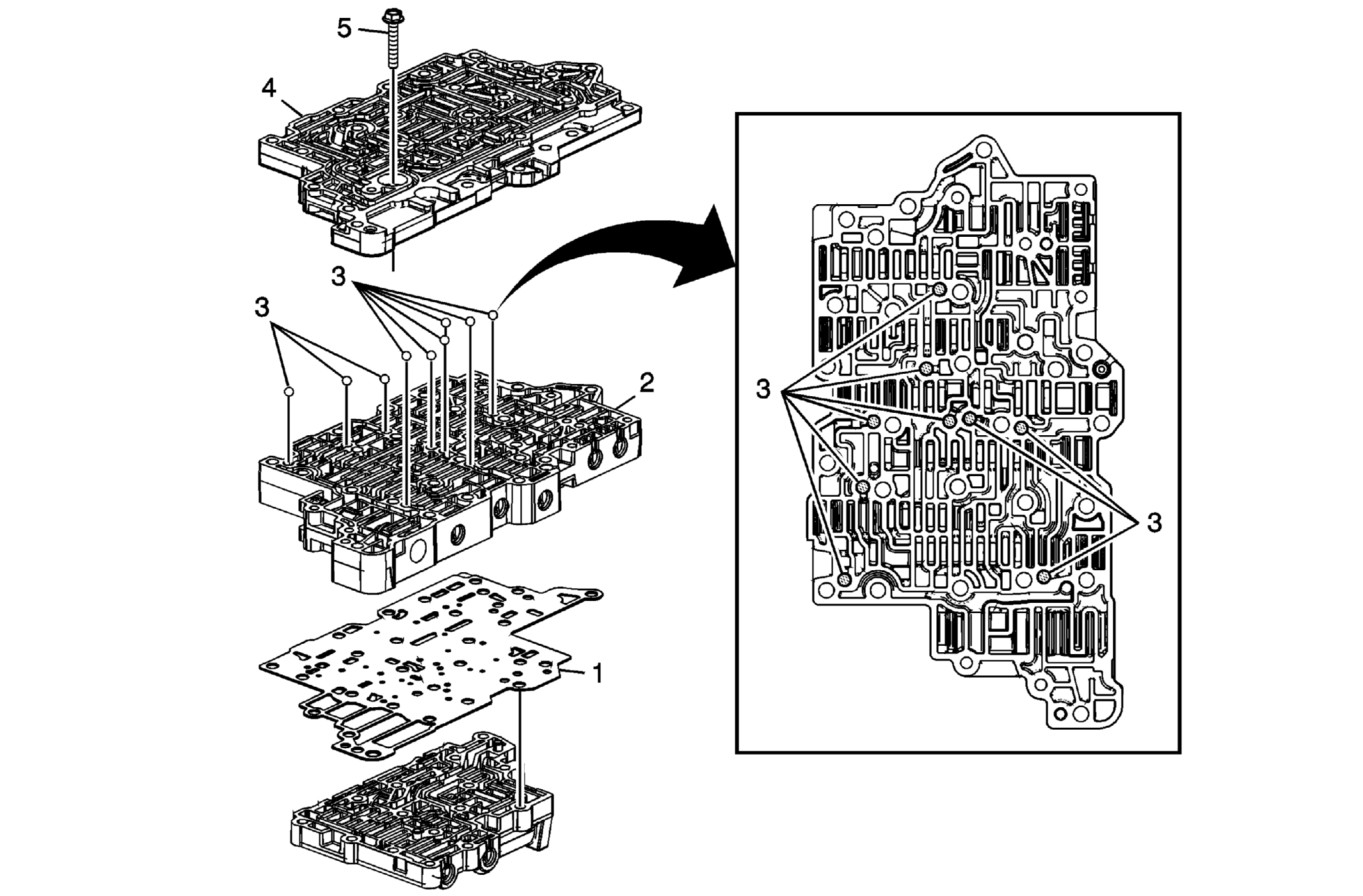

| Callout | Component Name |
|---|---|
| 1 | Control Valve Lower Body Spacer Plate Assembly Tip: Inspect the upper channel plate bolt through holes for damage or burnelling. Any damage around the PCS switch feed holes could cause leakage around the PCS switch seals. Replace as necessary. |
| 2 | Control Valve Upper Body Assembly |
| 3 | Control Valve Body Ball Check Valve (Qty: 9) |
| 4 | Control Valve Channel Plate Assembly |
| 5 | Control Valve Body Bolt 6 x 55 (Qty: 1)
CAUTION:
Refer to Fastener Caution
.
Tighten: 12 N.m (9 lb ft) |
