2-6 Clutch Plate Installation
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

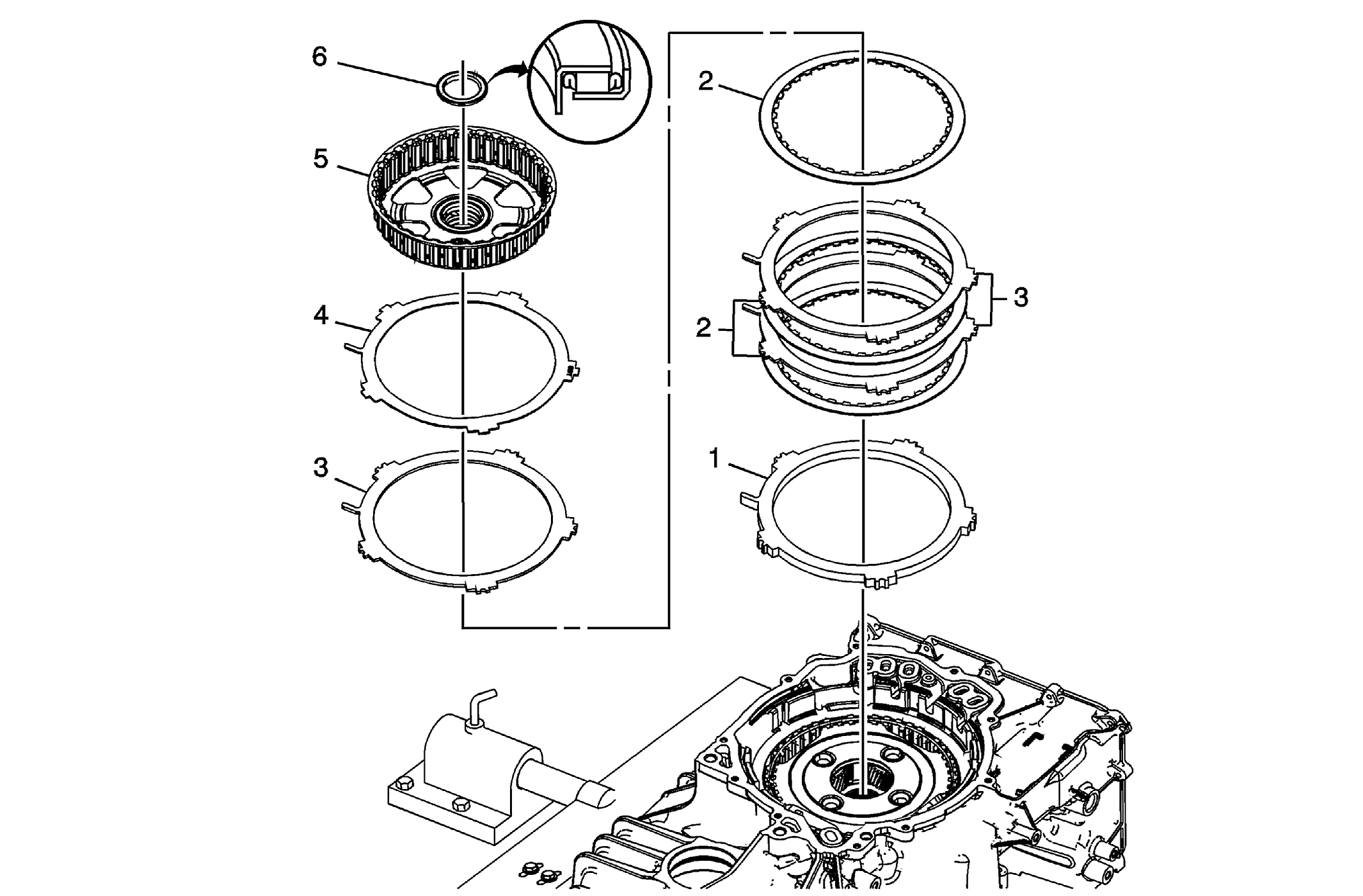

| Callout | Component Name |
|---|---|
| 1 | 2-6 Clutch Backing Plate Tip: The tab on the clutch plate faces the bottom of the case. |
| 2 | 2-6 Clutch (w/Friction Material) Plate Assembly (Qty: 3) |
| 3 | 2-6 Clutch Plate (Qty: 3) Tip: The tab on the clutch plate faces the bottom of the case. |
| 4 | 2-6 Clutch Cushion Spring |
| 5 | Reaction Sun Gear Assembly |
| 6 | 2-6 Clutch Hub Thrust Bearing Assembly Tip: Note location of the orientation lip on bearing. All thrust bearings can only be assembled one way. |
