Low and Reverse Clutch Plate Installation
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

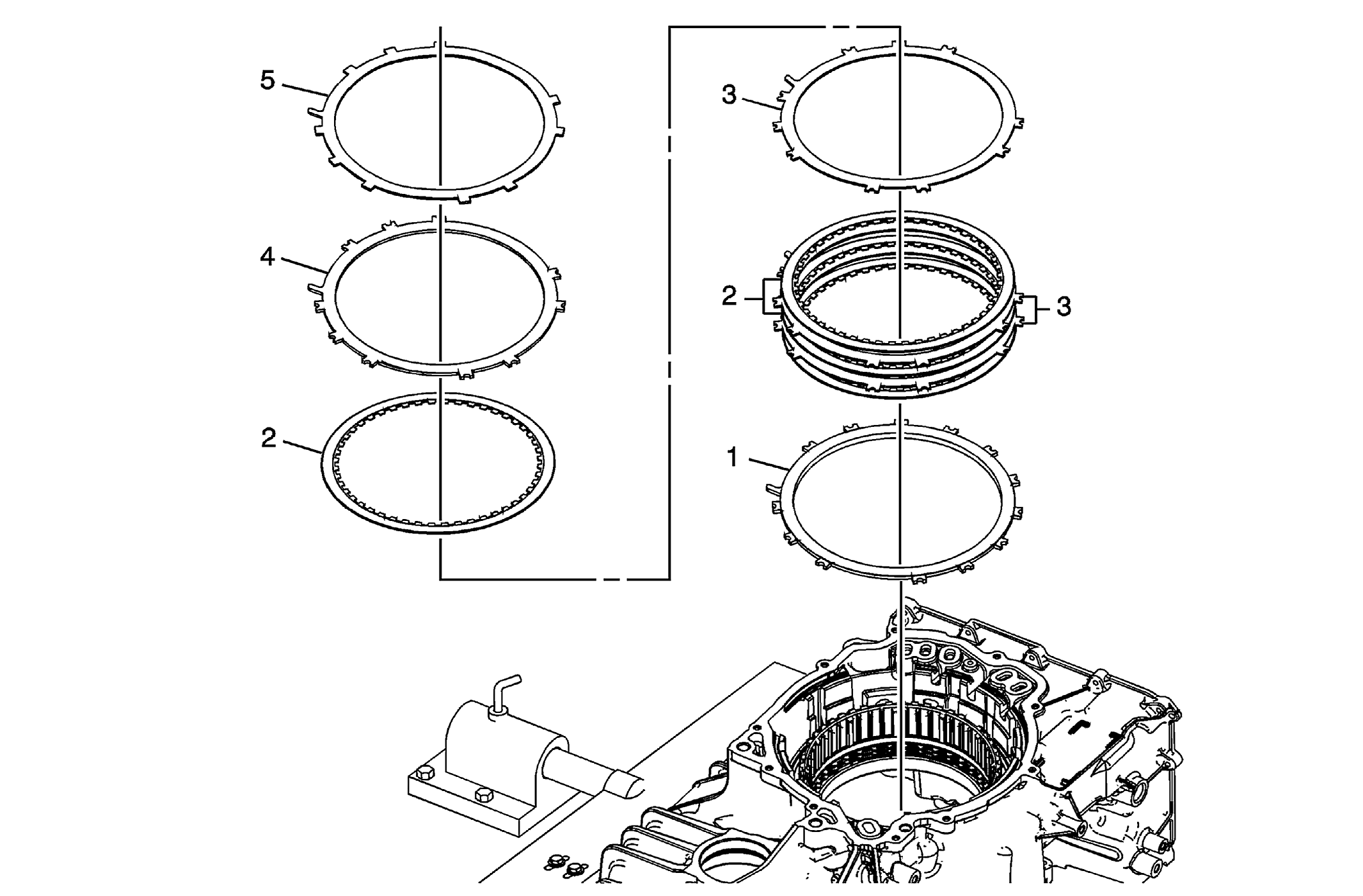

Low and Reverse Clutch Plate Installation
| Callout | Component Name |
|---|---|
| 1 | Low and Reverse Clutch Backing Plate Tip: The tab on the clutch plate faces the bottom of the case. |
| 2 | Low and Reverse Clutch (w/Friction Material) Plate Assembly (Qty: 4) |
| 3 | Low and Reverse Clutch Plate (Qty: 3) Tip: The tab on the clutch plate faces the bottom of the case. |
| 4 | Low and Reverse Clutch Apply Plate Tip: The tab on the clutch plate faces the bottom of the case. |
| 5 | Low and Reverse Clutch Cushion (Waved) Spring Tip: The tab on the clutch plate faces the bottom of the case. |
