Neutral - Engine Running - A/T System Hydraulic Diagram

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

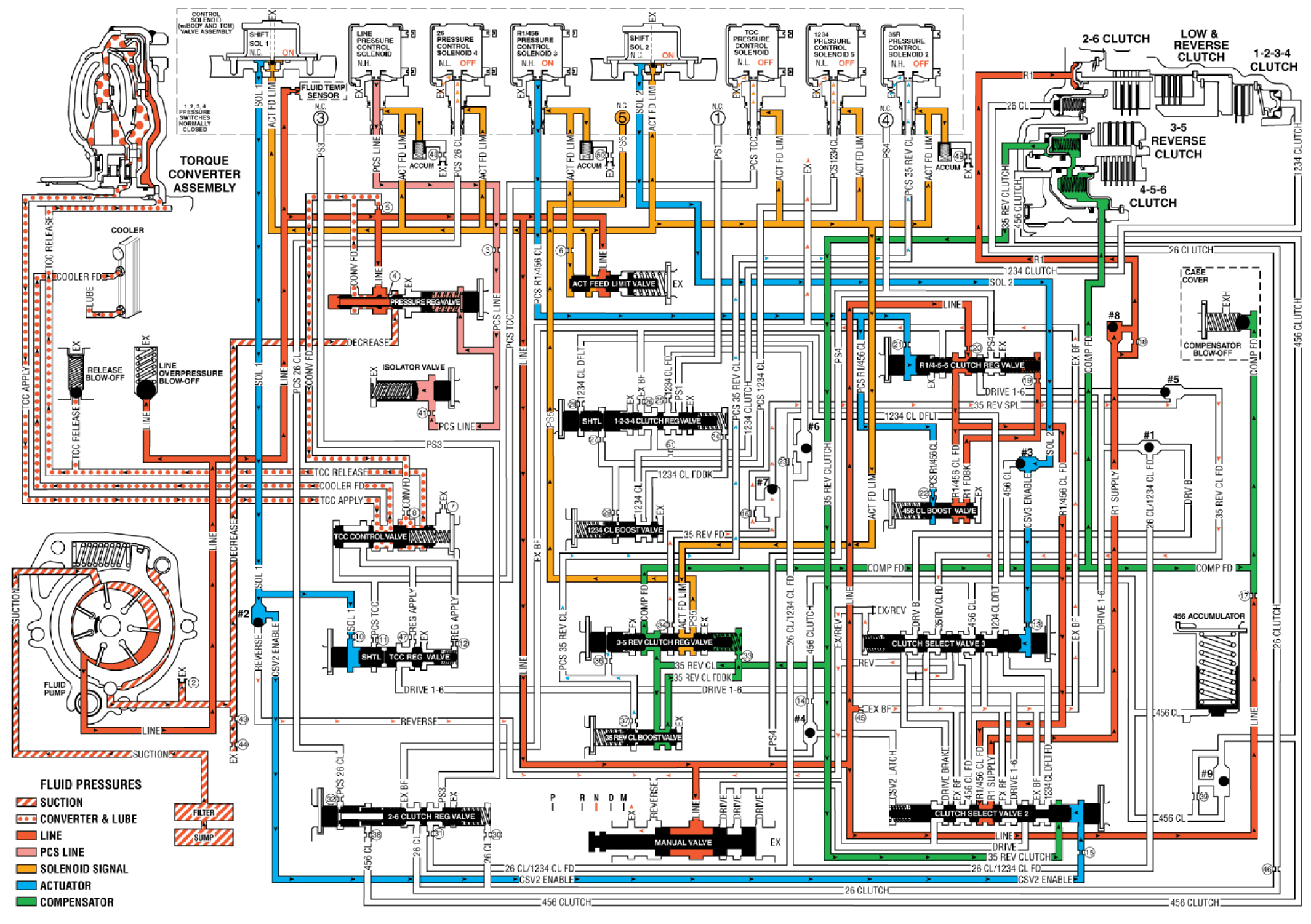

Fig 1: Identifying Fluid Flow - Neutral - Engine Running
GM1759954Courtesy of GENERAL MOTORS CORP.
