Fuel Tank Filler Pipe Housing Replacement
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

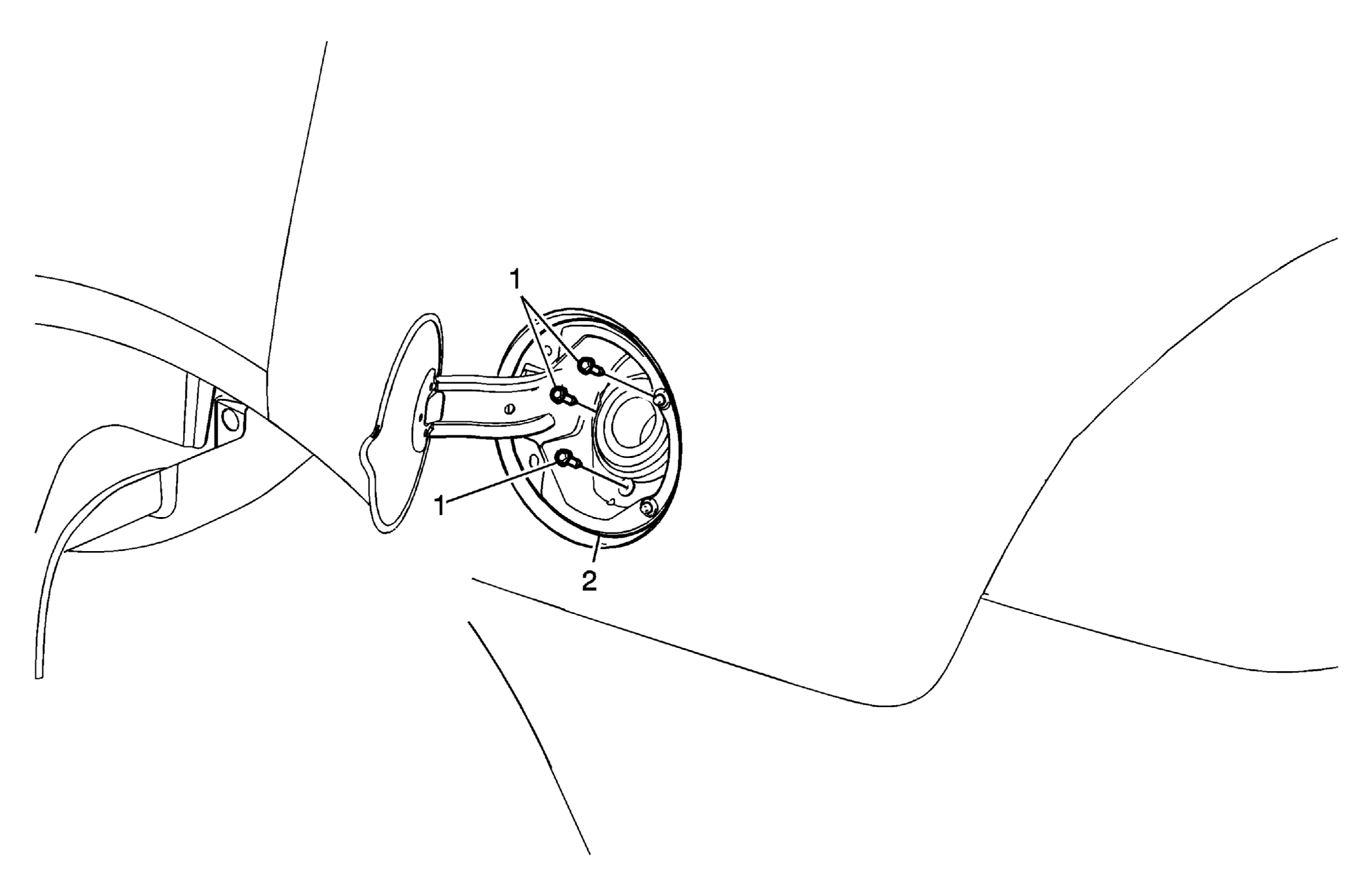

| Callout | Component Name |
|---|---|
| 1 | Fuel Filler Door Pocket Bolt (Qty: 3)
CAUTION:
Refer to Fastener Caution
. Tip: Remove fuel filler cap. Tighten: 10 N.m (89 lb in) |
| 2 | Fuel Filler Door Pocket |
