Removal Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

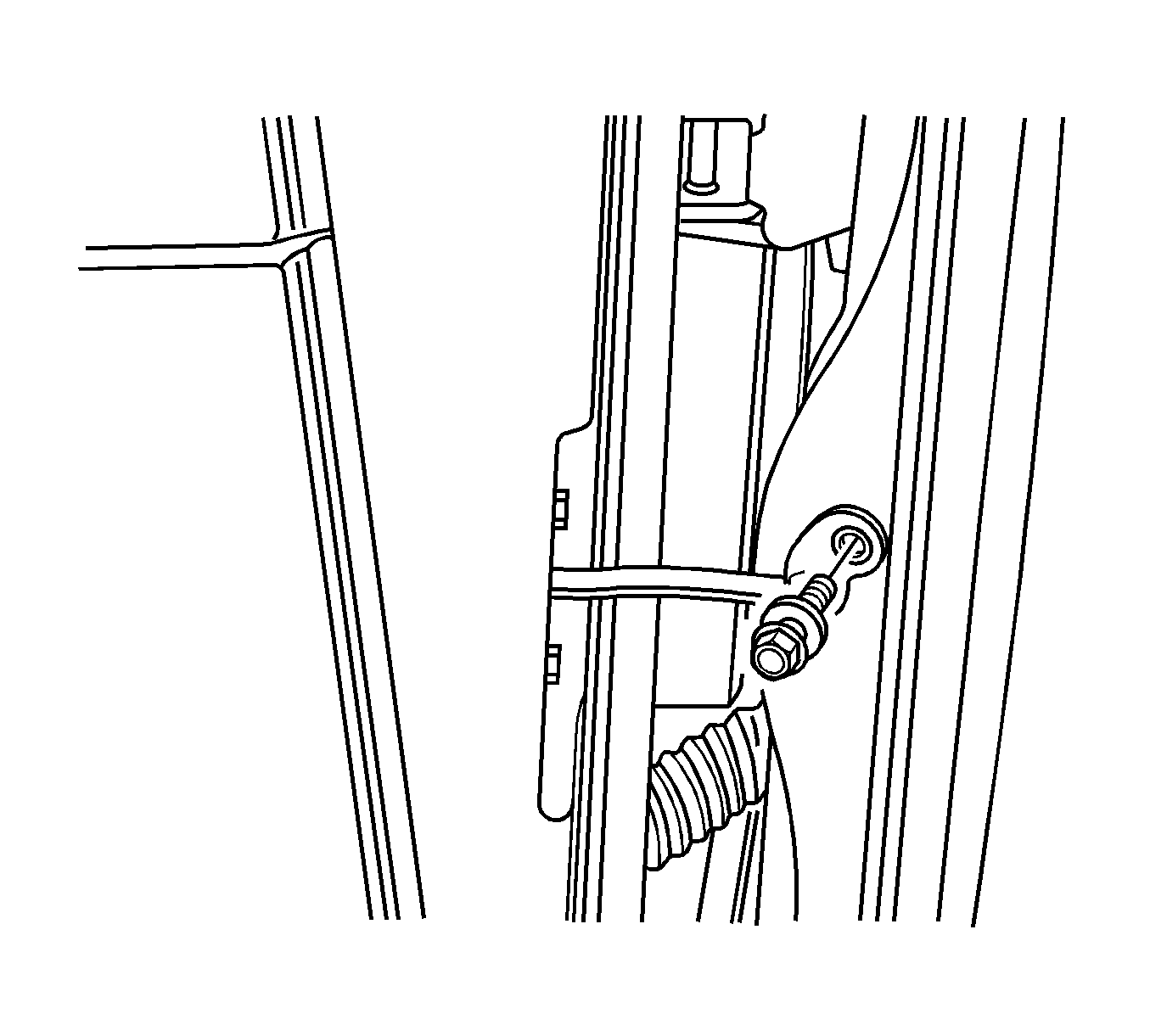

    Fig 1: Door Check Link-To-Body Bolt
    GM1758380Courtesy of GENERAL MOTORS CORP.
  1. Remove the door check link-to-body bolt.

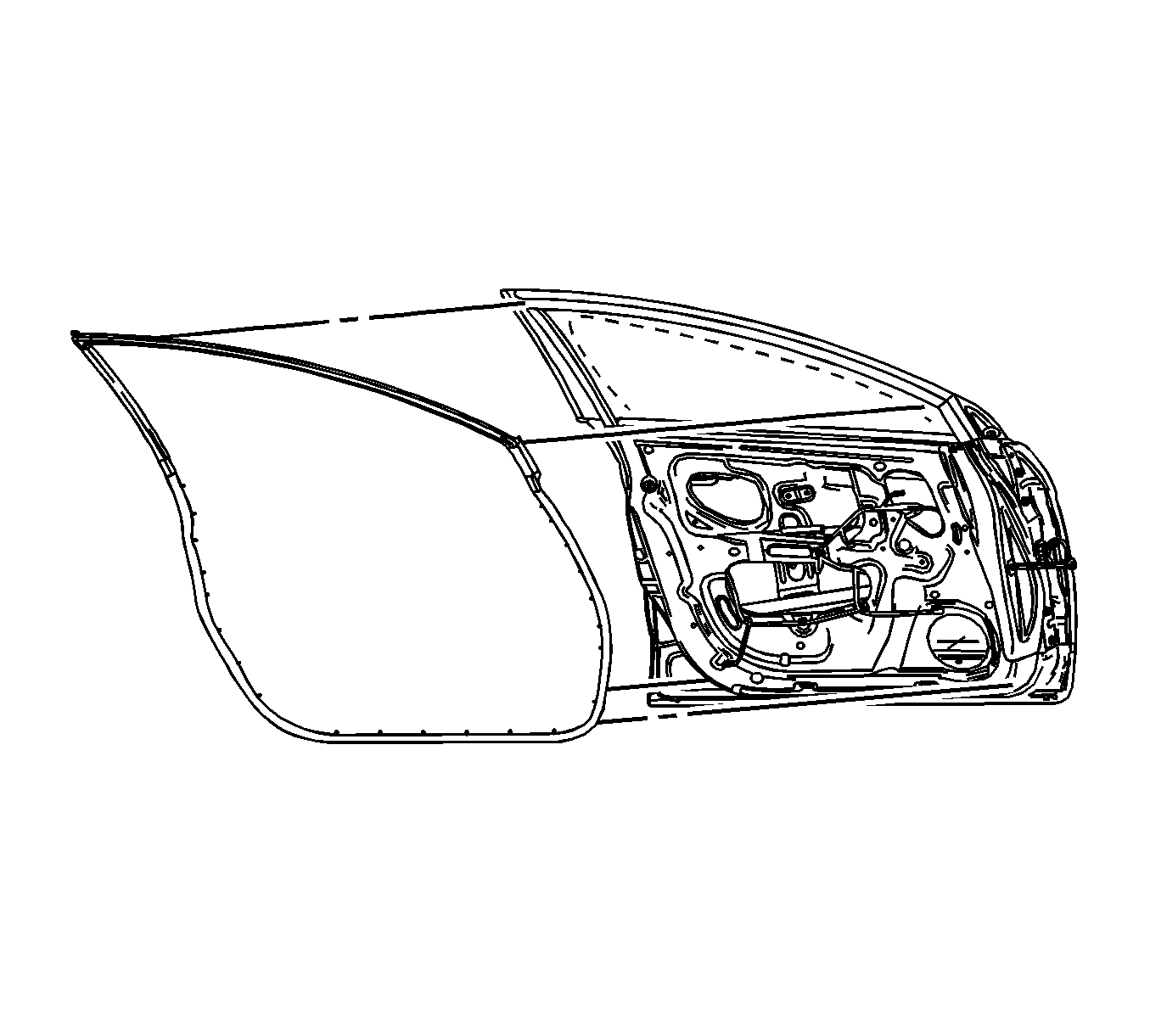

    2. Fig 2: Door Weatherstrip
    GM1758381Courtesy of GENERAL MOTORS CORP.
  2. Remove the door weatherstrip.
