Suction Hose Replacement (HP5)

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

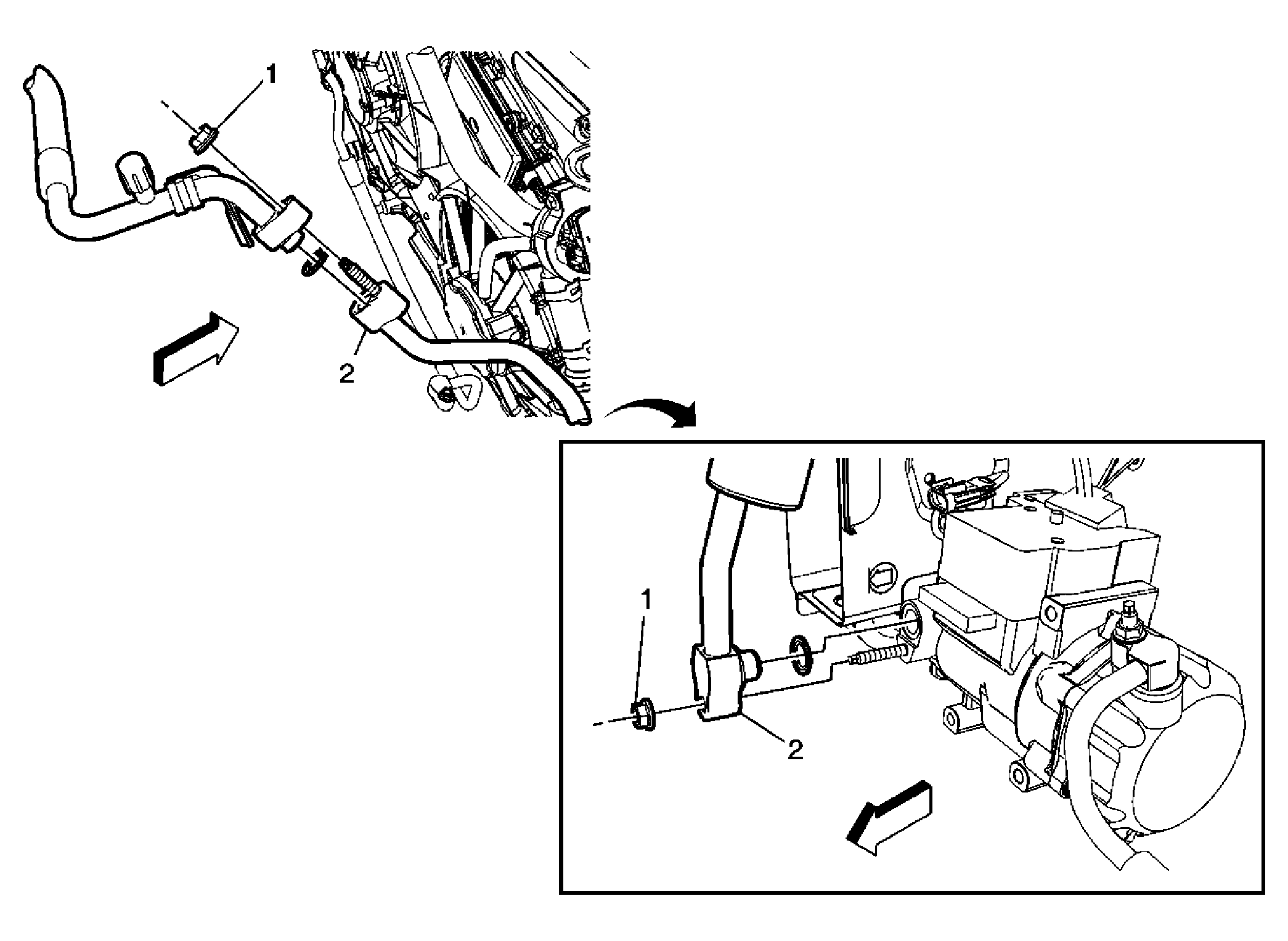

Fig 1: Suction Hose

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Recover the refrigerant. Refer to Refrigerant Recovery and Recharging (With HP5) or Refrigerant Recovery and Recharging (Without HP5) . Raise and support the vehicle as necessary. Refer to Lifting and Jacking the Vehicle .
1	A/C Suction Line Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 16 N.m (12 lb ft)
2	A/C Suction Line. Procedure Ensure to cap all HVAC line/hose connections immediately after removal to avoid contamination. Refer to Handling of Refrigerant Lines and Fittings . Relocate any wiring or fasteners as necessary. Rotate the suction line to gain clearance for removal. Install new sealing washers. Refer to Air Conditioning System Seal Replacement

Callout

Component Name

Preliminary Procedures

Recover the refrigerant. Refer to Refrigerant Recovery and Recharging (With HP5) or Refrigerant Recovery and Recharging (Without HP5) .
Raise and support the vehicle as necessary. Refer to Lifting and Jacking the Vehicle .

A/C Suction Line Fastener (Qty: 2)

CAUTION: Refer to Fastener Caution .

Tighten: 16 N.m (12 lb ft)

A/C Suction Line.

Procedure

Ensure to cap all HVAC line/hose connections immediately after removal to avoid contamination. Refer to Handling of Refrigerant Lines and Fittings .
Relocate any wiring or fasteners as necessary.
Rotate the suction line to gain clearance for removal.
Install new sealing washers. Refer to Air Conditioning System Seal Replacement
