Side Window Defogger Outlet Duct Replacement - Right Side

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

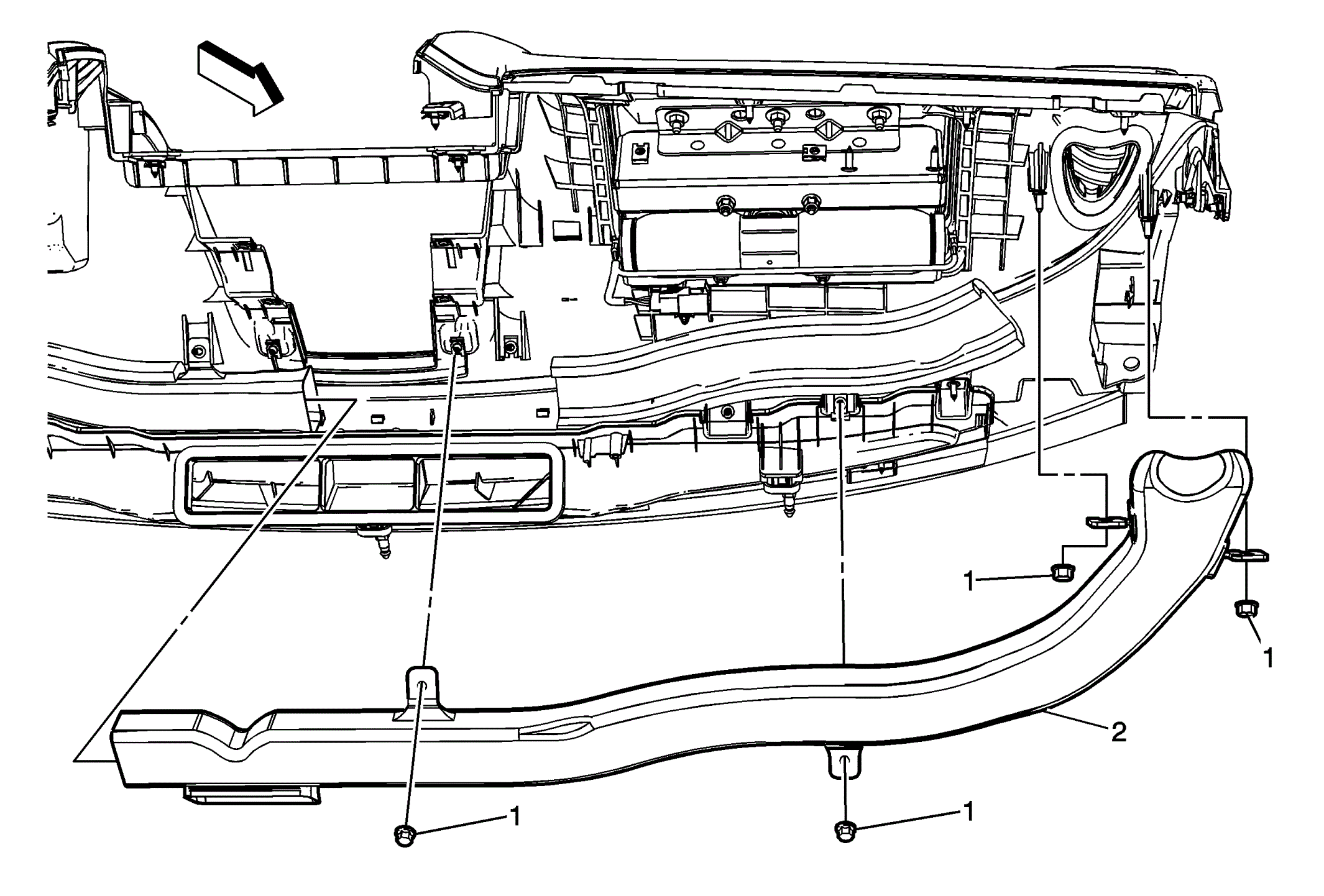

Fig 1: Right Side Window Defogger Outlet Duct

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove I/P trim panel. Refer to Instrument Panel Trim Panel Replacement . Disconnect any electrical connections. Invert I/P assembly to access defogger duct.
1	Side Window Defogger Outlet Duct - Right Side Nut (Qty: 4)
2	Side Window Defogger Outlet Duct - Right Side Tip: Ensure all air duct seals are secure upon installation.

Callout

Component Name

Preliminary Procedure

Remove I/P trim panel. Refer to Instrument Panel Trim Panel Replacement .
Disconnect any electrical connections.
Invert I/P assembly to access defogger duct.

Side Window Defogger Outlet Duct - Right Side Nut (Qty: 4)

Side Window Defogger Outlet Duct - Right Side
Tip: Ensure all air duct seals are secure upon installation.
