Test Description

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. 1:  This step determines if the A/C system has at least the minimum refrigerant charge required to operate the system without damage.
  2. 2:  This step measures the performance of the A/C system.
  3. 3:  This step is to allow for vehicle variations as well as high ambient temperatures.
Step Action Values Yes No
IMPORTANT:
  • The ambient air temperature must be at least 16°C (60°F).
  • Do not induce additional air flow across the front of the vehicle during the test.
  • If you were sent here from a DTC diagnostic table, clear the DTC upon completion of this test.
1
  1. Park the vehicle inside or in the shade.
  2. Open the windows in order to ventilate the interior of the vehicle.
  3. If the A/C system was operating, allow the A/C system to equalize for about 2 minutes.
  4. Turn OFF the ignition.
  5. Install the J 43600  ACR 2000 Air Conditioning Service Center. See Special Tools .
  6. Record the ambient air temperature displayed on the J 43600  . See Special Tools .
  7. Record the low and high side STATIC pressure readings.
Are both the low side and high side pressures within the specified value?		 More than 16°C (60°F) - 345 kPa (50 psi)
More than 24°C (75°F) - 483 kPa (70 psi)
More than 33°C (90°F) - 690 kPa (100 psi)		 Go to Step 2  Go to Leak Testing (With HP5)  or Leak Testing (Without HP5)
2
    IMPORTANT: Record the relative humidity and the ambient air temperature at the time of the test.
  1. Close the vehicle doors and windows.
  2. Open the driver door window 12.7-15.2 cm (5-6 in).
  3. Select the following HVAC control settings:
    • The A/C is ON.
    • The coldest temperature setting
    • The maximum blower speed
    • Recirculation mode
    • The instrument panel (I/P) outlet mode
    • All I/P outlets are OPEN
  4. Install the temperature probes of the J 43600  in the left and right center panel air outlets. See Special Tools .
  5. Apply the parking brake.
  6. Place the transaxle/transmission in one of the following positions:
    • PARK (Automatic)
    • NEUTRAL (Manual)
  7. Start the engine.
  8. Operate the A/C system for 5 minutes.
  9. Inspect A/C components for the following conditions:
    • Abnormal frost areas
    • Unusual noises
    10. IMPORTANT: Press the RESET button, before using the print function of the J 43600  . See Special Tools .
  10. Print the following information:
    • The panel outlet air temperatures
    • The low-side pressure
    • The high-side pressure
  11. Compare the low and high side pressures and the panel output temperatures to the A/C performance table below.
Does all the data recorded fall within the specified ranges of the A/C Performance Table?		 - Go to Step 8  Go to Step 3
3  If the pressures and temperatures recorded do not fall within the specified ranges:
  1. Continue to operate the A/C system for an additional 5 minutes.
  2. RESET the J 43600  and record the pressures and temperatures again. See Special Tools .
  3. Compare the low and high side pressures and the panel output temperature to the A/C Performance Table.

Does all the data recorded fall within the specified ranges of the A/C Performance Table?		 - Go to Step 8  Go to Step 4
4 Do the high and low side pressures fall within the specified ranges, but the panel outlet temperatures do not? - Go to Air Conditioning (A/C) Diagnostics - Pressure Zone A (with HP5)  or Air Conditioning (A/C) Diagnostics - Pressure Zone A (without HP5)  Go to Step 5
5 Is the low side pressure greater than the specified range, but the high side pressure within or less than the specified range? - Go to Air Conditioning (A/C) Diagnostics - Pressure Zone B  Go to Step 6
6 Are the low and high side pressures both greater than the specified ranges? - Go to Air Conditioning (A/C) Diagnostics - Pressure Zone C  Go to Step 7
7 Is the high side pressure greater than the specified range, but the low side pressure is within or less than the specified range? - Go to Air Conditioning (A/C) Diagnostics - Pressure Zone D (without HP5)  or Air Conditioning (A/C) Diagnostics - Pressure Zone D (with HP5)  Go to Step 8
8 Operate the system in order to verify the test results.
Did you find the same results?		 - System OK Go to Symptoms - HVAC Systems - Manual

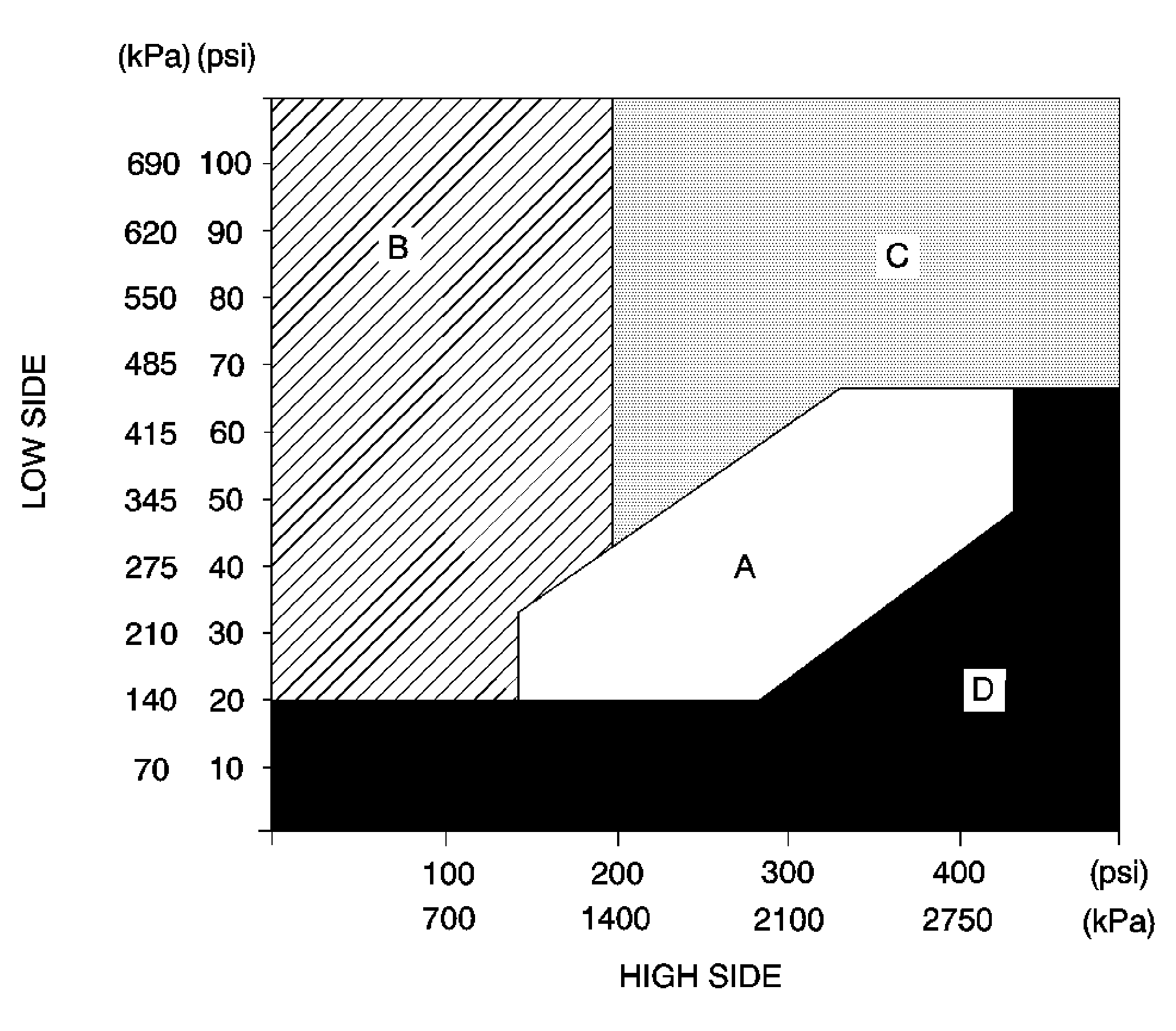

Fig 1: A/C System Pressure - Zone Classification
GM1938469Courtesy of GENERAL MOTORS CORP.
A/C Performance Table

Ambient Temperature Relative Humidity Low Side Service Port Pressure High Side Service Port Pressure Maximum Left Center Discharge Air Temperature
13-18°C (55-65°F) 0-100% 151-186 kPa (22-27 psi) 1088-1570 kPa (158-228 psi) 8°C (46°F)
19-24°C (66-75°F) Below 40% 151-241 kPa (22-35 psi) 1198-1688 kPa (174-245 psi) 9°C (48°F)
Above 40% 151-254 kPa (22-37 psi) 1329-1853 kPa (193-269 psi) 13°C (55°F)
25-29°C (76-85°F) Below 35% 192-282 kPa (22-37 psi) 1446-1901 kPa (210-276 psi) 13°C (54°F)
35-50% 199-289 kPa (29-42 psi) 1591-1956 kPa (231-284 psi) 14°C (57°F)
Above 50% 206-310 kPa (35-45 psi) 1646-2080 kPa (239-302 psi) 18°C (63°F)
30-35°C (86-95°F) Below 30% 227-323 kPa (33-47 psi) 1750-2170 kPa (254-315 psi) 17°C (61°F)
30-50% 241-344 kPa (35-50 psi) 1812-2253 kPa (263-327 psi) 18°C (64°F)
Above 50% 248-372 kPa (36-54 psi) 1880-2363 kPa (273-343 psi) 23°C (72°F)
36-41°C (96-105°F) Below 20% 268-358 kPa (39-52 psi) 2011-2480 kPa (292-360 psi) 19°C (66°F)
20-40% 275-385 kPa (40-56 psi) 2053-2487 kPa (298-361 psi) 23°C (72°F)
Above 40% 296-413 kPa (43-60 psi) 2129-2569 kPa (309-373 psi) 24°C (75°F)
42-46°C (106-115°F) Below 20% 310-399 kPa (45-58 psi) 2301-2652 kPa (334-385 psi) 23°C (73°F)
Above 20% 316-427 kPa (46-62 psi) 2328-2728 kPa (338-396 psi) 25°C (77°F)
47-49°C (116-120°F) Below 30% 358-454 kPa (52-66 psi) 2569-2921 kPa (373-424 psi) 28°C (82°F)
