Rear Seat Cushion Bracket Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

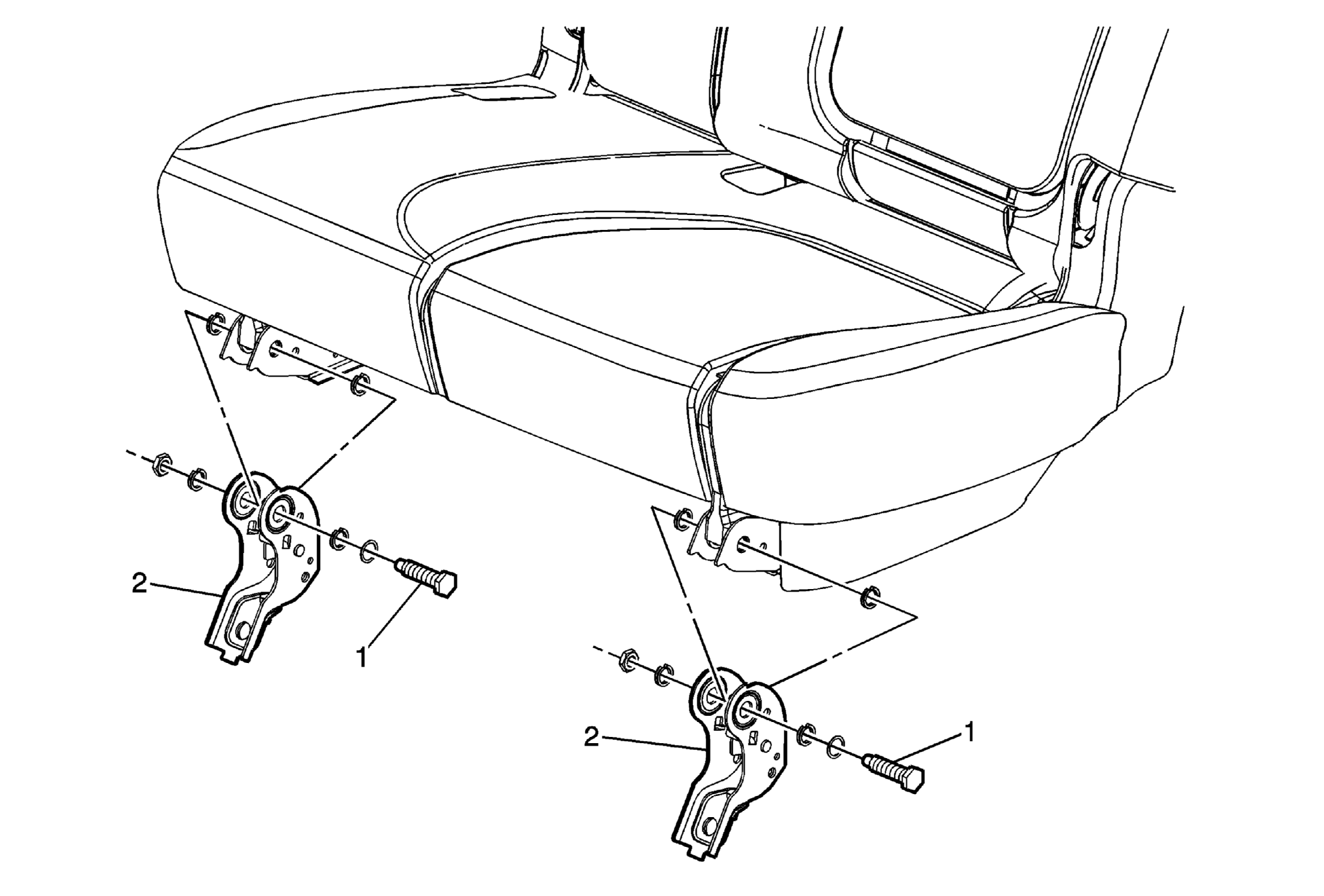

Fig 1: Rear Seat Cushion Bracket
GM2194837Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the rear seat. Refer to Rear Seat Replacement .
1 Rear Seat Cushion Bracket Bolt (Qty: 2)
CAUTION: Refer to Fastener Caution .

Tighten:  45 N.m (33 lb ft)
2 Rear Seat Cushion Bracket
