Rear Seat Back Cushion Frame Replacement (with 60 Percent Seat)

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

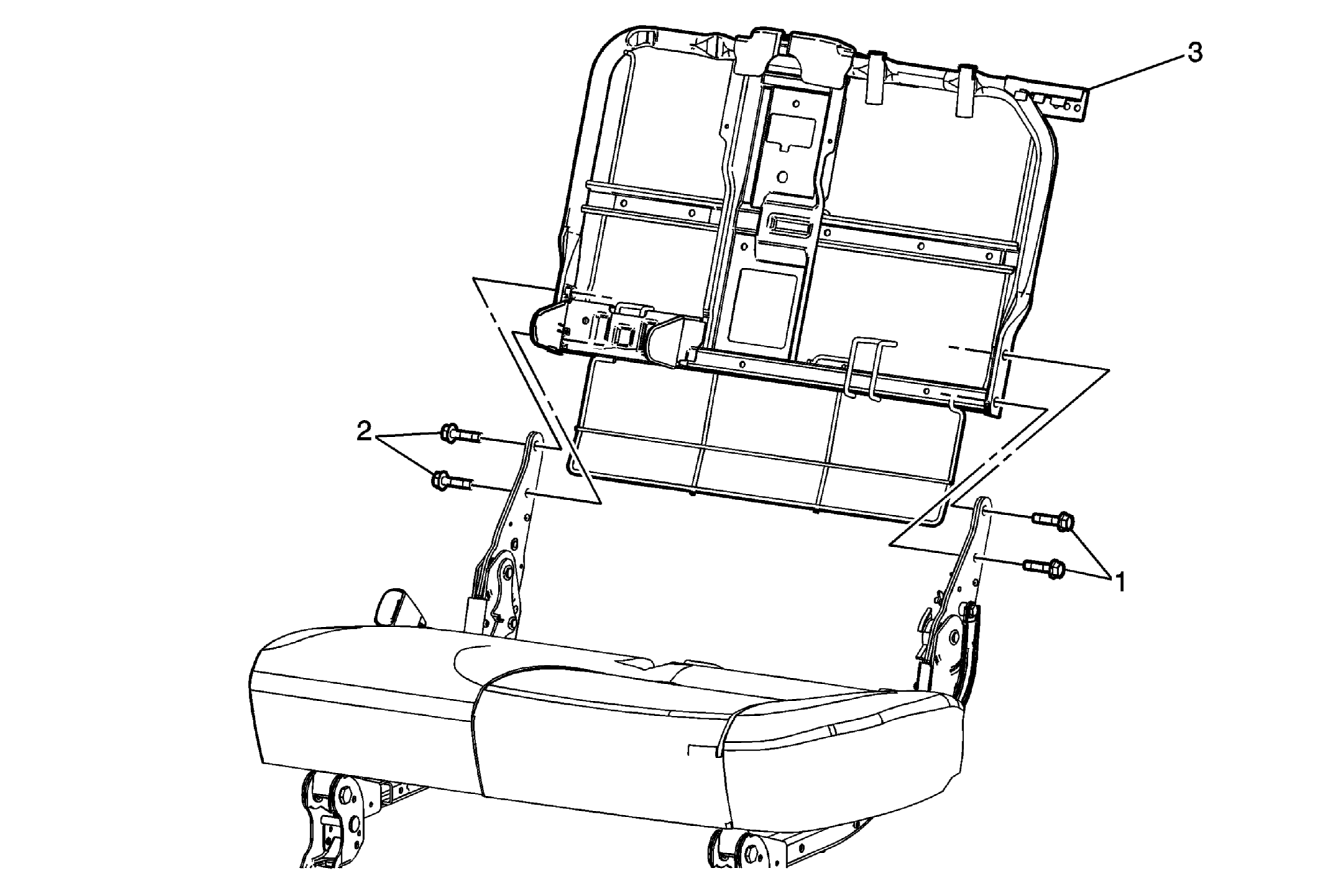

Fig 1: Rear Seat Back Cushion Frame

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the rear seat. Refer to Rear Seat Replacement . Remove the rear seat back cover and pad. Refer to Rear Seat Back Cushion Cover and Pad Replacement (with 60 Percent Seat) or Rear Seat Back Cushion Cover and Pad Replacement (with 40 Percent Seat) . Remove the rear seat back latch release handle assembly. Refer to Rear Seat Back Cushion Latch Release Handle Replacement (with 40 Percent Seat) or Rear Seat Back Cushion Latch Release Handle Replacement (with 60 Percent Seat) .
1	Rear Seat Back Cushion Frame Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 45 N.m (33 lb ft)
2	Rear Seat Back Cushion Frame Bolt (Qty: 2) Tighten: 45 N.m (33 lb ft)
3	Rear Seat Back Cushion Frame
